1 Meter DC5V Full Color WS2812B LED Strip Black / White PCB Board RGB Smart Pixel Control

Price:

11.52


5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
1.06
1.06
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
5.13
5.13

1 Meter DC5V Full Color WS2812B LED Strip Black / White PCB Board RGB Smart Pixel Control

https://www.satistronix.com/web/image/product.template/2195/image_1920?unique=99581fd
(0 review)

3.22 3.22 USD 3.22

¥ 23.35

Not Available For Sale


  • Finish
  • Waterproof
  • LED Quantity

This combination does not exist.


Categories :
Rigid LED Light Bars
SKU :
2044269
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Description:

  • LED Type: 5050SMD with IC WS2812

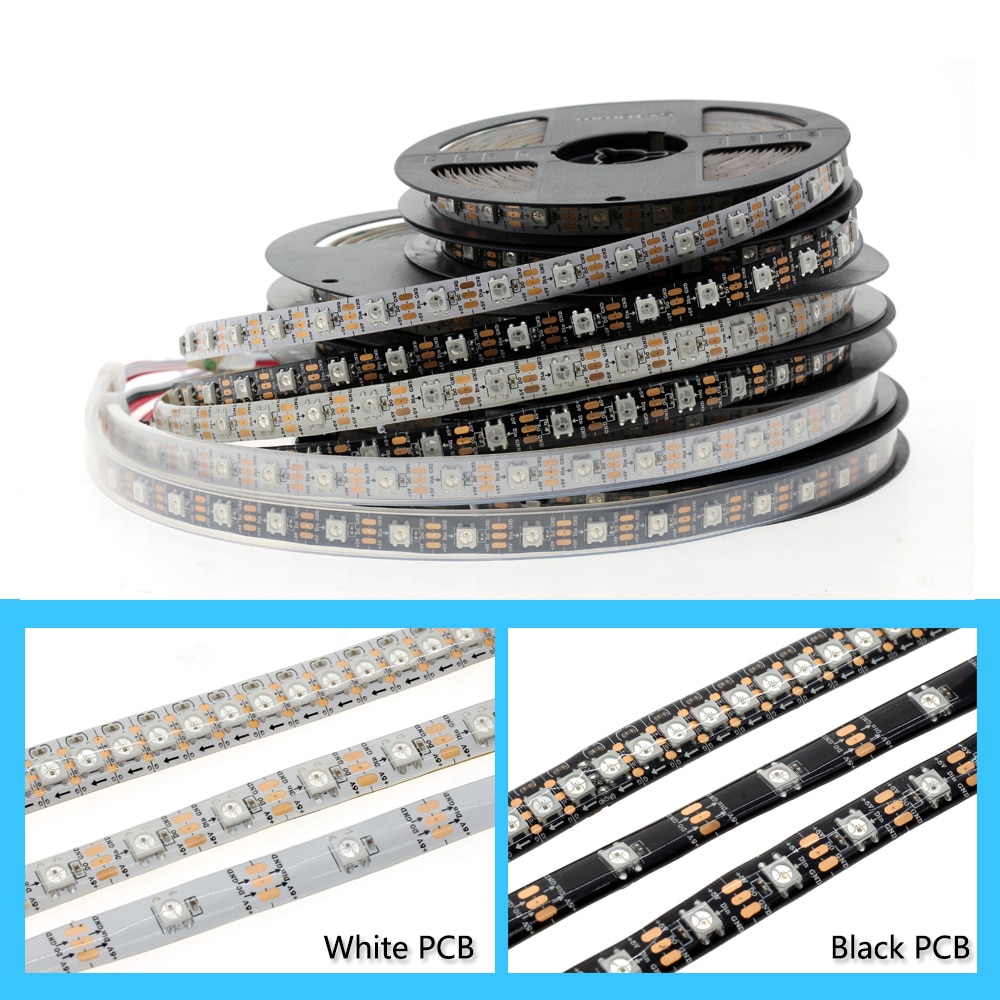

  • PCB color:White PCB / Black PCB

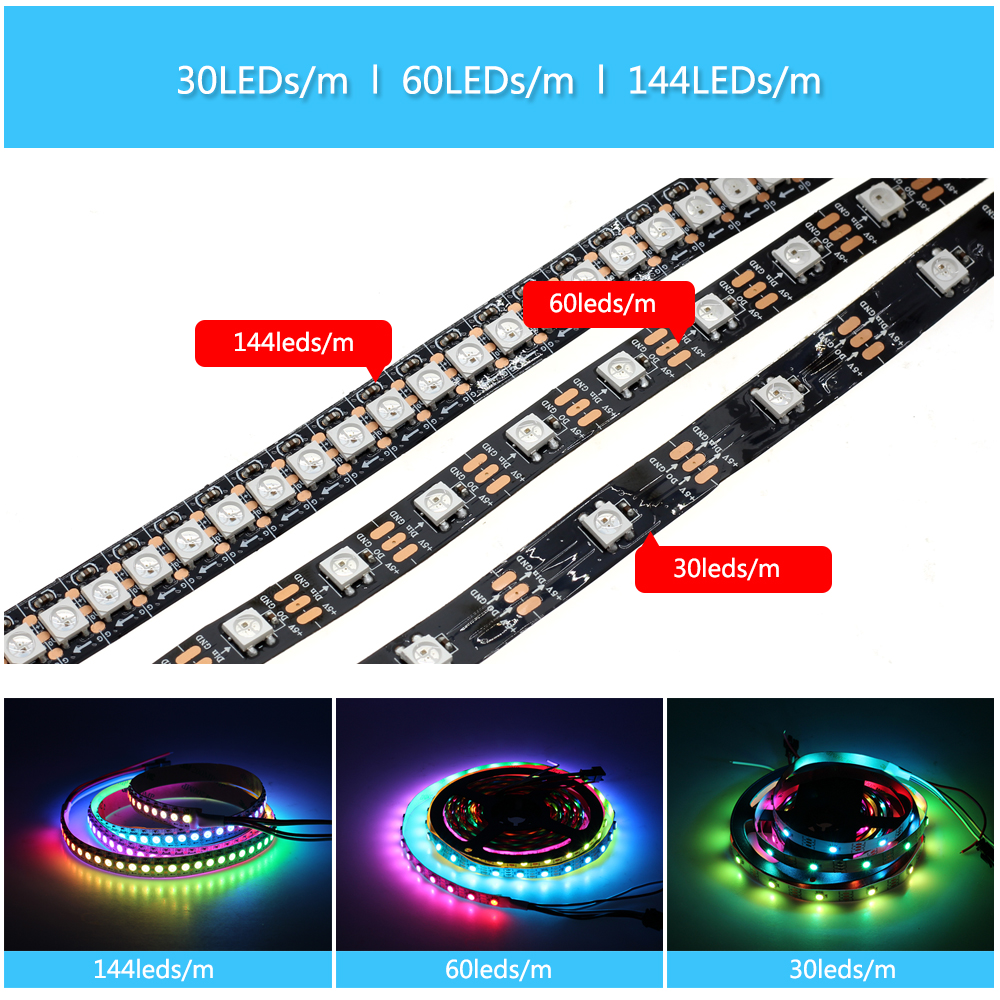

  • LED numbers:30LEDs/m,60LEDs/m,144LEDs/m,

  • Strip Length:1m/2m/3m/5m

Options:

  • 144LED 1M(1m*144LED/m)

  • 30LED 1M(1m*30LED/m)         30LED 2M(2m*30LED/m)

  • 30LED 3M(3m*30LED/m)         30LED 5M(5m*30LED/m)

  • 60LED 1M(1m*60LED/m)         60LED 2M(2m*60LED/m)

  • 60LED 3M(3m*60LED/m)         60LED 5M(5m*60LED/m)

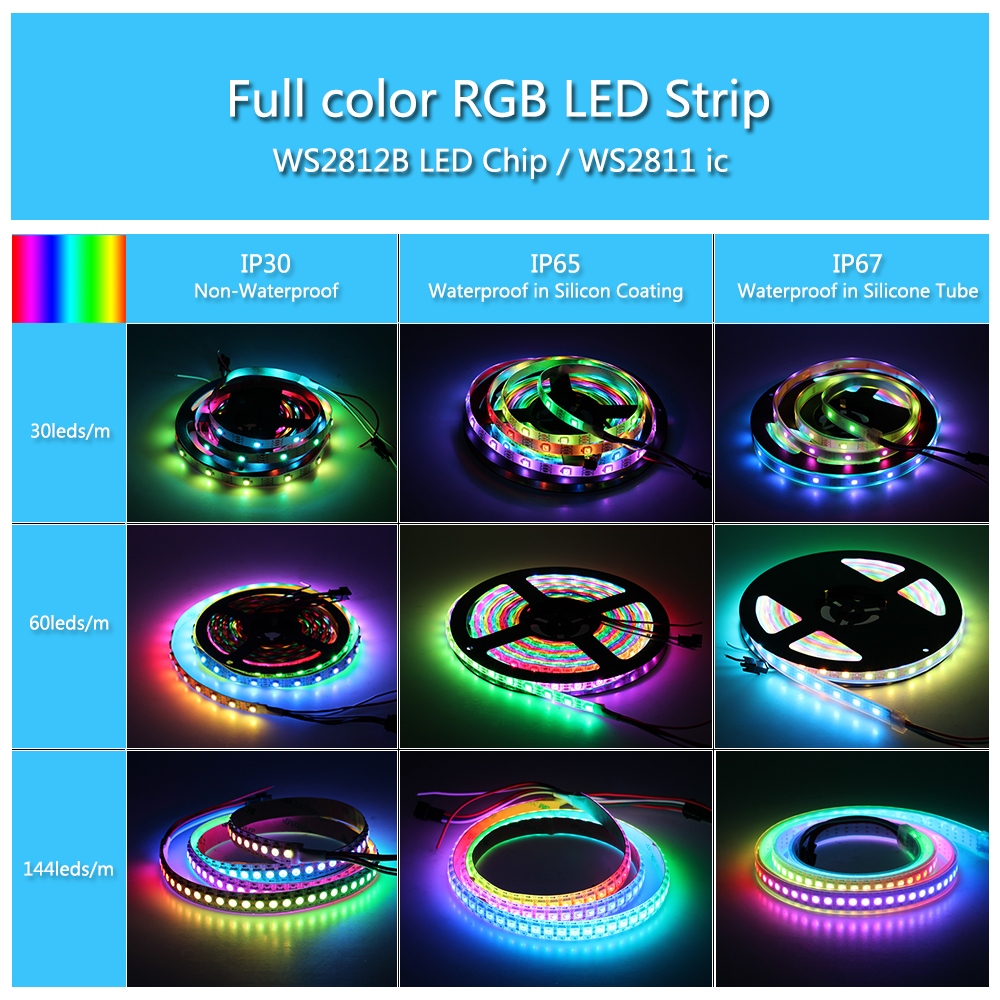

Waterproof Protection class :

   IP30 No Waterproof

   IP65 Waterproof in Silicon Coating

   IP67 Waterproof in Silicone Tube

PCB Width:

   30leds/m strip ----10mm

   60leds/m strip ----10mm

   144leds/m strip ----12mm

LED resource:

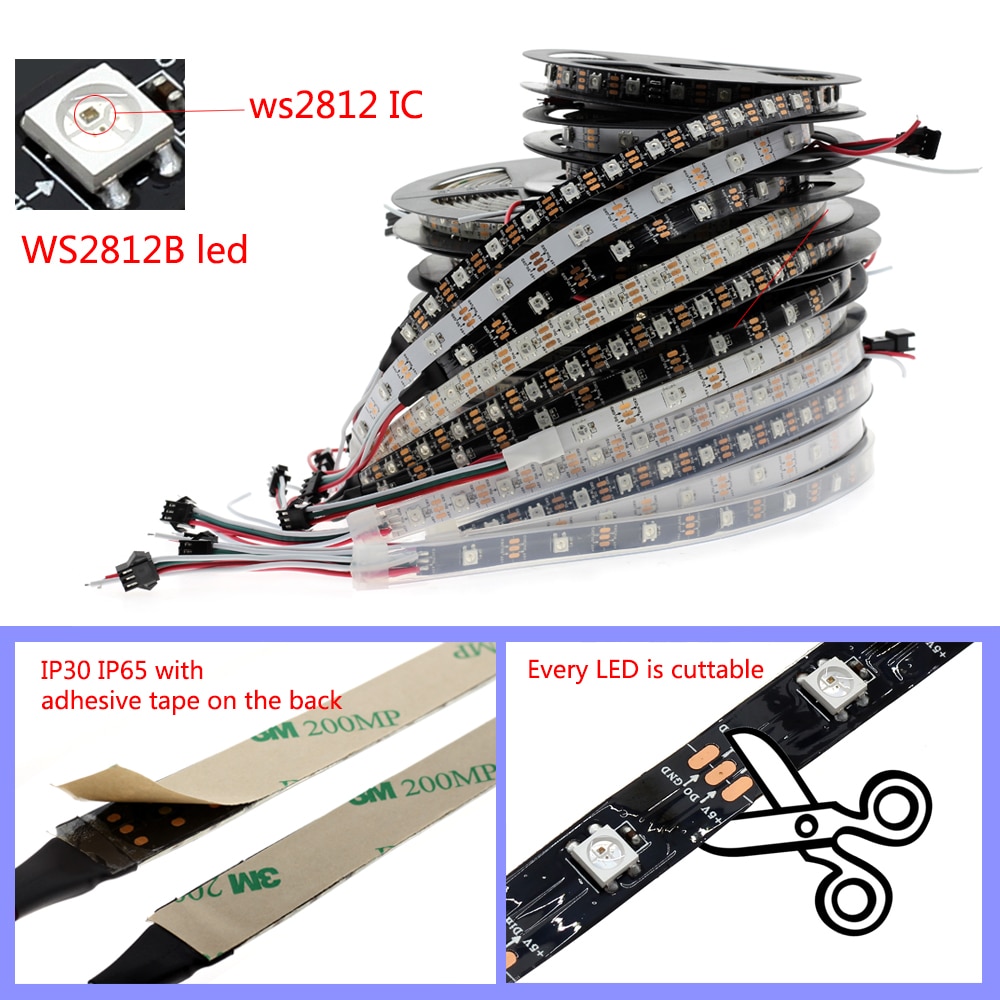

  • WS2812B led(5050 SMD RGB LED with built-in improved version of ws2812 ic)

  • LED:each LED is separately controlled

  • IC Type: improved version ws2812 IC(built inside the 5050 smd rgb led)

  • of IC: (1 IC drives 1 led chip);

  • Operating voltage:DC 5V

  • Operating temperature: -20 to 50 °

  • Viewing Angle: 120 °

  • IP30/IP65 Strip Have Double side Adhesive Tape On The Back

  •      Ip67 Strip has not Double Adhesive on the Back

  • Installation Surface Must Be Smooth, Clean And Dry.

  • Cuttable:every LED is cuttable

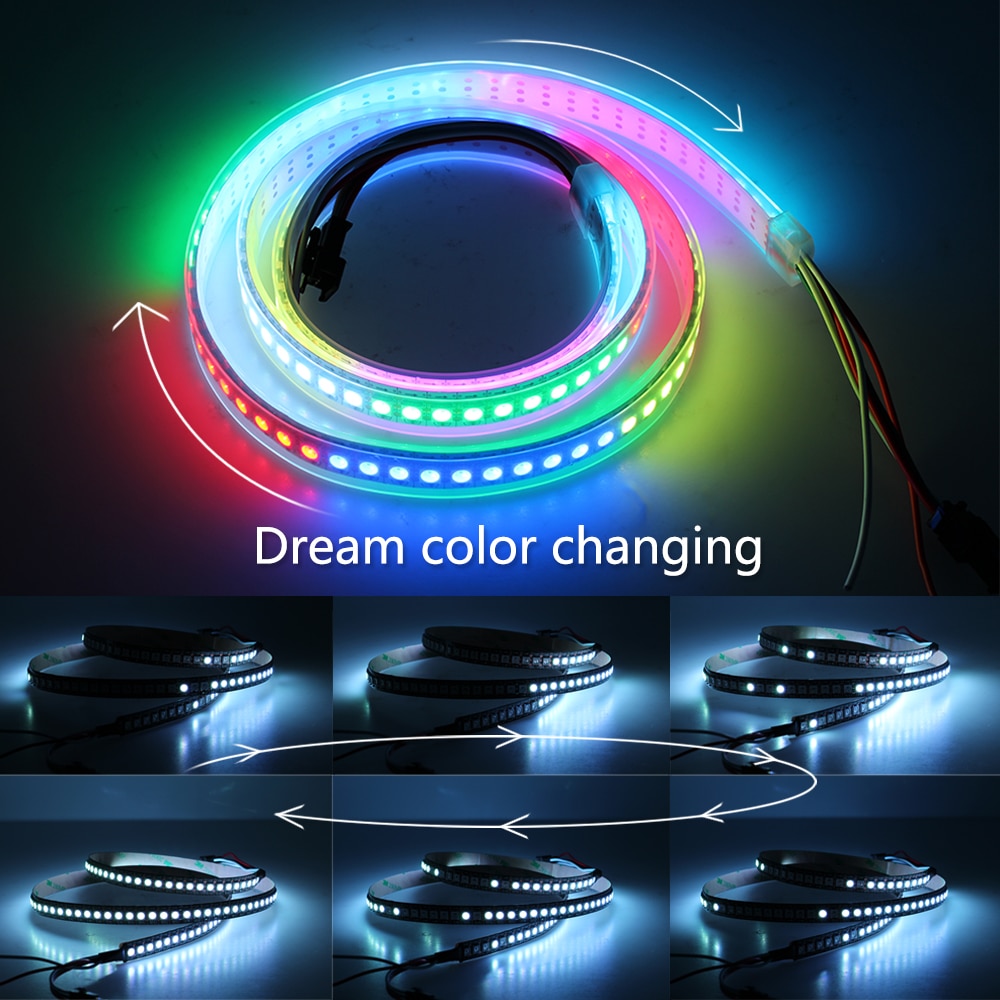

  • Colors:Full color RGB, dream color changing

Application:

  • Making led screen, led wall, advertising board, apply to hotel, KTV, bars, advertisement company, decoration company, the city lighting project, entertainment and leisure places lighting.

Package Include:

1pc led strip (not include any controller or adapter,need to order separately)

IP30 IP65 with Double side adhesive tape on the back(IP67 without adhesive)








Finish White or Black
Waterproof Non-Waterproof or Silicone Tube IP66/67 or Gel Coating IP65
LED Quantity 30 LEDs or 60 LEDs or 144 LEDs
