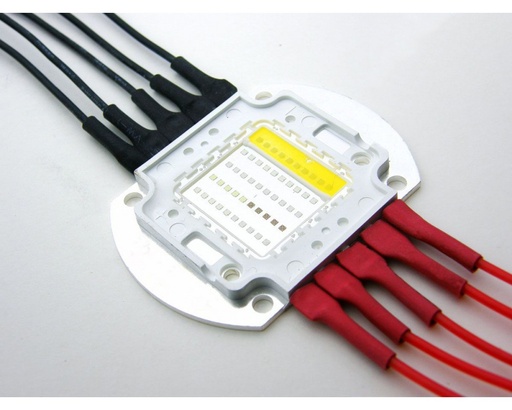

100W Full Spectrum 5 Channel LED for Plant Grow Lights
Categories :Multi-chip Hybrid Grow LEDs
This exclusive LED is perfect if you want a simple yet powerful way to setup your LED lighting.
It brings a full spectrum light to your corals/fish that really brings the colors and beauty out in them with an emphasis on keeping power consumption low.
Each channel is individually addressable (they can be individually dimmed) so you can adjust the perfect color for your tank.
Layout of Plant Grow version:
White 10000K & 15000K, violet 420nm & 430nm, royal blue 455nm/445nm
Channel 1: EPISTAR ES-CADBV45P 45*45mil 10000K x 20 chips (32-34V @ 700mA-1000mA)
Channel 2: EPISTAR ES-CADBV45P 45*45mil 455nm Royal Blue x 20 chips (32-34V @ 700mA-1000mA)
Channel 3: EPILEDS EP-U4545K-A3 45*45mil 420nm x 10 chips + 430nm Violet(UV) x 10 chips (32-34V @ 700mA-1000mA)
Channel 4: EPISTAR ES-CADBV45P 45*45mil 445nm Royal Blue x 20 chips (32-34V @ 700mA-1000mA)
Channel 5: EPISTAR ES-CADBV45P 45*45mil 15000K X 20 chips (32-34V @ 700mA-1000mA)
All LED chips are using Bridgelux or Epistar 45mil Brand new chips. It can be used as 100W to 200W when forward current varies from 700mA to 1400mA per channel. SatisLED is a factory base LED wholesaler. We can customize any chip arrangements according to customer's requirements.
|Leg Type||No Wire or With Wire|
