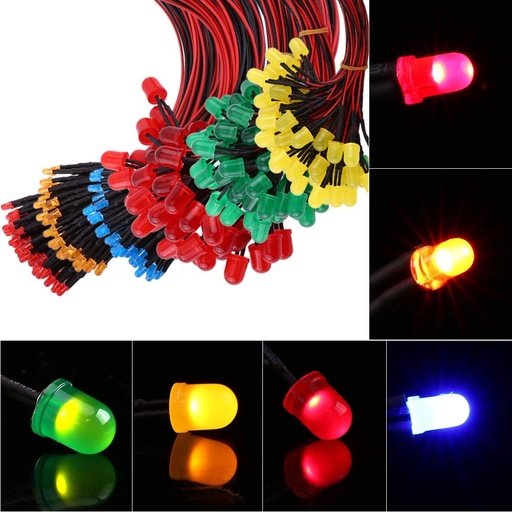

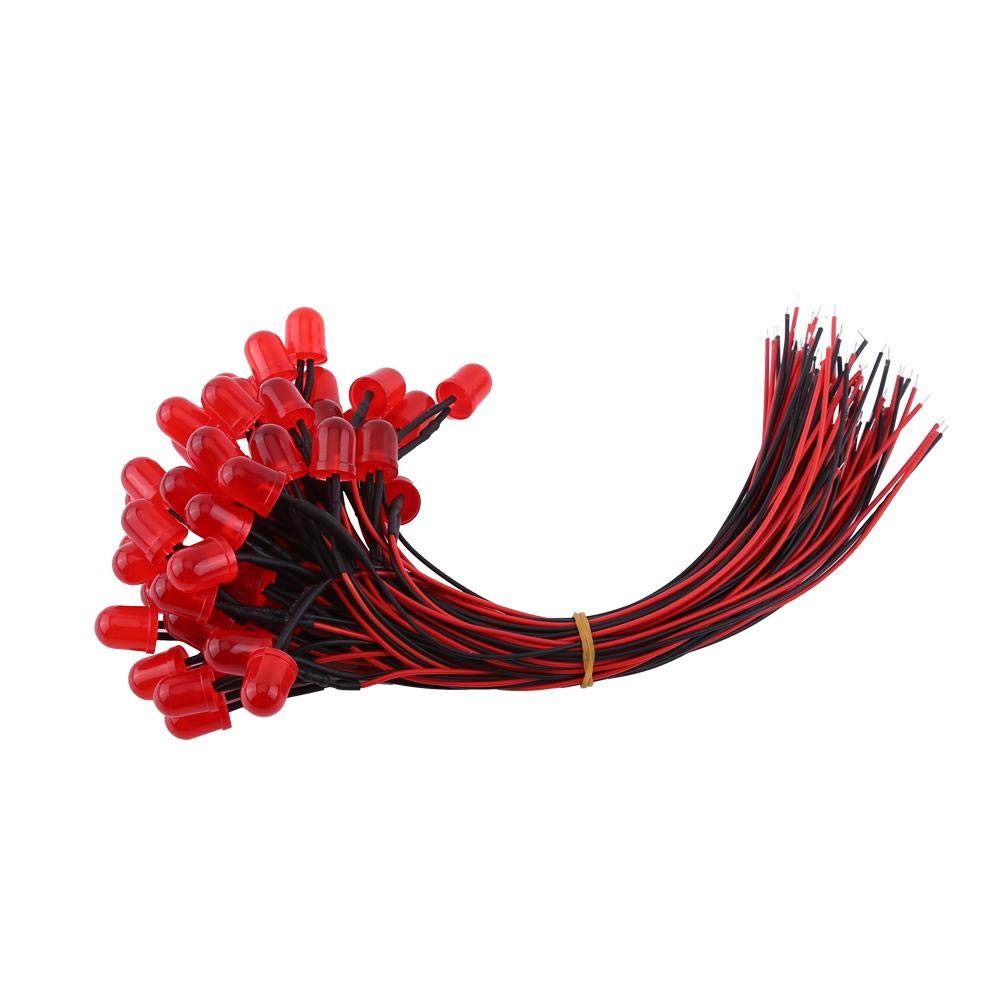

10mm F10 Pre-Wired LED Colored Lens Diffused lot(10 pcs)
Categories :
Pre-Wired LED LampsSKU :
1930254
100% original guarantee
Return within 30days
Worldwide Fast delivery
Specification:
- Light Color: Red/Green/Blue/Yellow/White
- Lens Type: Diffused Round
- Voltage: 3-6V/12V
- Lead Length: Approx. 20cm
- Lens Size: Approx. 10mm
- Brightness: Color Various(See table below)
- Wave Length: Color Various(See table below)
- Viewing Angle: 90-120 degree
Parameters of 10mm Diffused LEDs:
8mm diffused LEDs | Forward voltage | Dominant wavelength | Luminous Intensity | Viewing angle | |||||
Part number | Emitting Color | (V) IF=20mA | IF=20mA | (mcd) IF=20mA | |||||
TYP | MAX | MIN | MAX | TYP | MAX | (degree) | |||
| LED-10MMR | Red | 2.0 | 2.6 | 620 | 640 | 20000 | 30000 | 90-120 | |
| LED-10MMY | Yellow | 2.0 | 2.6 | 585 | 595 | 20000 | 30000 | 90-120 | |
| LED-10MMO | Orange | 2.0 | 2.6 | 620 | 630 | 20000 | 30000 | 90-120 | |
| LED-10MMB | Blue | 3.2 | 3.4 | 465 | 475 | 18000 | 20000 | 90-120 | |
| LED-10MMG | Green | 3.2 | 3.4 | 520 | 530 | 25000 | 35000 | 90-120 | |
| LED-10MMW | White | 3.2 | 3.4 | / | / | 25000 | 35000 | 90-120 | |
Dimension of 10mm Round Type LED:
| Emitting Color | White or Red or Green or Blue or Yellow |
| Input Voltage | DC12V or 3-6V |
