Features:
The LED dimmer adopts capacitance touch technique: switch and dimming function can be realized by touching, dim 12V-24V directly driven LED lighting products, such as LED cabinet light, LED rigid bar, LED strip and LED panel light. It can be used as on/off touch switch. During the dimming process, it doesn’t flicker.
Specifications:
Working voltage | DC12-24V |
Working temperature | -20℃～+60℃ |
Output | 1 CH |
Max output current | 4A |
Static power | <1w<><1w<> |
Output power | 12V<48w,24v<96w<><48w,24v<96w<> |
Packing size | 160*90*15mm |
N.W &G.W: | 30g&35g |
Function | can realize stepless dimming |
Instruction:
The finger touches dimmer plastic body.
The touch time is less than 3 second, it is on/off switch.
The touch time is more than 3 second, it is dimming function, the brightness will be raised to the highest or fallen to the lowest.
| Voltage | 12V or 24V |

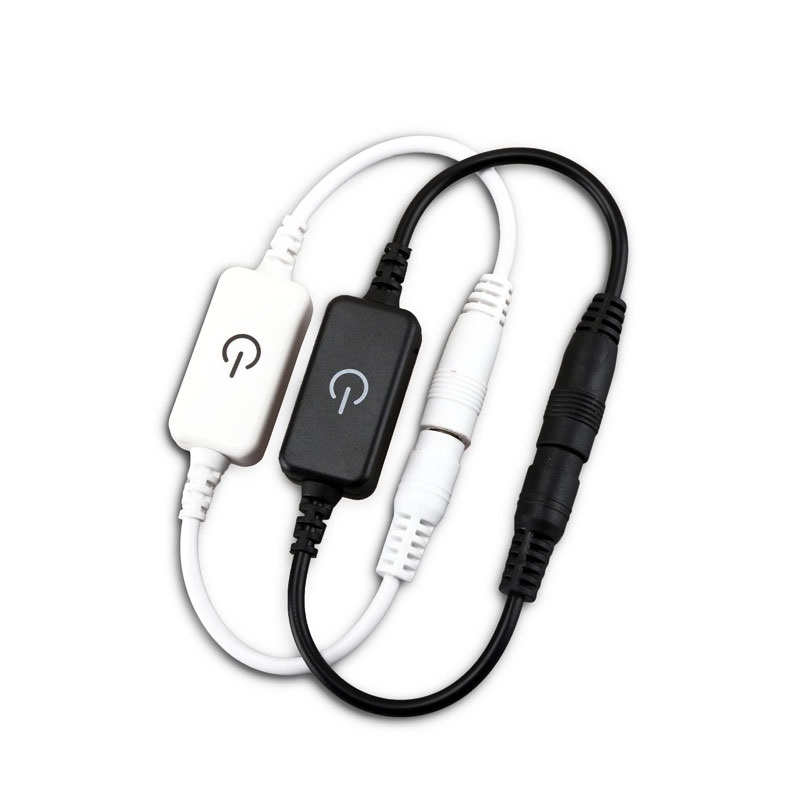

| Color | Black or White |
