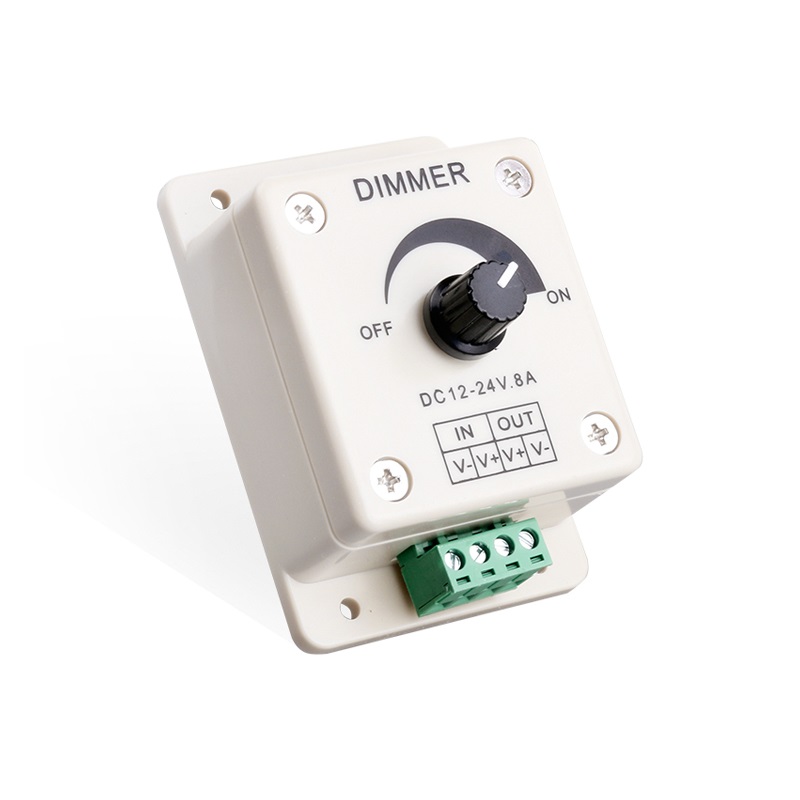

DC12-24V LED Strip Light Touch 1 Channel Dimmer Controller (Rotating)

Overview :

This product is the accessory product for the LED lighting controlling, used to control a variety of LED lighting as the light source brightness, such as: LED soft light strip, LED rigid light strip, ,Dim Led lamp,LED modules and so on. With manual adjustment knob to adjust the lighting brightness, wiring convenient, simple and intuitive.

Specifications:

• Voltage:DC12V-24V

• Current:8A *1CH

• Power Dissipation:<0.5W

• Size: 95*60*5.5 mm

• Work Temperature:-20~+60degree

• Power output: 12V-96 W,24V-192W

Application:

• The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it

• The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur

• Connect the wires of the controller and LED fittings as per the instruction

• Don’t peel off the label on the controller in case any indication information will be missed

• The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.

Package included:

• 1 x Led Dimmer Controller
