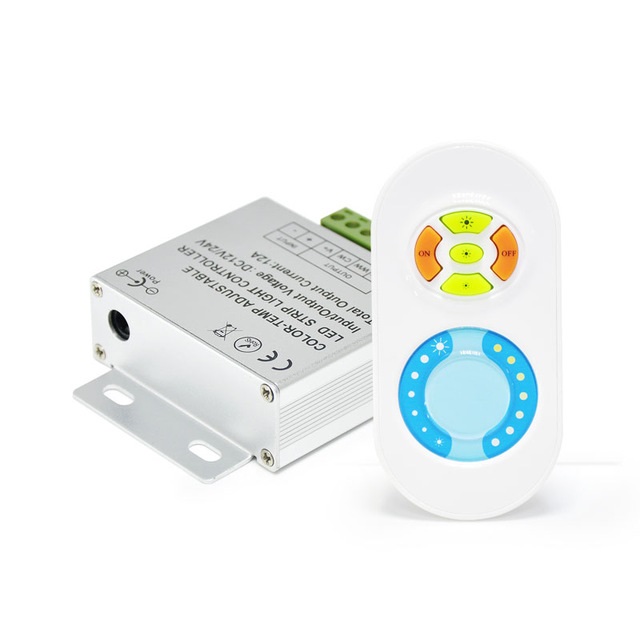

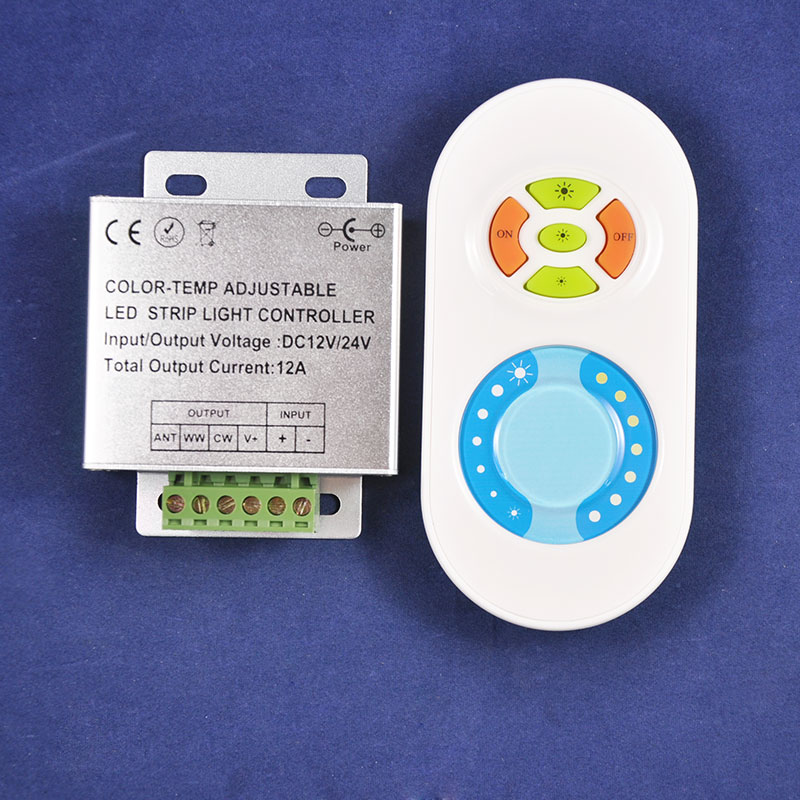

433MHz Temperature Color and Brightness Adjust Controller

Specifications:

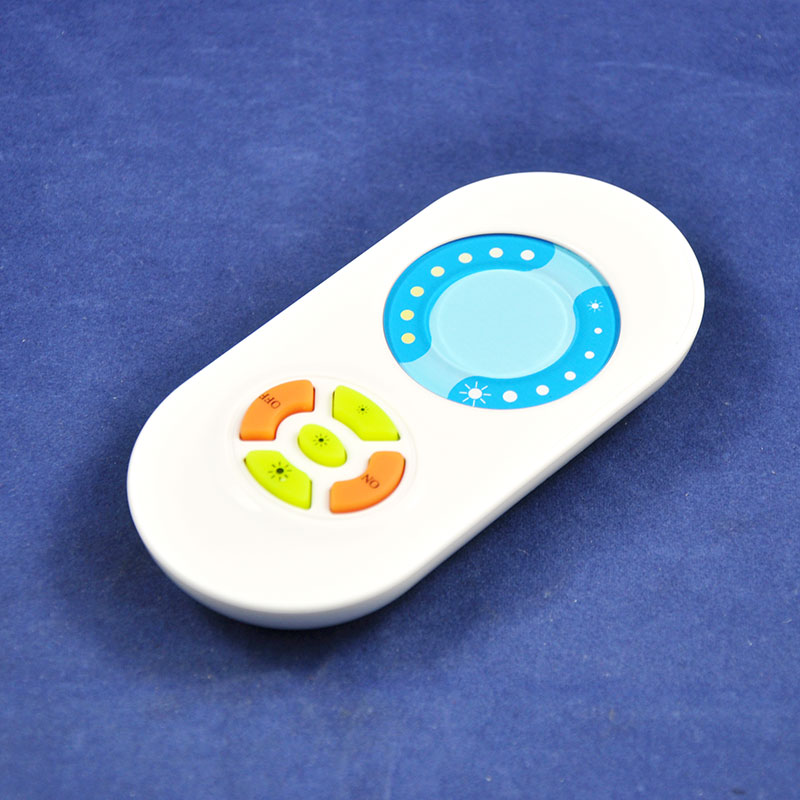

• 2.4G RF Remote Control

• Power: AAA battery*2pcs

• Material:ABS

• Fabrication processing: Multicolor printing & UV varnish

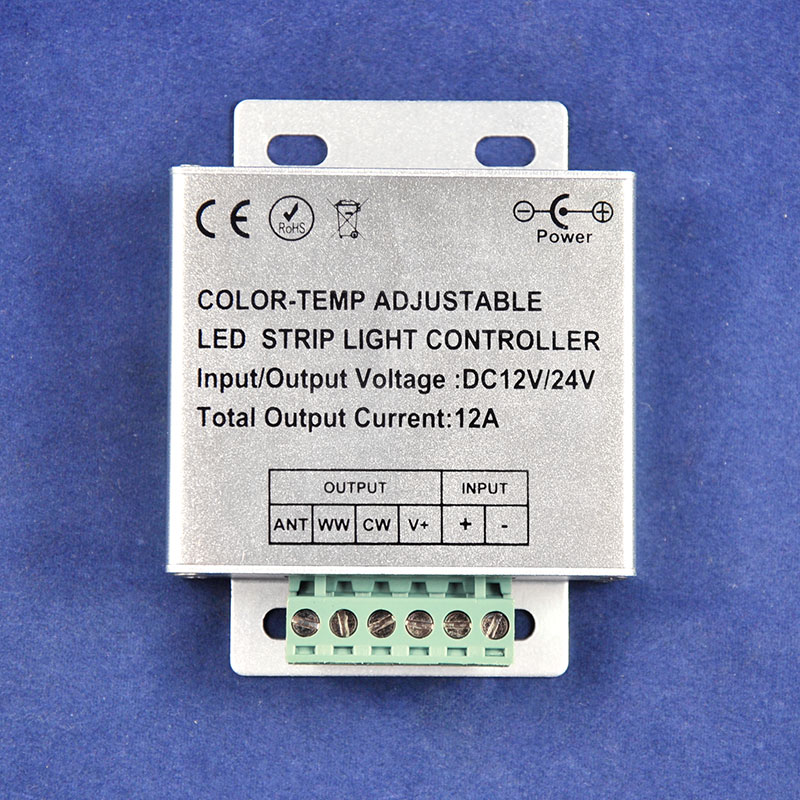

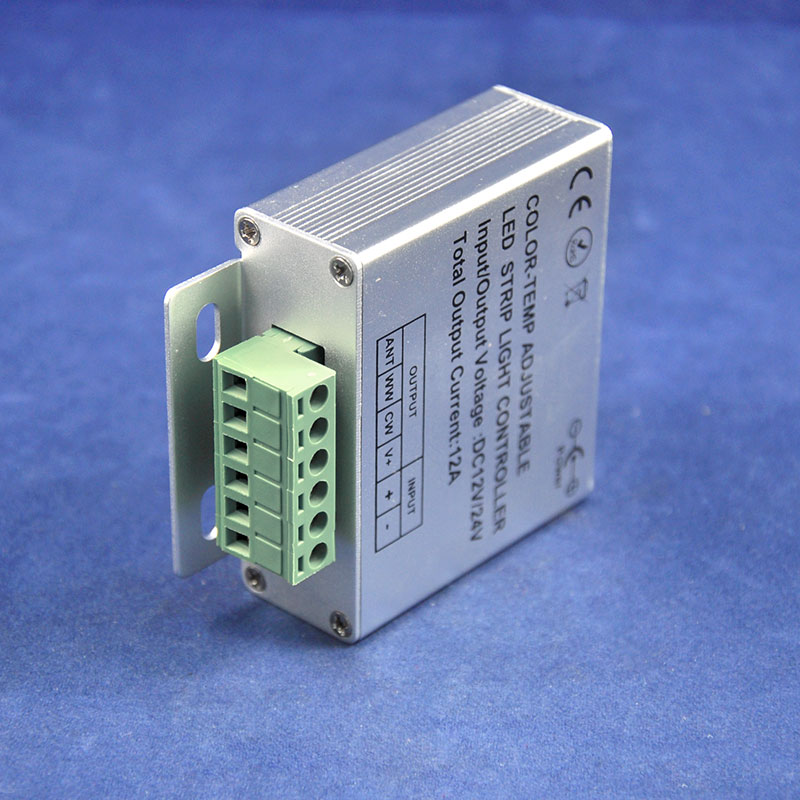

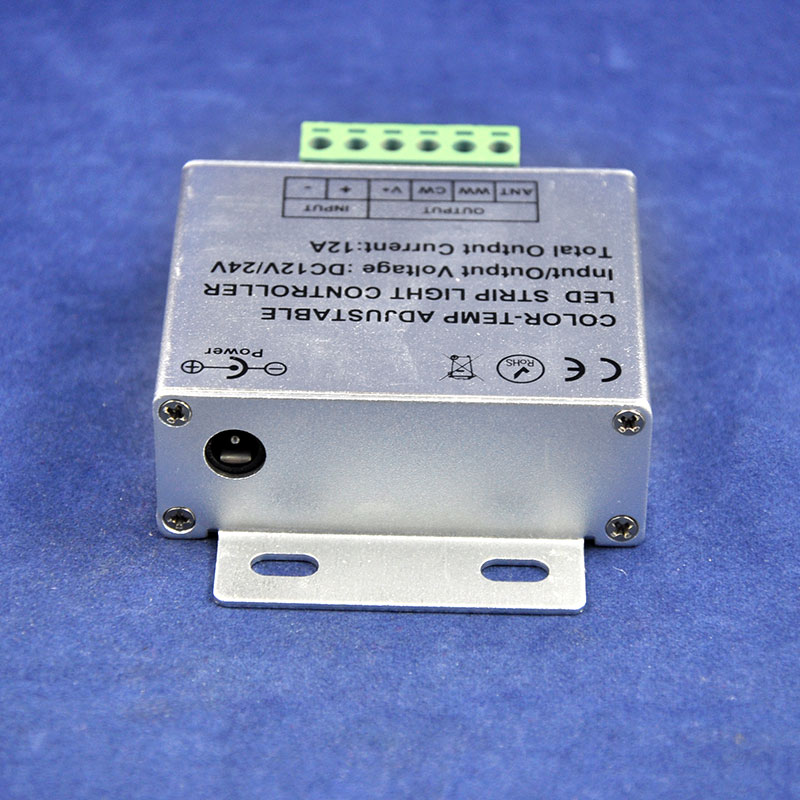

LED Controller

• Size: 85*45*22mm

• Working voltage: DC12-24V

• Output control: 2 circuits

• Control current: 6A/circuit

• Connection method: Common anode

• Receiving range: 30m

How to use:

1. Brightness Adjusting:

• Use your finger to touch the left half part of color ring, you can change the brightness from the highest to the lowest (100%-1%, 20 grades of brightness to adjust).

2. Color temperature Adjusting:

• Use your finger to touch the right half part of color ring, you can adjust the temperature from warm white to cool white (11 grades to adjust).

3. Resume function:

• The previous settings will be resumed while power on agian.

4. Matching code:

• Press Key 3 once within 3 seconds when power on again, the light will blink 3 times if matching is successfully.

5. Clearing code:

•  Press Key 3 five times within 3 seconds when power on agian, the light will blink 6 times if clearing is successfully.

Caution:

• Please don't touch or press the color ring while loading the batteries to protect the sensitiveness.

• Please use the remote controller 3 seconds after the batteries are loaded.

• Please reload the batteries when you find the color ring is not sensitive.

Package included:

1 x Touch Screen 2.4G RF color temperature and brightness adjustable led controllr

1 x remote control
