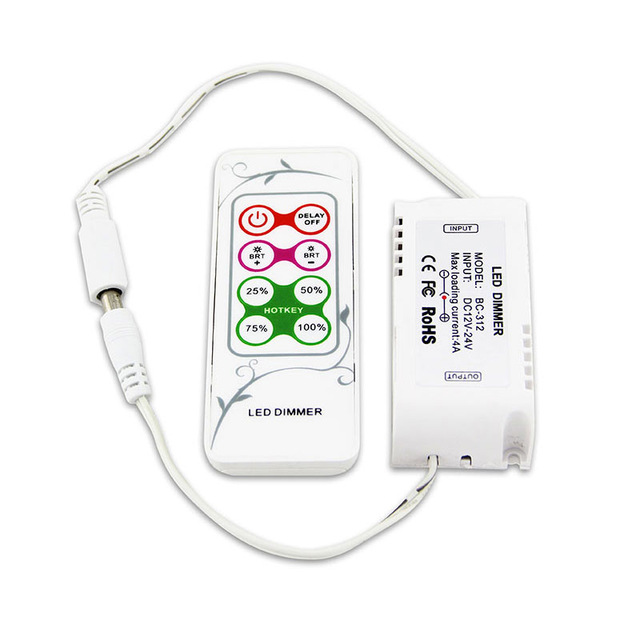

4A Constant Voltage PWM Smart LED Dimming Controller for LED Lights

https://www.satisled.com/web/image/product.template/1157/image_1920?unique=99581fd
(0 review)

13.46 13.46 USD 13.46

¥ 96.80

Not Available For Sale


    This combination does not exist.


    Categories :
    LED Dimmers
    SKU :
    1820066
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summary:

    LED intelligent dimmer is dedicated to adjust the brightness of LED lights, which adopted the most advanced PWM (Pulse-width modulation) digital brightness-adjusting technology at present. Its suitable for adjusting the brightness of low-power and hi-power LED illumination lights LED bar, LED lamp tape, SMD soft light bar, wall lamp, LED spotlights, LED lamp, LED droplight etc. It is real 0-100% brightness adjusting, 4096 scale levels. It works more advantageous especially in low brightness.

    Specifications:

    Max voltage & current

    DC12V~DC24V, 4A

    Max power

    48W(12V), 96W(24V)

    Dimming ragne

    0%100%

    Grey step

    4096 level

    Remote control distance

    RF, 30m with obstacles; 60m without obstacles

    Product size

    L72*W36*H25mm

    Weight

    100g

    Details:

    Basic Features:

    Safety Warnings:

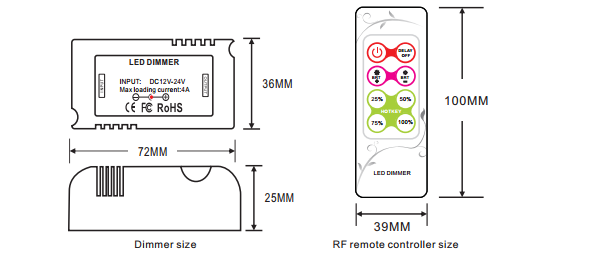

    Dimension:

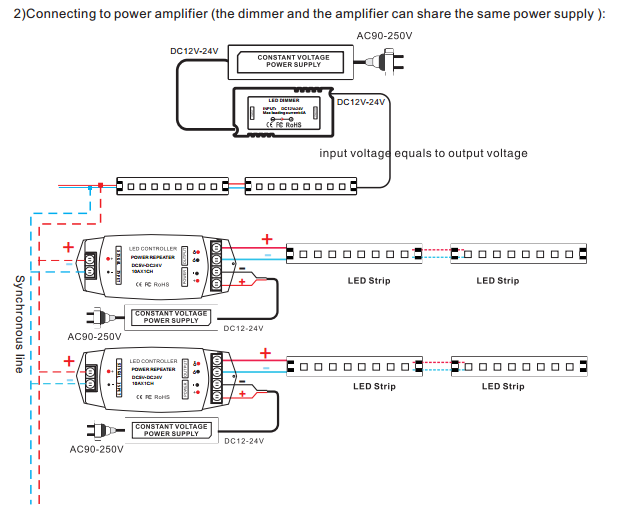

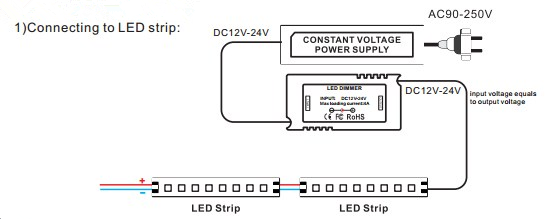

    Conjunction Diagram:

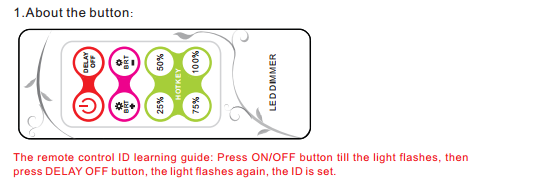

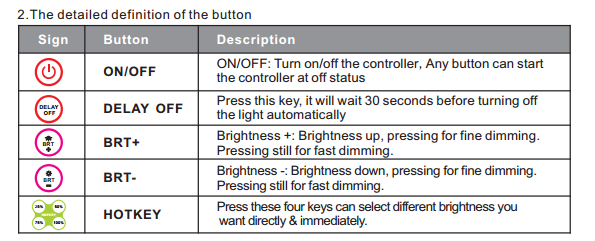

    Operating instruction:

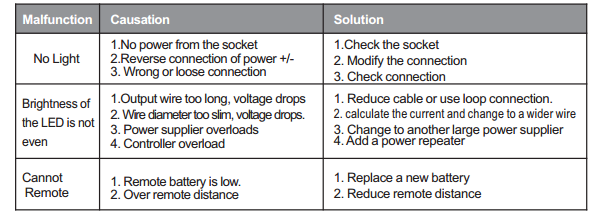

    Exception handles:

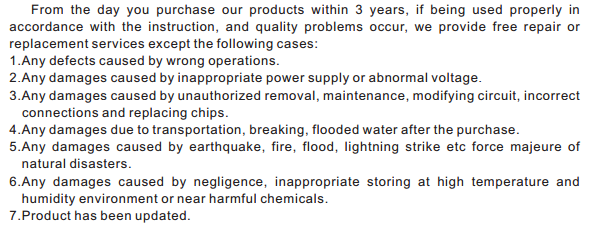

    After-sales:

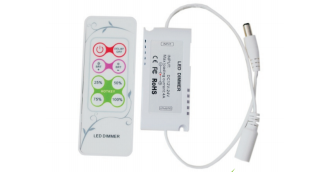

    Photo for Product:
