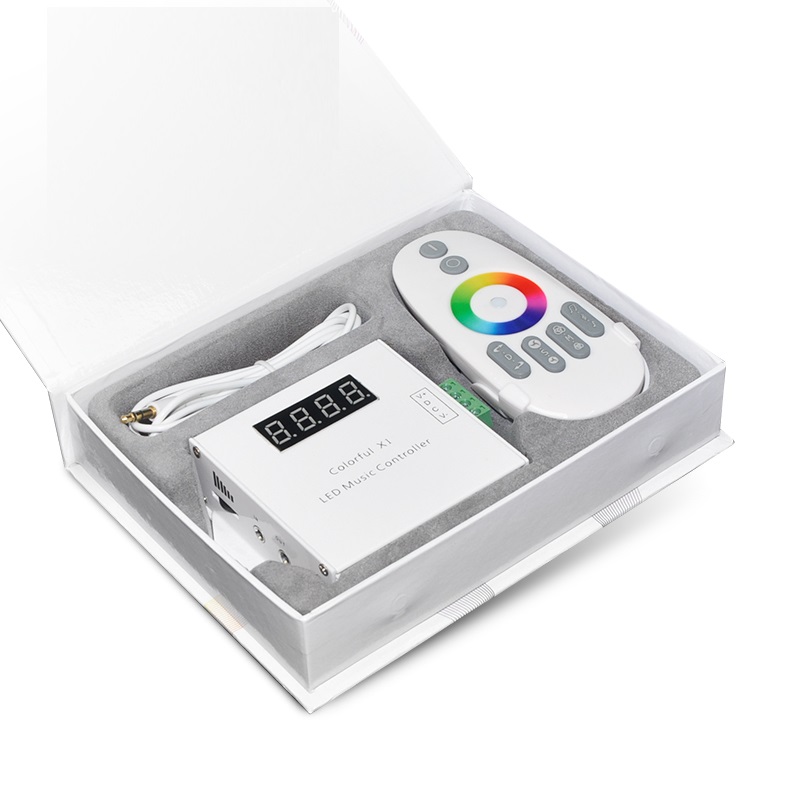

RF Music Digital Pixel Strip Light Screen Controller

Price:

13.04


5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
1.06
1.06
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
5.13
5.13

RF Music Digital Pixel Strip Light Screen Controller

https://www.satistronix.com/web/image/product.template/4212/image_1920?unique=9cde222
(0 review)

31.54 31.54 USD 31.54

¥ 228.80

Not Available For Sale


    This combination does not exist.


    Categories :
    SPI Controller , RF Controller
    SKU :
    1820115
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Feature:

    • Controlled by radio-frequency capacitive touch, effective control distance up to 20m.

    • Used conveniently at night with led backlight.

    • With 3.5MM audio, non-interfered music mode works better.

    • Easier to white mode with intelligent switch.

    • 14 classic modes changing follow your heart.

    • 33 music modes make every moment rhythmical.

    • Remote with special fixed seat, convenient for users.

    Specification:

    • Input voltage: DC12-24V

    • Volume control: 70dB

    • Remote battery: AAA*2 (battery not included)

    • Remote standy power consumption: 0.08mW

    • Remote operating power consumption: 20mW

    • Support IC LPD6803 UCS1903 WS2811 WS2812B

    • 600 pixel support.

     WU-SPI-Music01 (17).jpg WU-SPI-Music01 (18).jpg WU-SPI-Music01 (16).jpg

    this controller have not separete power in port,

    conenction detail:

    V+ to power V+,

    V- to power V-,

    D to data line

    C to click line( if you light have not click line, just ignore it.)

    No Specifications
