DC5V/75W 12V/180W 24V/360W Low Voltage RF Wireless Strip DMX Decoder

https://www.satisled.com/web/image/product.template/2191/image_1920?unique=99581fd
(0 review)

22.78 22.78 USD 22.78

¥ 163.90

Not Available For Sale


    This combination does not exist.


    Categories :
    SPI Controller , RF Controller
    SKU :
    1820135
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summary:

    The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.

    Specifications:

    Supply voltage

    DC5V-24V

    Dimming frequency

    800Hz

    Connection mode

    common anode

    Output

    3 channel

    Max output power

    5V<75 W, 12V<180W, 24V<360w<><360w<>

    Output current

    <5a (<5aeach channel)

    External dimension

    175*58*27mm

    Package size

    180*58*55mm

    Net weight & Gross weight

    300g &350kg

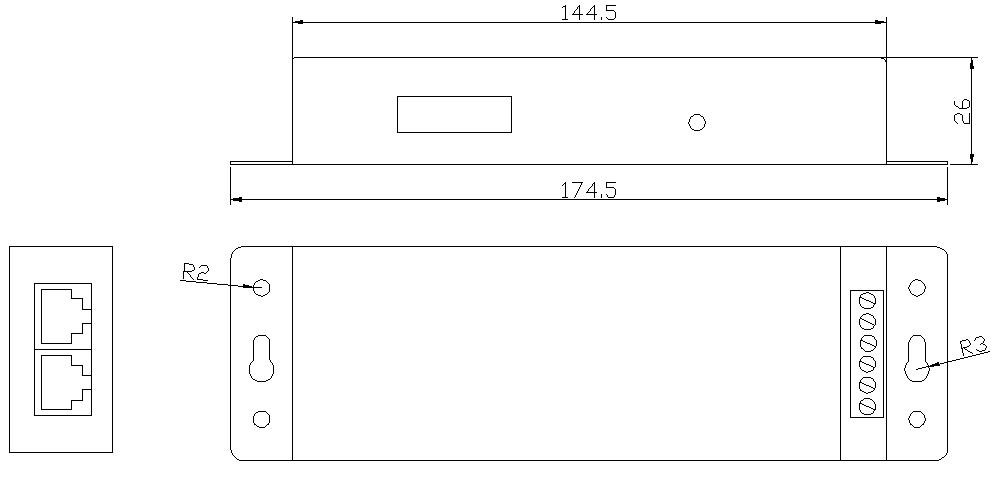

    Decoder External Dimension:

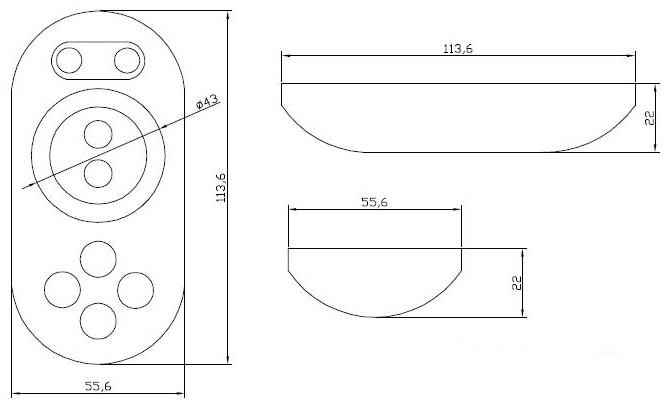

    Remote Control External Dimension:

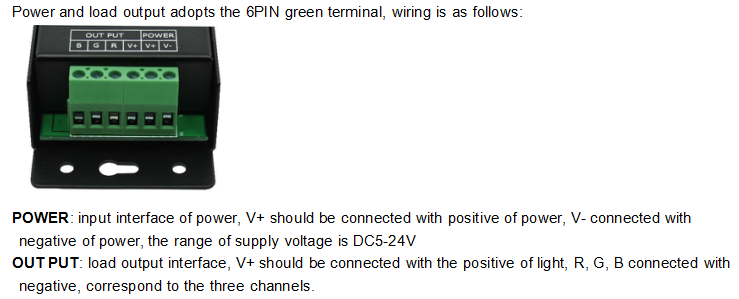

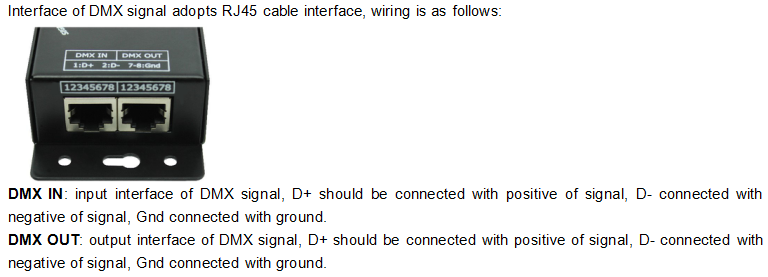

    Interface Specification:

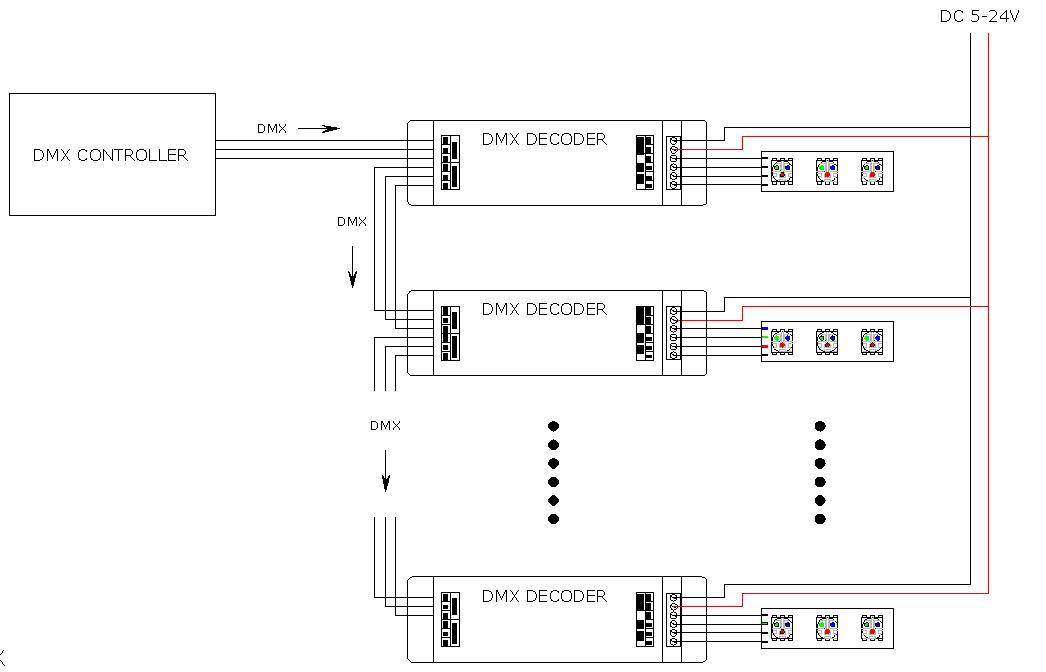

    Typical Application:

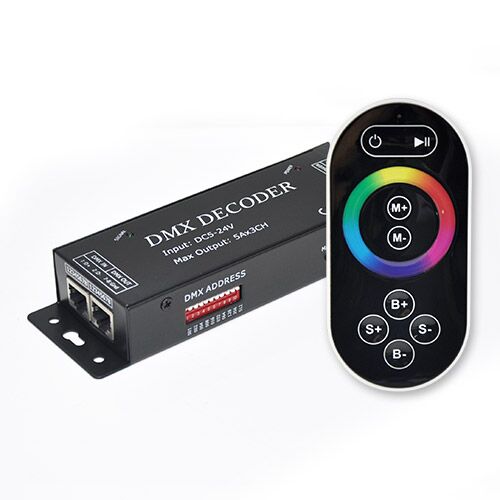

    Photo for Product:

    No Specifications
