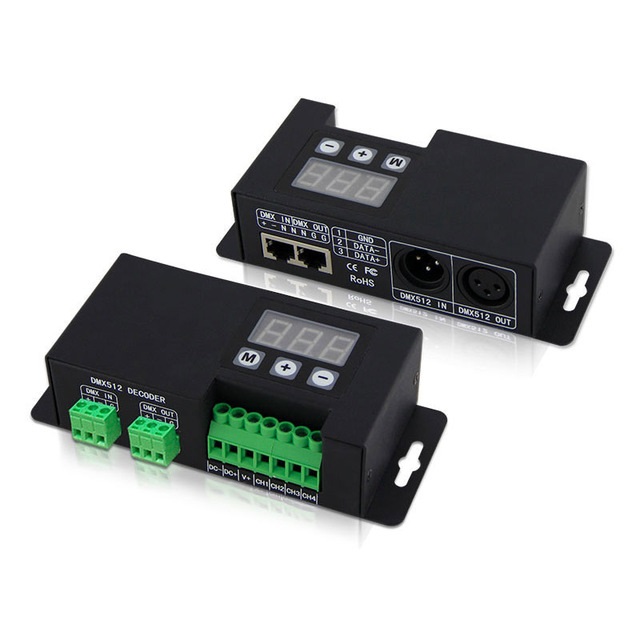

DC12V-24V 4 Channel RGB LED Controller DMX512 Decoder&Driver for LED Strip Module

Price:

$ 36.95
 LED Lightings for Everything!
USD
  2. Shop
  3. DMX controller
  4. DC12V-24V 4 Channel RGB LED Controller DMX512 Decoder&Driver for LED Strip Module
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.44
$ 2.44
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
1-7/4-9/5-12/9-12/6-18/10-25*1W 300mA Constant Current LED Waterproof Boost Driver AC/DC12V/24V Input
$ 2.76
$ 2.76

DC12V-24V 4 Channel RGB LED Controller DMX512 Decoder&Driver for LED Strip Module

https://www.satisled.com/web/image/product.template/2107/image_1920?unique=d27fcb4
(0 review)

$ 46.99 46.99 USD $ 46.99

¥ 317.90

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    DMX controller
    SKU :
    1920193
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summary:

    Constant voltage DMX512 decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1-4 output channels, 4096 grey scales, multiple DMX512 signal interface.

    Specifications:

    Input voltage

    DC12V~DC24V

    Max load current

    RGB:4Ax3CH/W:12Ax1CH

    Max output power

    RGB:48Wx3CH/W:144W(12V), RGB:96Wx3CH/W:288W(24V)

    Input signal

    DMX512/1990

    Output signal

    Constant Voltage PWMx4

    Grey scale

    4096 levelsx4

    Decode channel

    4CH

    DMX512 socket

    XLR-3R port/RJ45 port/Terminal block

    Product size

    L157*W65*H40mm
