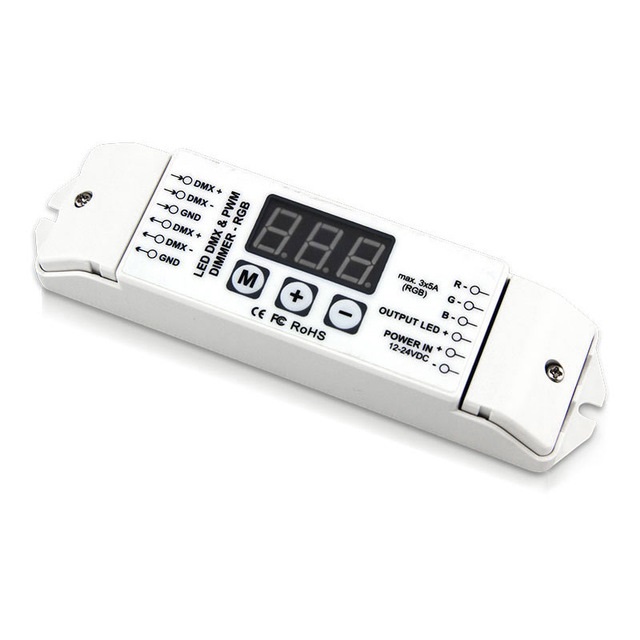

DC12V~24V Constant Voltage 5A/CH*3 DMX512/1990 Input DMX512 Master Decoder LED Controller

Functions:

• Automatically adapt input voltage DC12V-24V.

• Input standard DMX512 signal; 3-digital-display shows DMX address code.

• 3 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft& stable without strobe flash.

• DMX Master mode, Slave mode available.

• 8 color changing modes and 10 speed scales in master mode.

• Indicator of the DMX512 signal receiving status.

• Wrong wiring protection at DMX input port. Over current protection and short circuit protection.

• Power loss memory function.

Product Parameter:

• Input voltage ： DC12V-DC24V

• Max load current ： 5A/CHx3CH

• Max Output Power ： 180W(12V)/360W(24V)

• Grey Scale ： 4096 levels

• Input Signal ： DMX512/1990

• Output Signal ： Constant Voltage PWM×3

• Decode Channel ： 3CH

• DMX512 socket ： Terminal Block

• Dimension ： L176 W46 H30(mm)

• Weight (G.W) ： 170g
