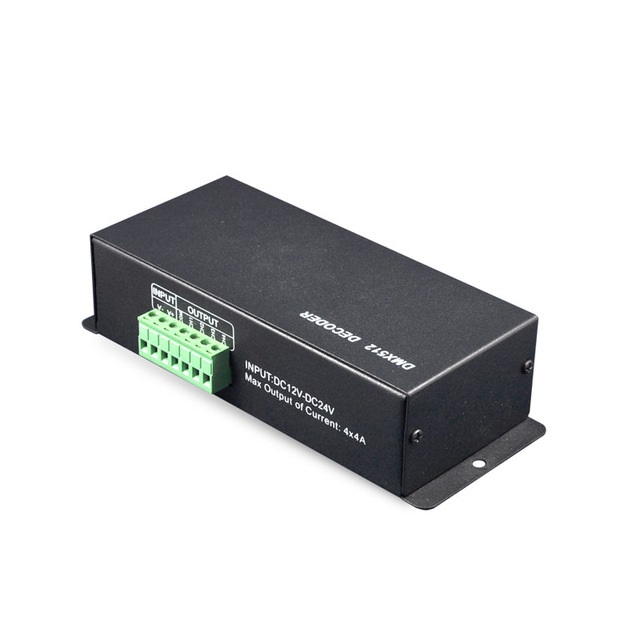

DMX 512 Decoder Led RGBW Controller DC12-24V 4A 4 Channels DMX Decoer for RGBW Ceiling Lamp

Overview :

DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.

Technical Parameters:

• Working temperature: -20-60 degree

• Supply voltage: 5V~24VDC

• Output: 4 channels

• External dimension: L165xW68xH40 (mm)

• Packing size: L180xW95xH60(mm)

• Net weight: 320g

• Gross weight: 355g

• Static power consumption: <1W

• Output current: each channel 4A

• Output power: 5V:<80W,  12V:<192W,  24V:<384W

Package included:

• 1 x DMX 512 Controller(DC12-24V)
