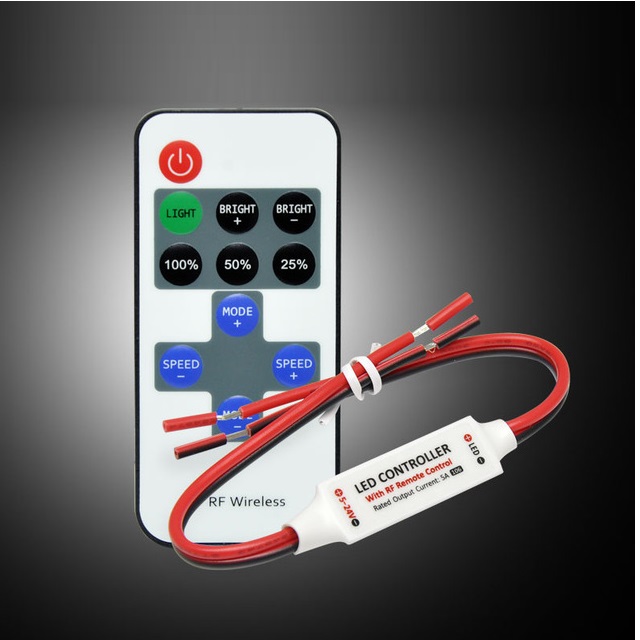

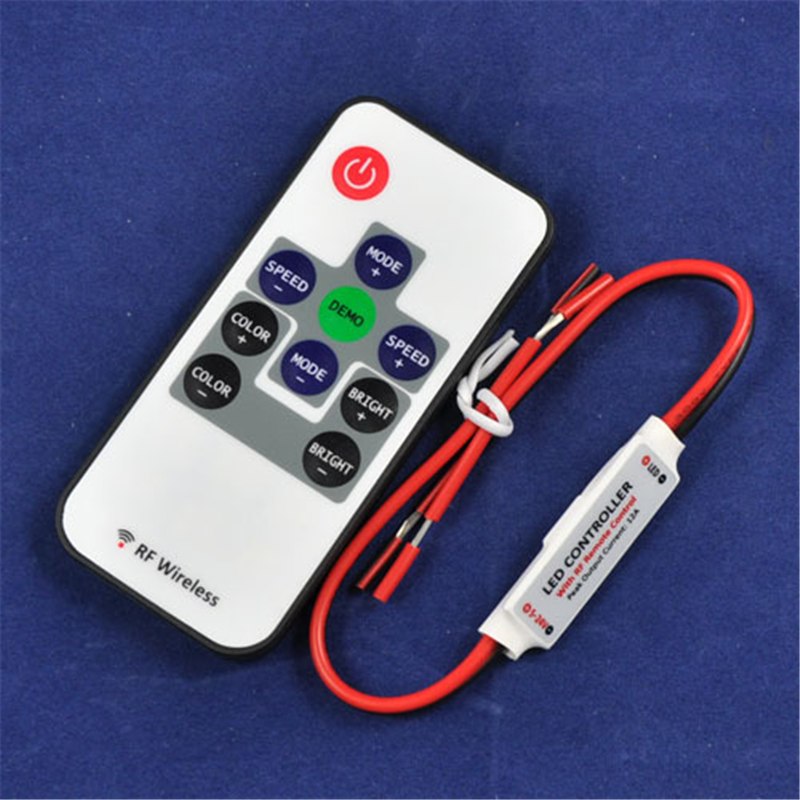

11 Keys RF Remote Controller DC 12V 12A Mini LED Dimmer w/ Red and Black Wire
Categories :Mini LED Controller
1 to 1 Paired RF Remote
Smooth Dimmer Effect
Brightness Shortcut Keys
Dynamic Speed Adjustable
5-24V wide voltage range
Ultra slim design
Power output: 5V -60W 12V-144 W,24V-288W

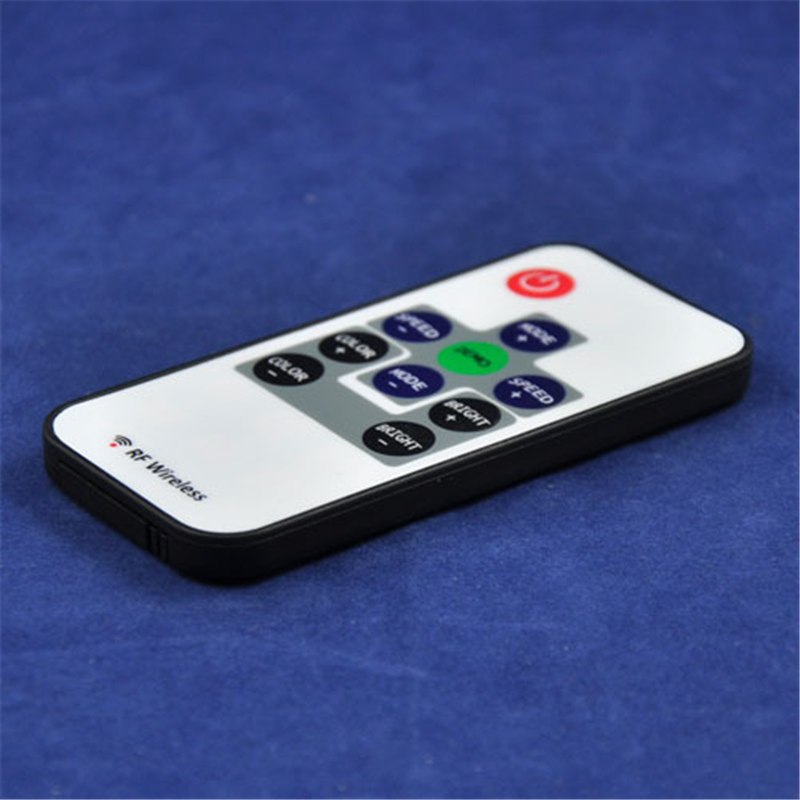

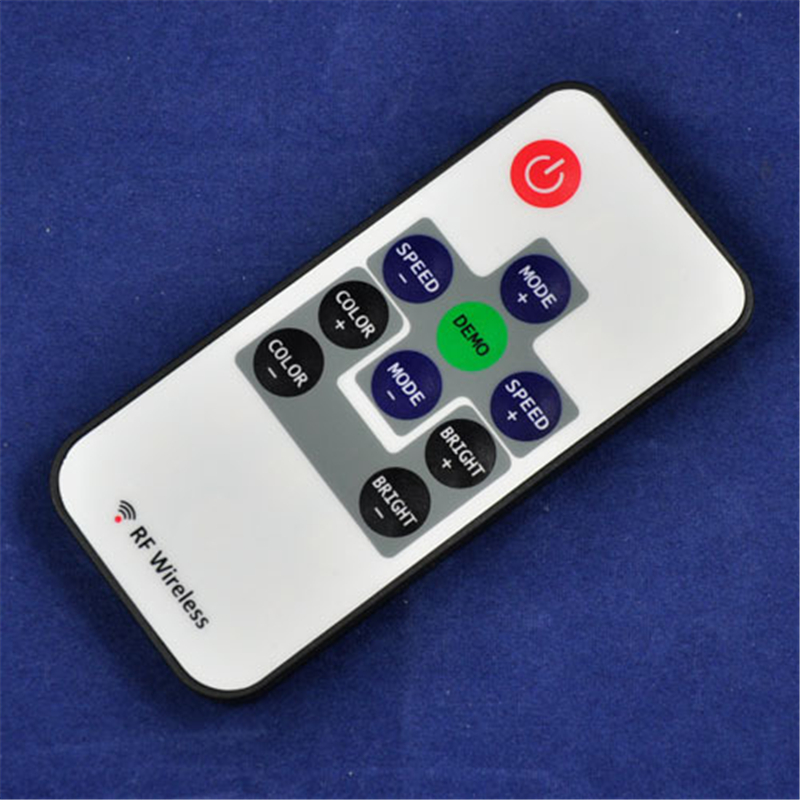

Remote control: 433.92MHz, CR2025 Battery, 15 meters remote distance, 1 to 1 matched
Dynamic mode: 8 modes
Dynamic speed level: 10 levls
Brightness level: 10 levels
Power Connector: RED/Black Cable

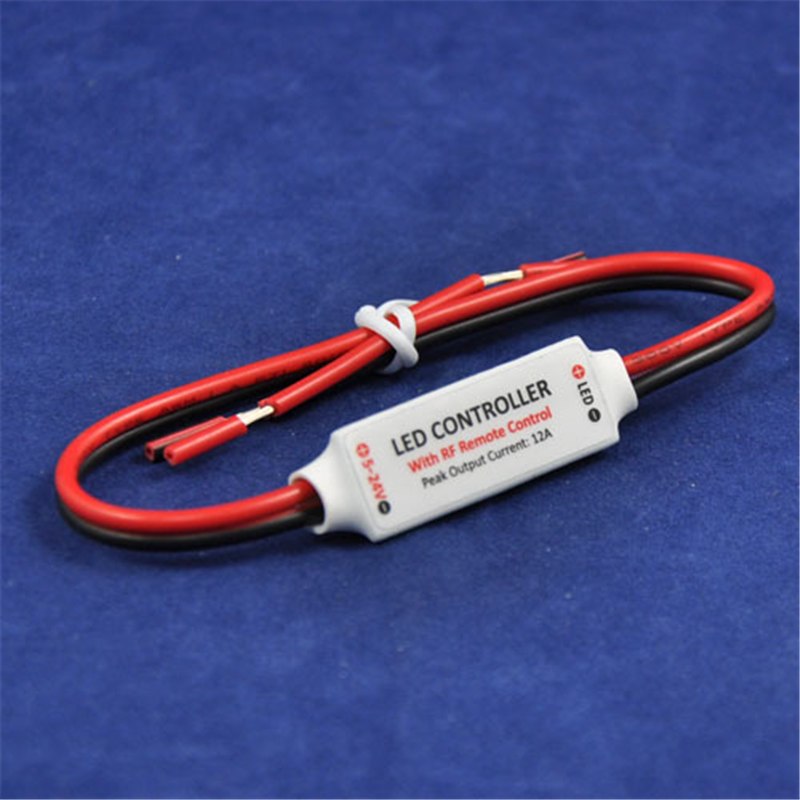

Mini Single Color LED Controller with Power Supply Socket.
Supper Mini, safe,easy to operate.
Can be used for SMD 3528 Led strip light, SMD 5050 Led strip light, led light
The input voltage of this controller should be follow the specifications, other high voltage would most probably destroy it
The 4wires coming out of the controller can’t be incorrectly interconnected or short circuit could occur
Connect the wires of the controller and LED fittings as per the instruction
Don’t peel off the label on the controller in case any indication information will be missed
The standard warranty is one yeas Our company won’t be responsible for any damage of the Controller due to any wrong operation.
1 x Mini Single Color LED Controller with socket with RF Control For Led Strip light. (not including the battery)
