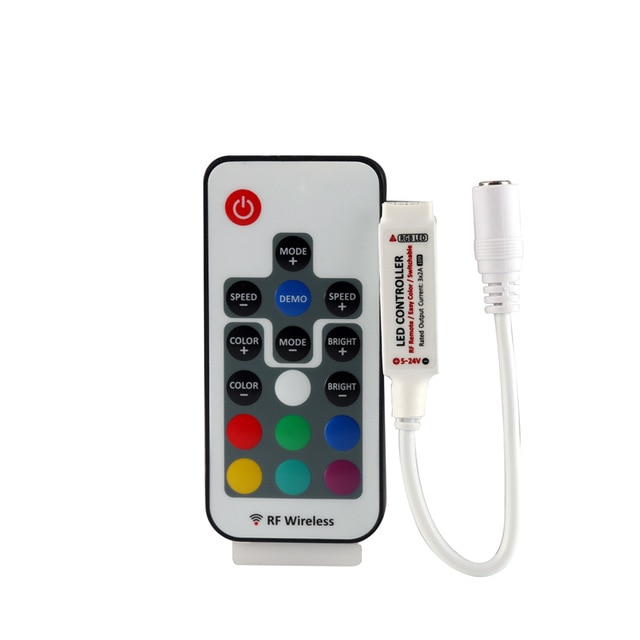

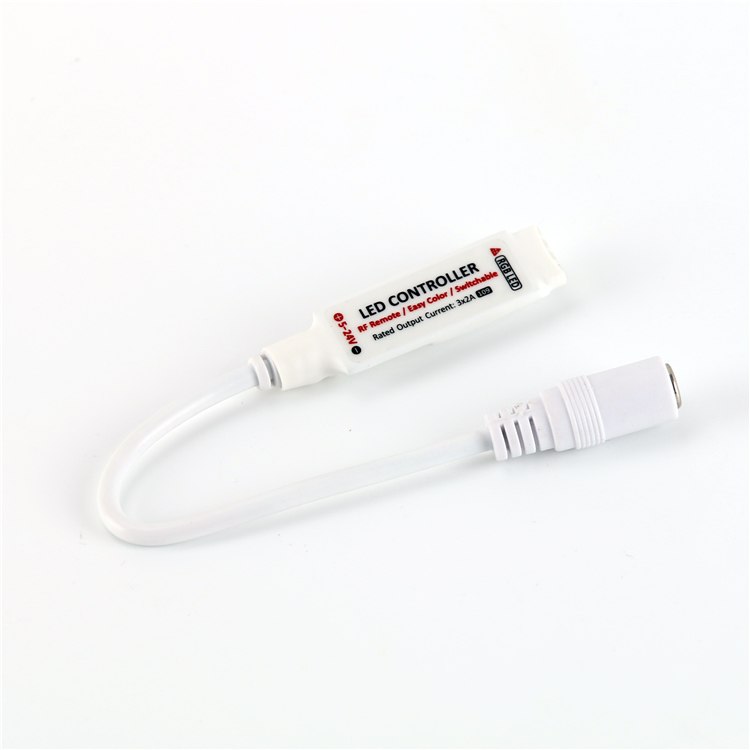

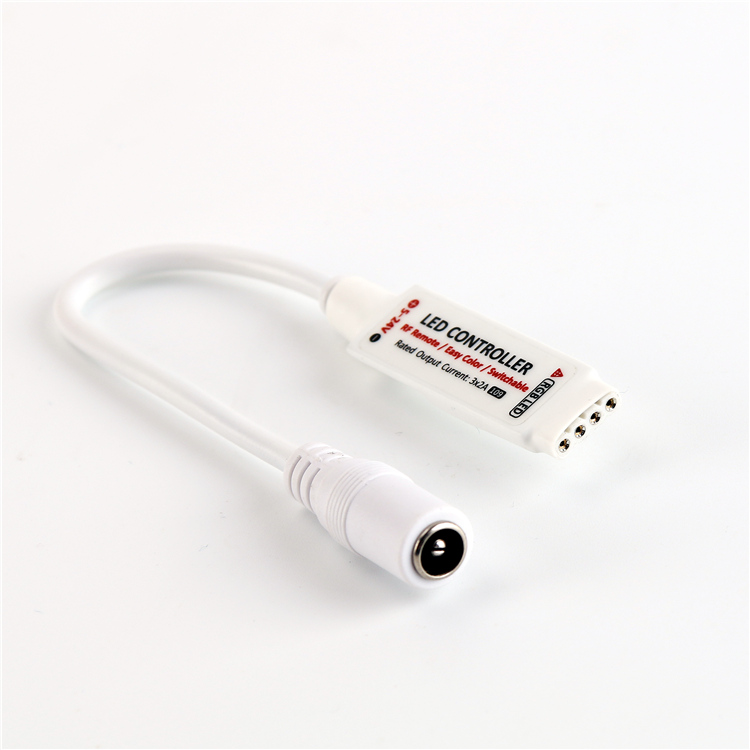

DC5-24V Mini RGB LED Controller DC Female Socket RGB LED Strip Light

https://www.satisled.com/web/image/product.template/2182/image_1920?unique=99581fd
(0 review)

6.27 6.2700000000000005 USD 6.27

¥ 45.10

Not Available For Sale


    This combination does not exist.


    Categories :
    Mini LED Controller
    SKU :
    1920311
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Feature:

    • 22 Dynamic Modes

    • Card Type RF Remote

    • 20 Static Colors

    • Ultra Slim Design

    • Very Smooth Effects

    • Dynamic Demo Mode

    • Speed Adjustable

    • Easy Remote Pairing

    • Brightness Adjustable

    • Direct Color  Select

    Specification:

    • Dynamic mode: 22 modes

    • Static color: 20 colors

    • PWM grade: 256levels

    • Brightness Grade: 5levels

    • Speed grade: 10 levels

    • Demo Mode: yes

    • Direct color select: yes

    • Output color switchable: yes, 6 options

    • Working Voltage: DC5~24V

    • Output Current: 3*4A peak, 3*2A Constant

    • Remote frequency: 433.92MHz

    • Remote distance: >15m at open area

    Installing:

    1.Power supply:

    • This unit accepts DC5V to 24V power supply. The DC jack’s inner pole or red cable is positive and sleeve or black cable is negative. Also please make sure the power supply voltage is same as the LED load.

    2.LED Output:

    • This unit support common anode connection LED products. The mark “+” indicates the common connection node. The peak output current is 4 amperes and maximum constant current is 2 amperes per channel. Please reduce load if main unit is overheating.

    CAUTION! DO NO short circuit or overload the LED outputs, this may lead to permanent damage.

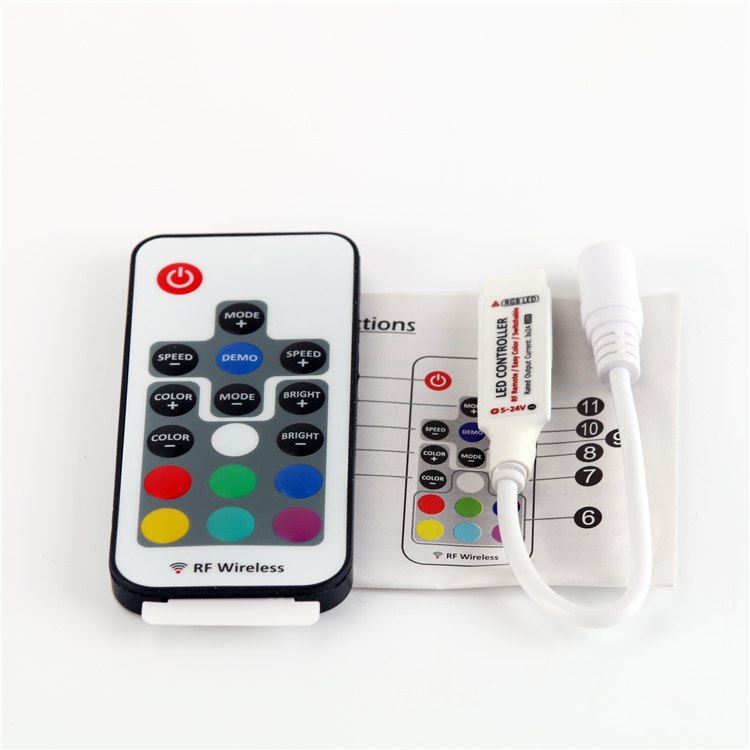

    Package included:

    • 1 x Mini Controller unit

    • 1 x Remote control (not include the battery)
