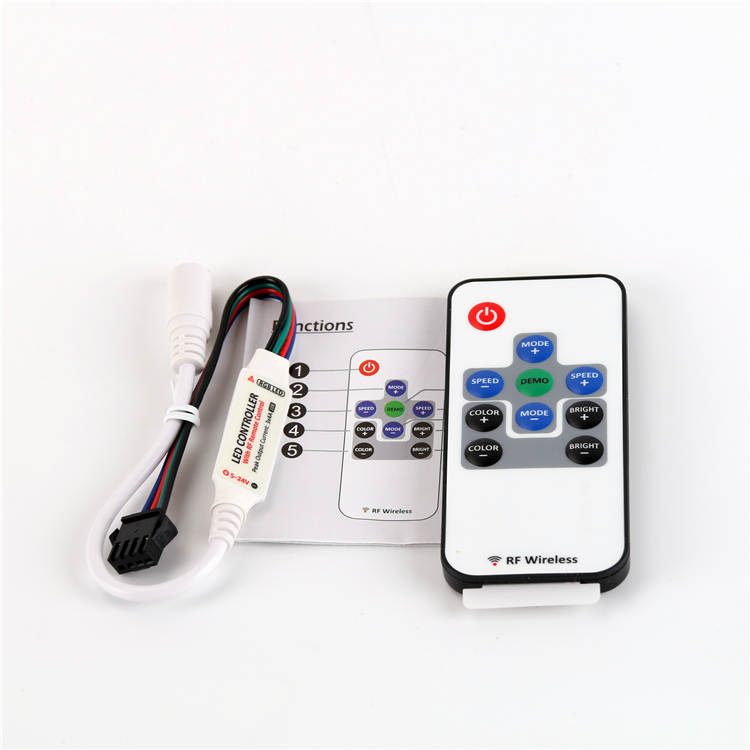

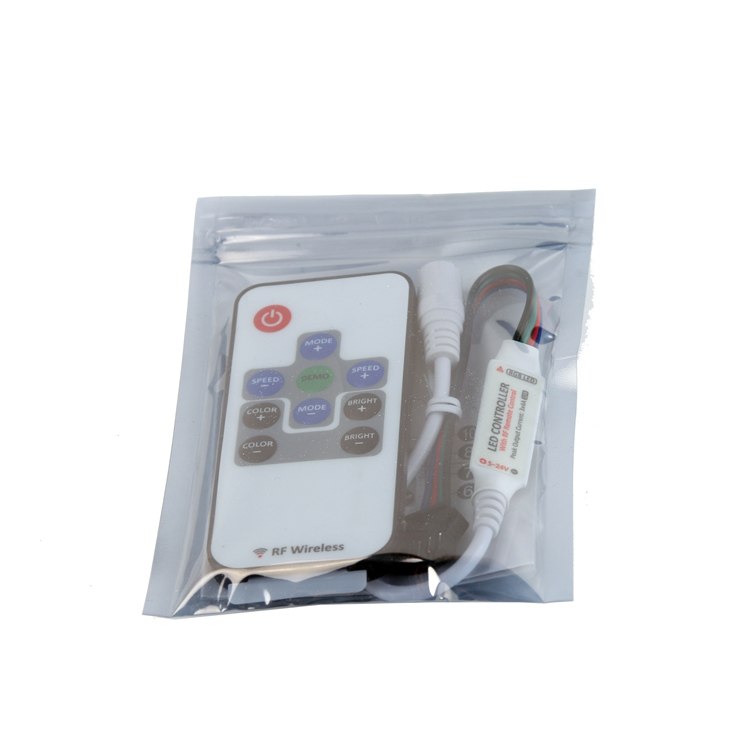

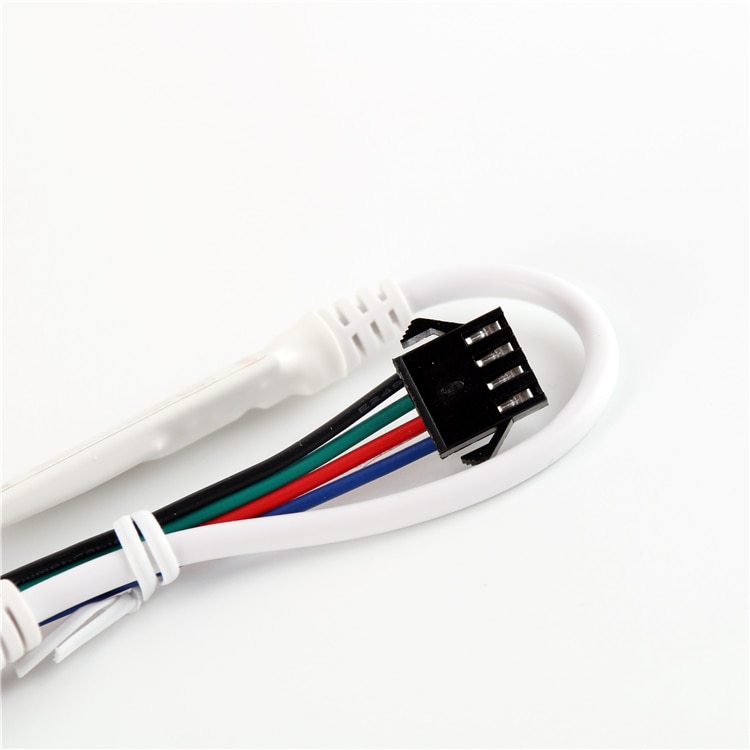

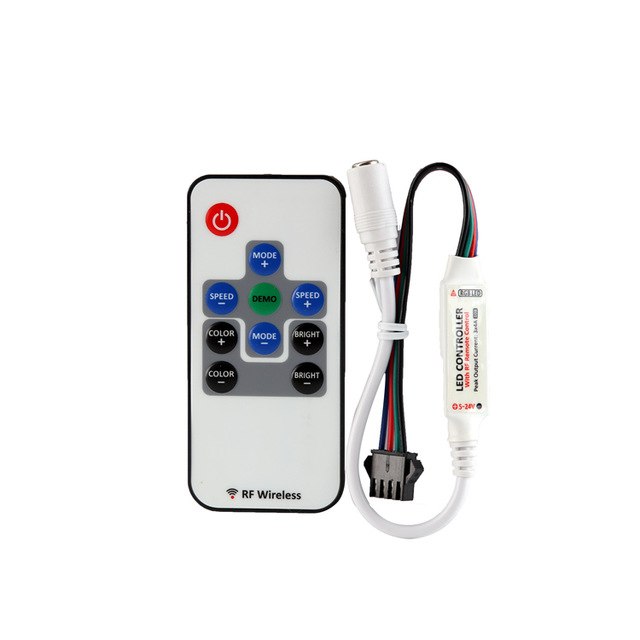

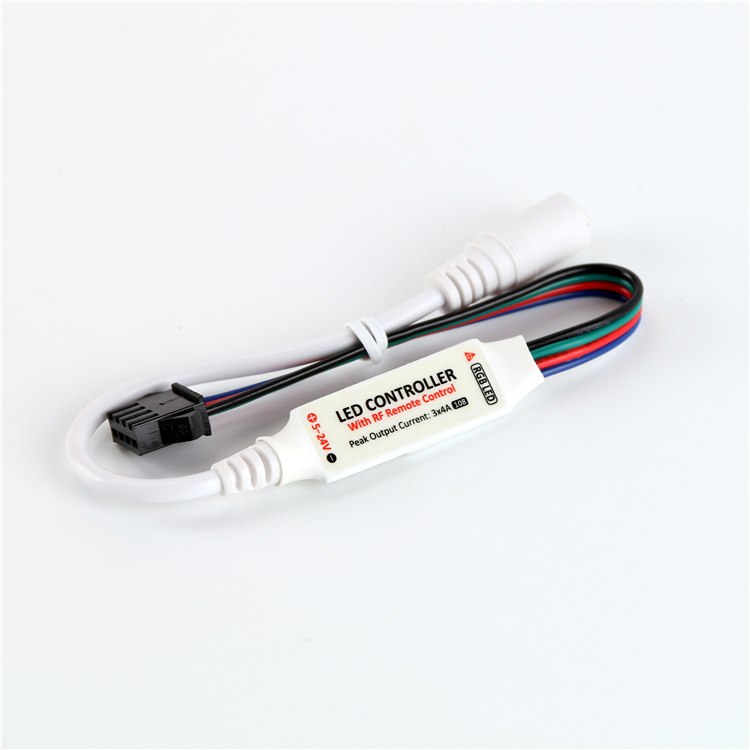

DC5V DC12V DC24V 12A Brightness & Speed Adjust RGB LED Strip Light

https://www.satisled.com/web/image/product.template/2193/image_1920?unique=99581fd
(0 review)

8.26 8.26 USD 8.26

¥ 59.40

Not Available For Sale


    This combination does not exist.


    Categories :
    Mini LED Controller
    SKU :
    1920320
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Feature:

    • 19 Dynamic Modes

    • Card Type Remote

    • 20 Static Colors

    • Ultra Slim Design

    • 256-Grade PWM

    • Demo Mode

    • Speed Adjustable

    • 1 To 1 Remote Paired

    • Brightness Adjustable

    • Auto Save Function

    Specification:

    • Dynamic Mode: 19 modes

    • Static Color: 20 colors

    • PWM Grade: 256levels

    • Brightness Grade: 5 levels

    • Speed Grade: 10levels

    • Demo Mode: yes

    • Working Voltagea: DC5~24V

    • Output Current: 3-way, peak 4A per channel

    • Remote Frequency: 433.92MHz

    • Remote distance: >15M at Open area

    Installing:

    1. Power supply:

    • This unit accepts DC5V to 24V power supply. The inner pole polarity is positive and sleeve is negative. Please select proper power supply according to the LED application.

    2. LED Output:

    • This unit support common anode connection LED products.

    • The Mark ”+” indicates the common connection node. The peak output current is 4A per channel, please reduce load if main unit is overheating.

    Caution: DO NOT short circuit the LED output, this may lead to permanent damage!
