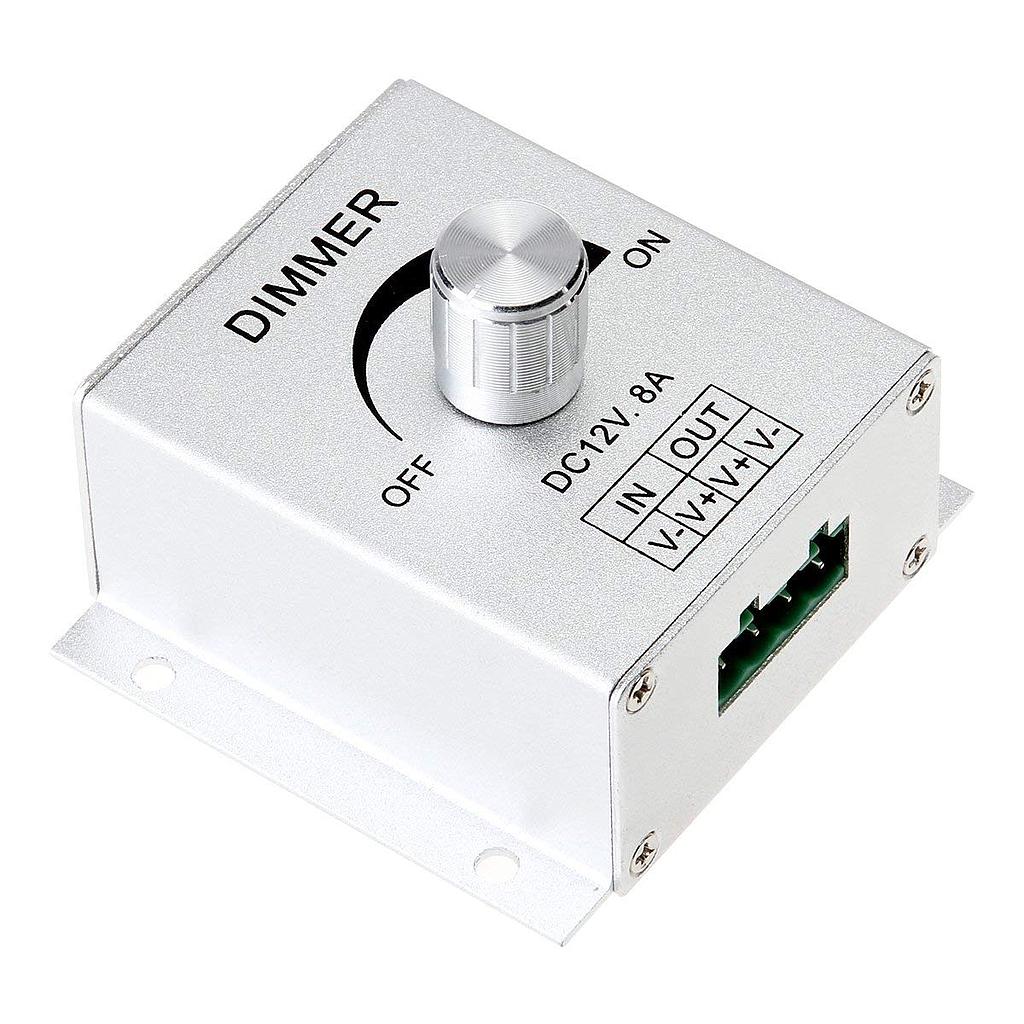

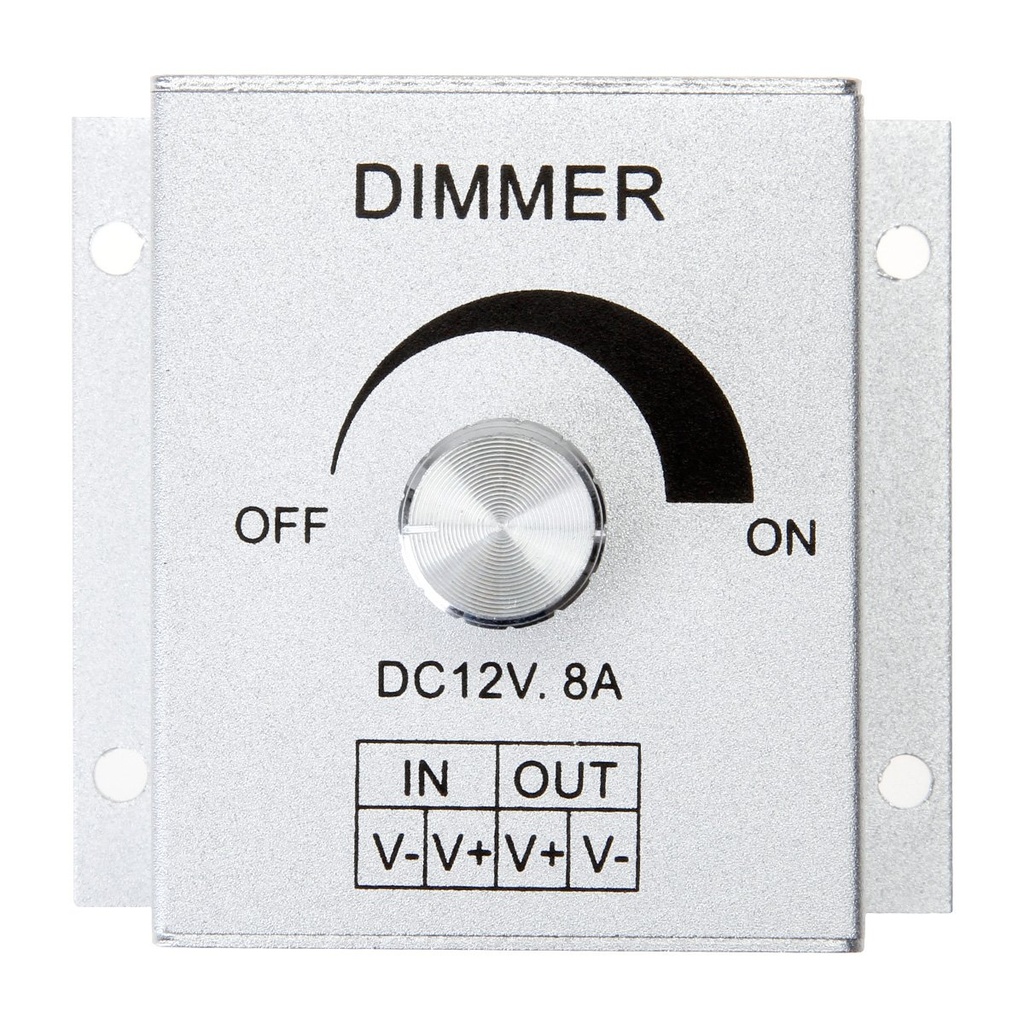

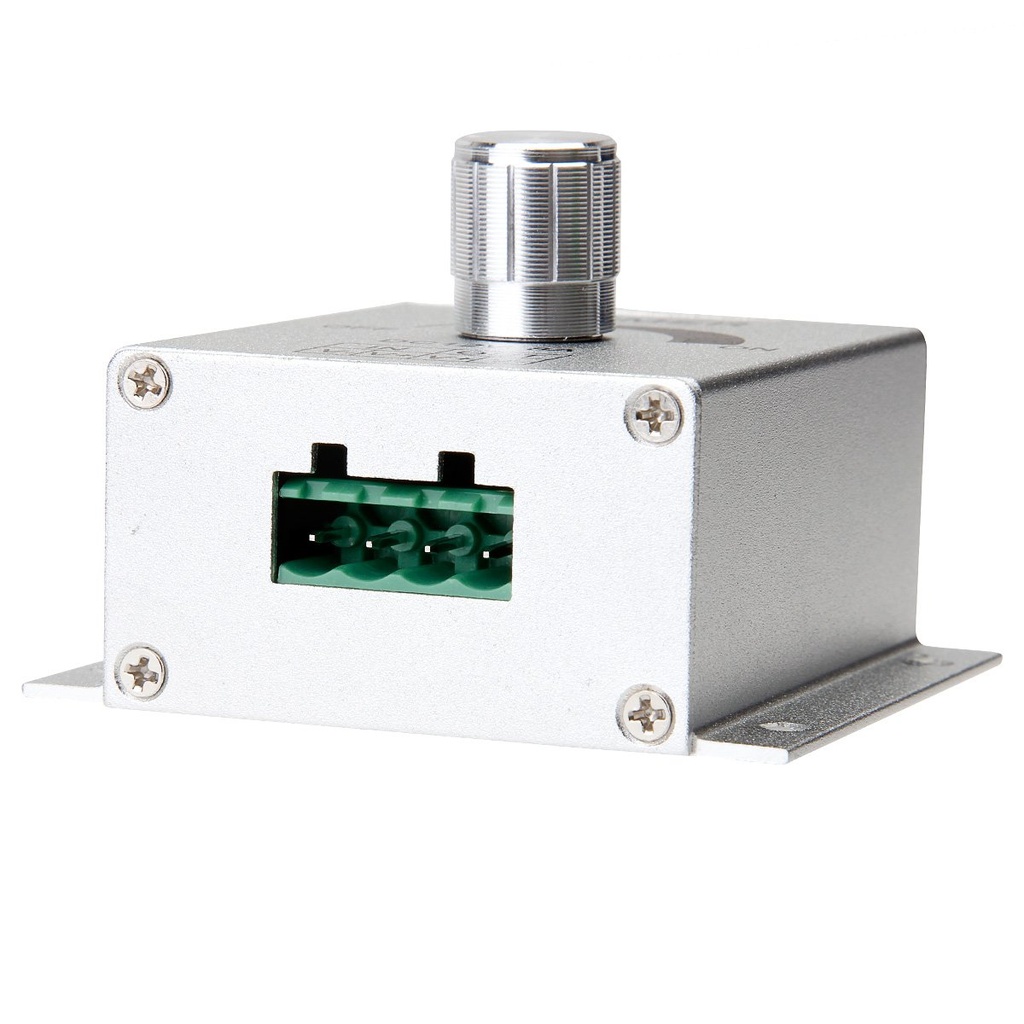

PWM Dimming Controller For LED Lights 12V 8A LED Dimmer Aluminium Case

https://www.satisled.com/web/image/product.template/4126/image_1920?unique=fb4d6cf
(0 review)

4.54 4.54 USD 4.54

¥ 33.00

Not Available For Sale


    This combination does not exist.


    Categories :
    LED Dimmers
    SKU :
    1933779
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Feautures:
    * 100% brightness adjustment knob stepless dimming
    * 256 gray scale, mild stable lighting, no flicker
    * PWM digital dimming, eliminate current surges, so that LED to achieve a better life
    * Constant current constant voltage, exceeding the load range can be connected to the signal amplifier, an unlimited expansion of power
    * The main control monochromatic light dimming

    Technical Parameters:
    * Work Temp.:-20-60
    * Supply Voltage:DC12V
    * Max load current:8A
    * Product Size:89*60*53mm
    * Package Size:109*65*55mm
    * Housing Material: Aluminum Alloy
    * N/W:60g
    * G/W:85g





    Installation:

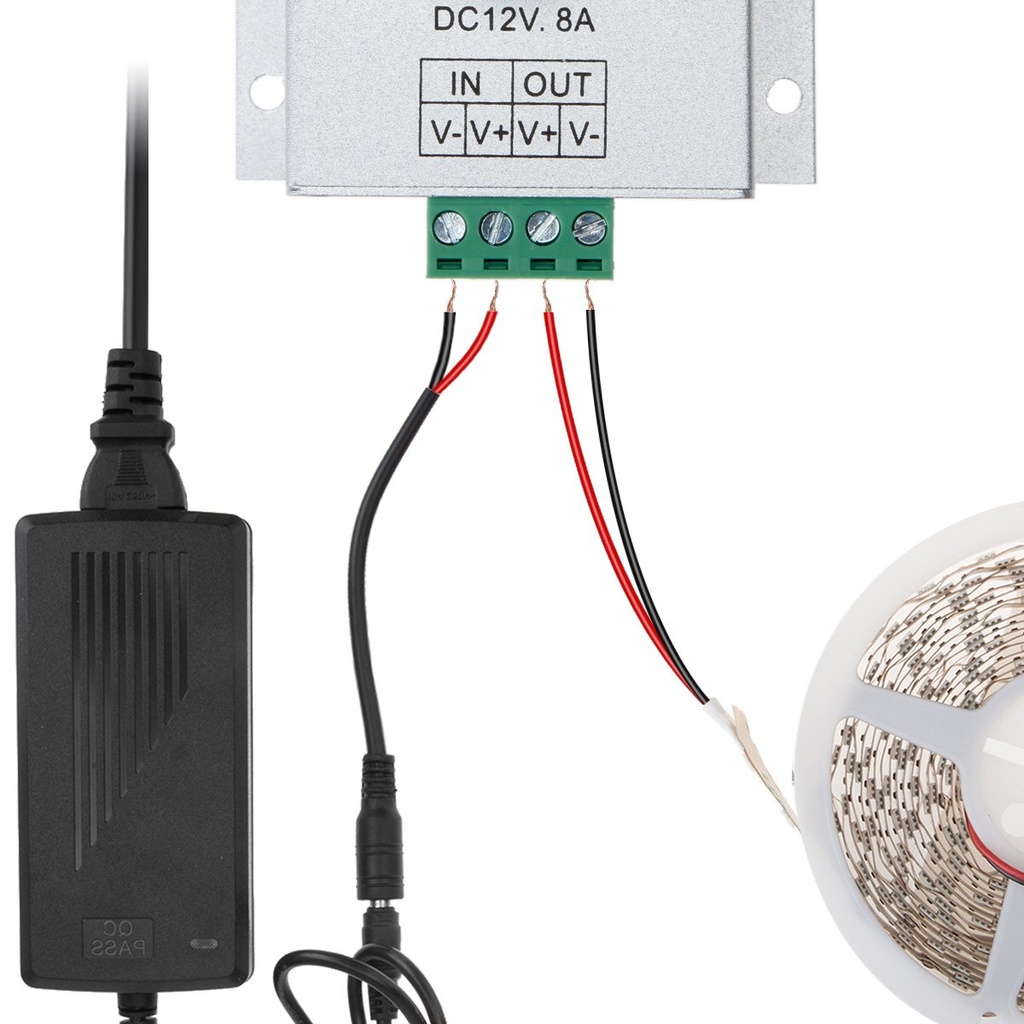

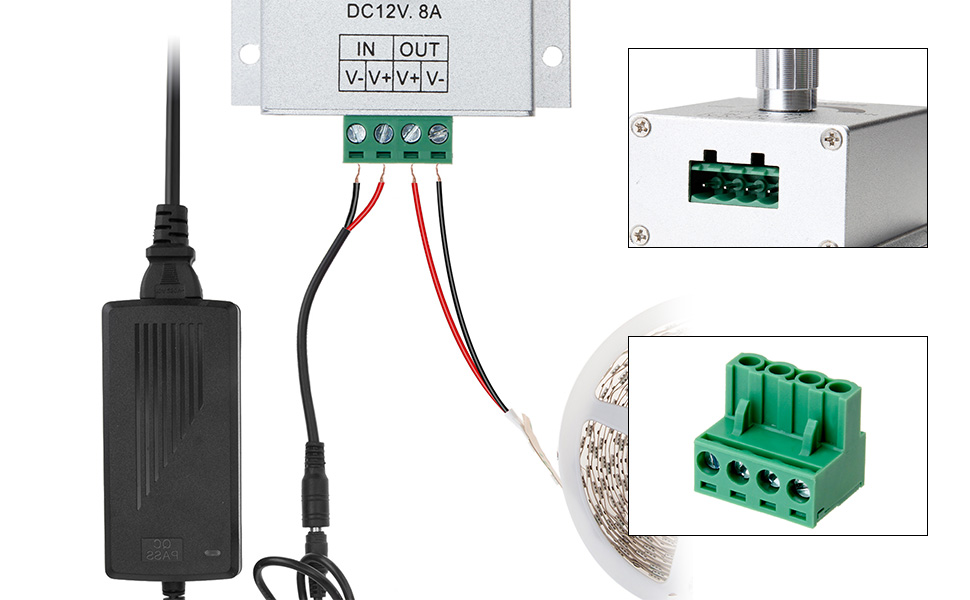

    the "IN" connect DC12V Power, "OUT" connect light strip, where "V +" take positive "V-" take negative. Rotary light dimmer knob you can adjust the brightness, rotate counter- clockwise until the lights dimmed out, clockwise rotation of lights brighten.

    No Specifications
