17mm LED Driver 7135 x 8 chip 4 Groups Modes 2.8A for XML XML2 T6 U2 U3 LED

https://www.satisled.com/web/image/product.template/727/image_1920?unique=99581fd
(0 review)

4.13 4.13 USD 4.13

¥ 29.70

Not Available For Sale


    This combination does not exist.


    SKU :
    1935709
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Description:

    • Dimensions: PCB diameter 17mm, total thickness 4mm

    • Input voltage : 2.7 - 5V (powered by 1 x 3.7V Li-ion battery)

    • Output voltage: 3.3V

    • Output current: 2.8A Constant current (8pcs high-current 7135 chips)

    • Suitable for 1 piece Cree XM-L/XM-L2/MC-E LED

    • Low voltage protection indication function: whether the voltage is lower than 2.9V, Led will slow strobe
      (it will change to 5% brightness and strobe each second). If it strobe under low mode, it mean battery has run out.

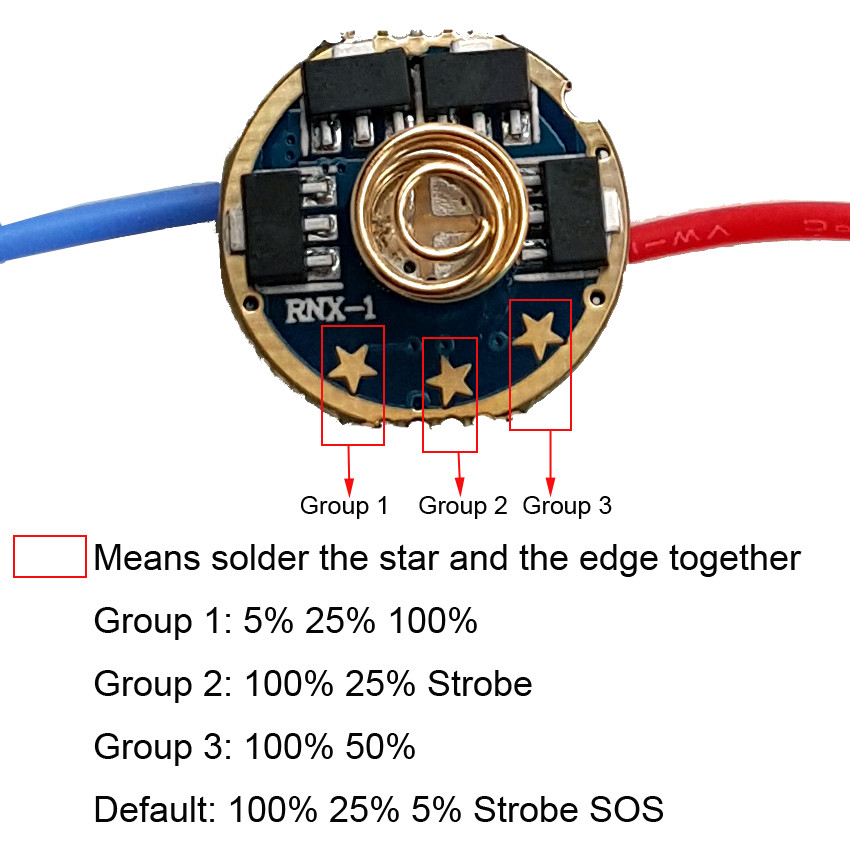

    • Default(Means don't solder anything): 100% 25% 5% Strobe SOS

    • Group 1(solder the left star and the edge together): 5% 25% 100%

    • Group 2(solder the middle star and the edge together): 100% 25% Strobe

    • Group 3(solder the right star and the edge together): 100% 50%

    • Suitable for 1 x Cree XM-L/XM-L2 T6 U2 U3 XP-L LED Flashlight.

    Package includes:

    • 1 x driver board

    Note: The green or blue board we will send randomly according to the inventory!
