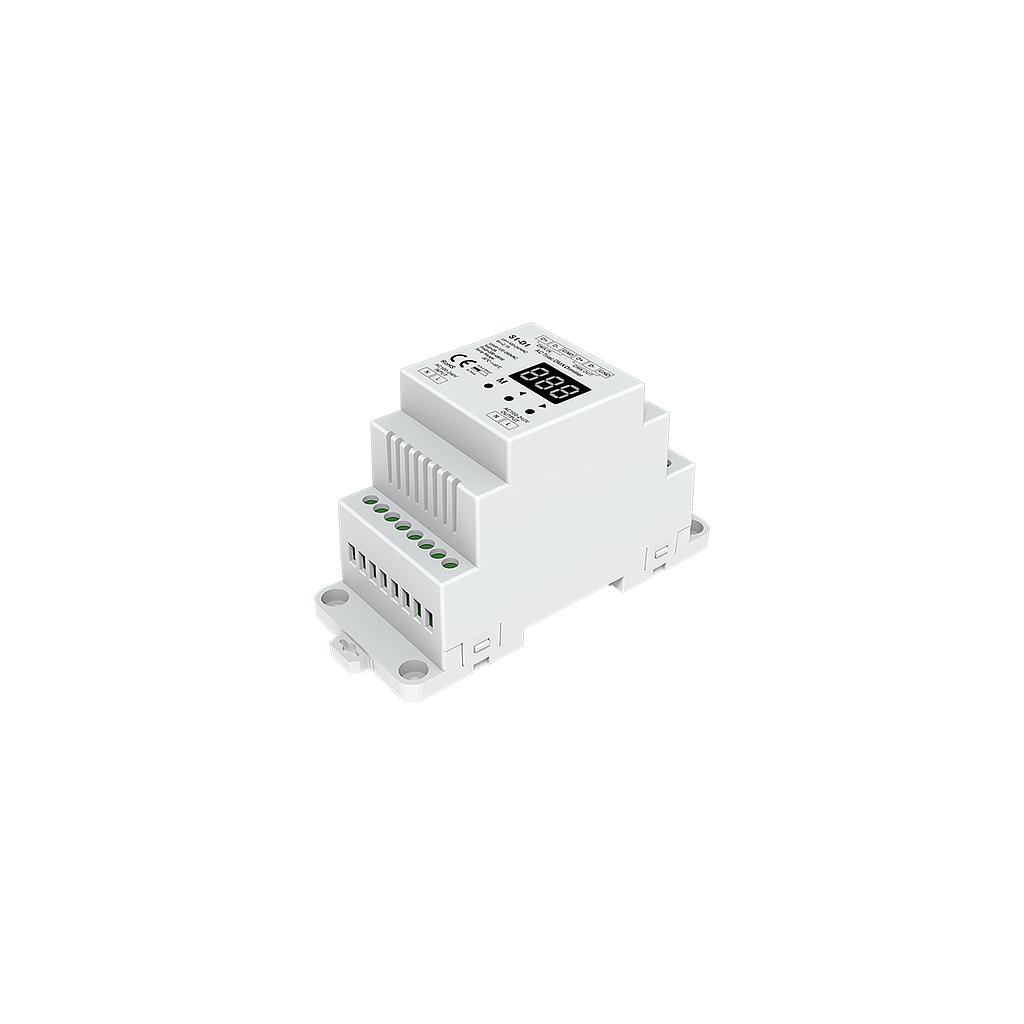

S1-D1 AC100-240V 2A Triac Dimmer 1 Channel with DMX512 Function for LED Lamp

Product Description:

• The Triac DMX512 dimmer is designed with 100-240VAC input and 100-240VAC output, safe and reliable full  isolation design to dim and switch single color LED lamps, traditional incandescent and halogen lights.

• The DMX512 dimmer is designed with standard DMX512 compliant control interface with digital numeric display  to set and show DMX address freely, can be compatible with a variety of DMX512 masters. The AC dimmer is both  triac dimmable and mosfet dimmable and comes with 1 channel output.

Feature:

• AC phase-cut mosfet dimmer with DMX512 function, digital display, one channel output.

• DMX decode mode / Stand-alone dimmer mode / Stand-alone dynamic mode.

• Standard DMX512 compliant interface, DMX address display, set DMX address freely.

• RDM bi-directional communication function.

• Under stand-alone dimmer mode, adjust and save up to 8 brightness.

• Under stand-alone dynamic mode, have 2 mode.

• Reverse-phase dimming or forward-phase dimming optional.

• Minimum brightness set from 1% to 40%.

• To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.

• Din rail or screw mounted optional.

Technical parameter：

• Input voltage: 100-240VAC

• Output voltage: 100-240VAC

• Output current: 2A

• Output power: 200-480W

• Size(mm): 115x48x67
