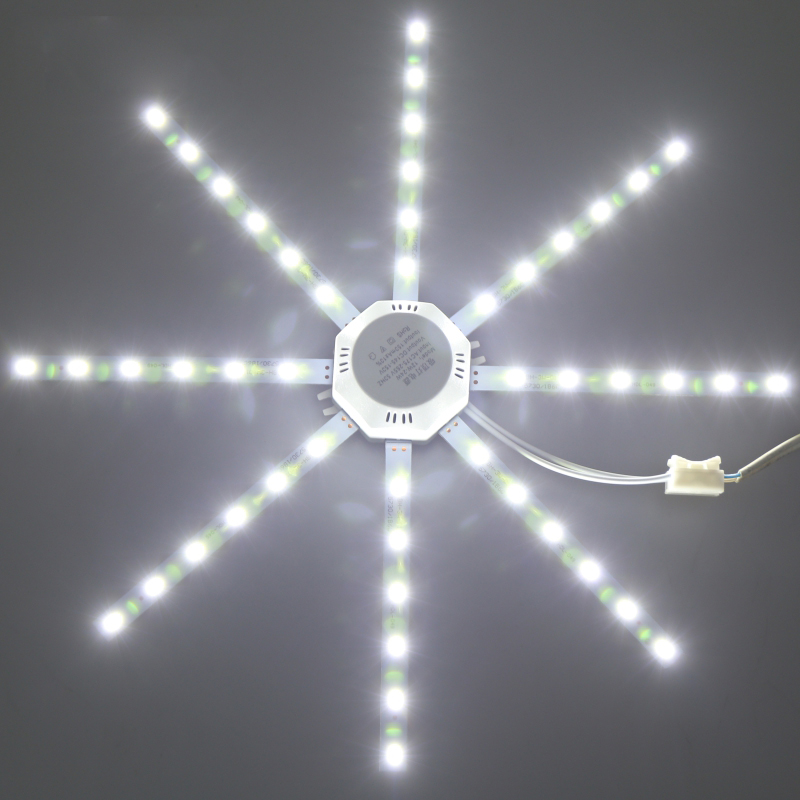

220V 5730 SMD LED Ceiling Lamp 12W 16W 20W 24W LED Light Board Emitting Cold White

https://www.satistronics.com/web/image/product.template/845/image_1920?unique=23c53c7
(0 review)

1.72 1.72 USD 1.72

¥ 12.54

Not Available For Sale


  • Wattage

This combination does not exist.


Categories :
Ceiling Lamp Module
SKU :
1934536
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Specifications:

  • Product name: 5730SMD Celling Lights

  • Shapes: octopus Round

  • Power: 12W/16W/20W/24W

  • Installation Size:  12W:185mm,16W:233mm,20W:263mm,24W:300mm

  • Forward Voltage:220V( AC175-265V)

  • Luminous Flux: 12W:900LM, 16W:1200LM, 20W:1500LM, 24W:1800LM

  • Number of the chips:  12W:24pieces,16W:32pieces,20W:40pieces,24W:48pieces

  • Color-rendering index: 75

  • Beam Angle: 120 degrees

  • Working Temperature: -20 centigrade to 60 centigrade

  • Color Temperature: Cold White: 5500-7000K

  • Lamp Body Material : Aluminium

  • Life Span: 50,000 Hours

Features:

  • High bright,high luminous efficiency

  • Instead the traditional Energy Saving & Fluorescent lights

  • 12W this celling lights instead of 21-23w Energy Saving & Fluorescent lights

  • 16W this celling lights instead of 28-35w Energy Saving & Fluorescent lights

  • 20W this celling lights instead of 35-42w Energy Saving & Fluorescent lights

  • 24W this celling lights instead of 42-45w Energy Saving & Fluorescent lights

  • Easy to install,Convenient,Contect AC220V directly

Applications:

  • Used in Dinning lighting ,bedroom lighting,Indoor Lighting.

Please note:

First insert the LED chip in the driver, and then power on, otherwise it will easily cause the LED chip to burn. If some LED chips are not light, please power off first, then pull out the LED chip and re-insert it. If it still doesn't work, please follow the above steps and try again. (Improtant: Do not insert LED chips with power on)







Wattage 12W or 20W or 24W or 16W
