22mm Cree XHP50 LED Driver Input DC7-15V (12V) Output 6V 2.4A 1 Mode / 3 Modes / 5 Modes

Price:

$ 12.15
 LED Lightings for Everything!
USD
  2. Shop
  3. 22mm Cree XHP50 LED Driver Input DC7-15V (12V) Output 6V 2.4A 1 Mode / 3 Modes / 5 Modes
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
9W G4 G9 COB LED Halogen Bulb AC110V/220V Home Light LED Dimmable Silica Gel Lamp
$ 2.37
$ 2.37
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
$ 2.29
$ 2.29

22mm Cree XHP50 LED Driver Input DC7-15V (12V) Output 6V 2.4A 1 Mode / 3 Modes / 5 Modes

https://www.satistronix.com/web/image/product.template/850/image_1920?unique=3e3d1d1
(0 review)

$ 3.47 3.47 USD $ 3.47

¥ 24.20

Not Available For Sale

  • Mode

This combination does not exist.

Contact Us
Categories :
DIY Driver Board for Flashlights
SKU :
1818126
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Description:

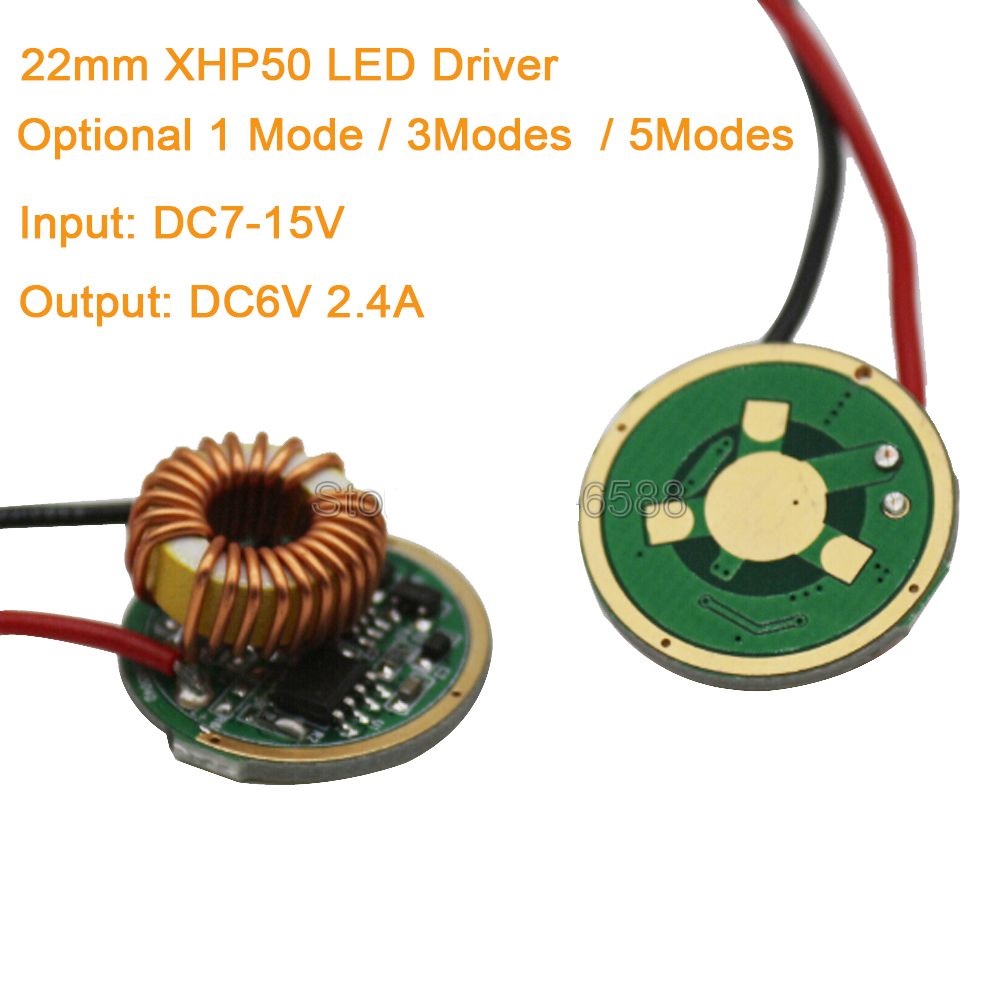

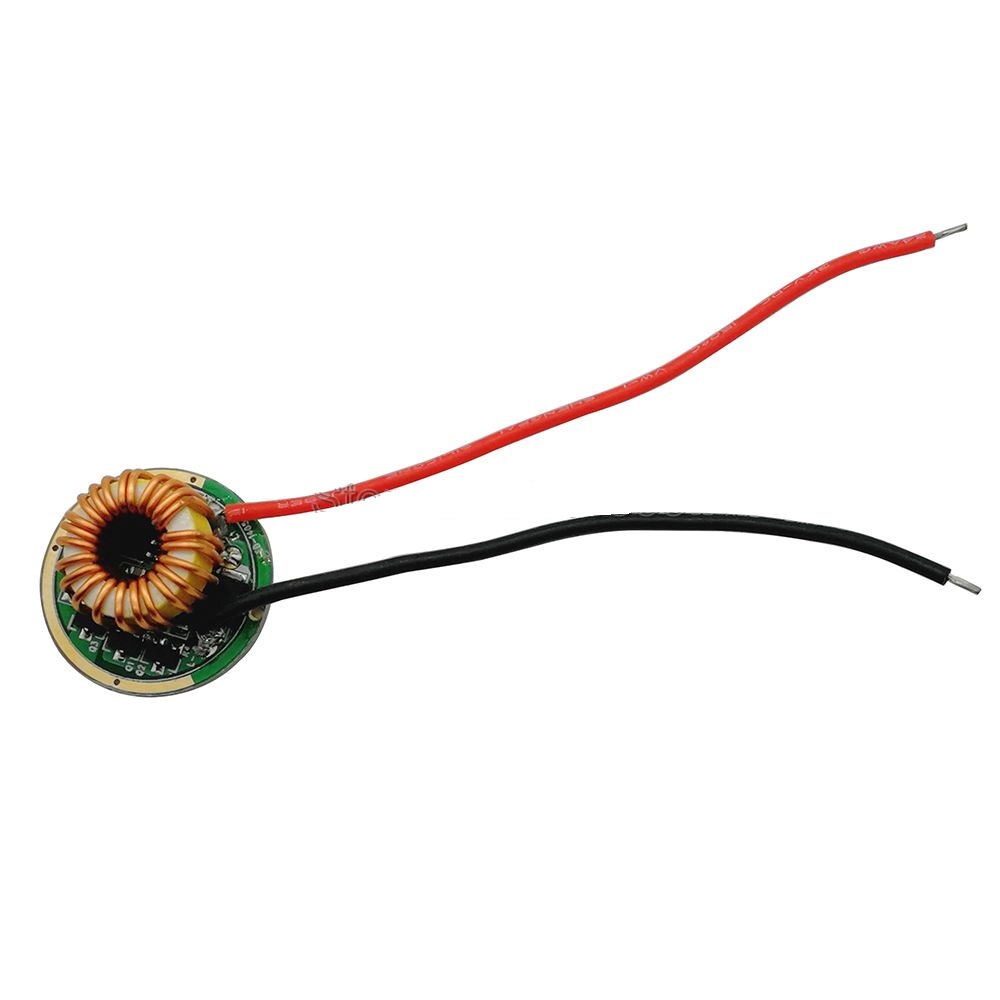

CREE XHP50 LED Driver:

  • Input Voltage:DC7V-15V

  • Current: 2.4A

  • Dimmable function: Yes

  • 5 Modes: Low (10%), mid (50%), high (100%), strobe (100%), SOS (100%)

  • 3 Modes: Low (10%), high (100%), strobe (100%)

  • 1Mode: ON/OFF Only

  • TC: 75 degree (MAX)

  • TA: 50 degree (MAX)

  • Size:(D)22x(H)12MM

Connection:

  • RED/Led+:LED Output Positive

  • White/Led-:LED Output Negative

  • Dimmable in 5 Modes

  • Operating Temperature: -20~80 degree

  • Storage Temperature: -20~80 degree

  • Function: Open circuit, Short circuit and Over loading

  • Application: Fit for 1x XHP50 6V High Power LED light.

Mode 1 Mode or 3 Modes or 5 Modes
You may also like

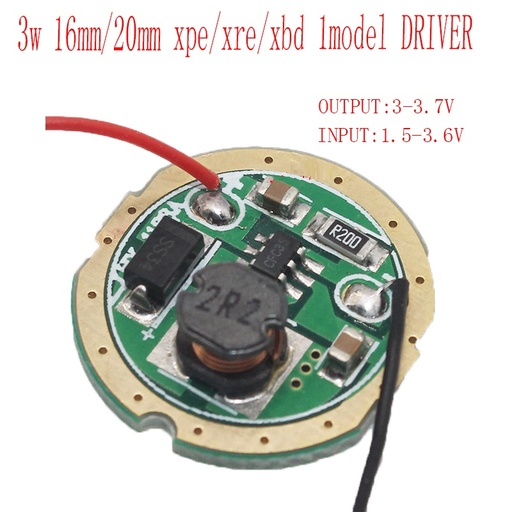

3W 16mm 20mm LED Driver Input DC 1.5-3.7V Output 3-3.7V 600-700mA 1 Mode
