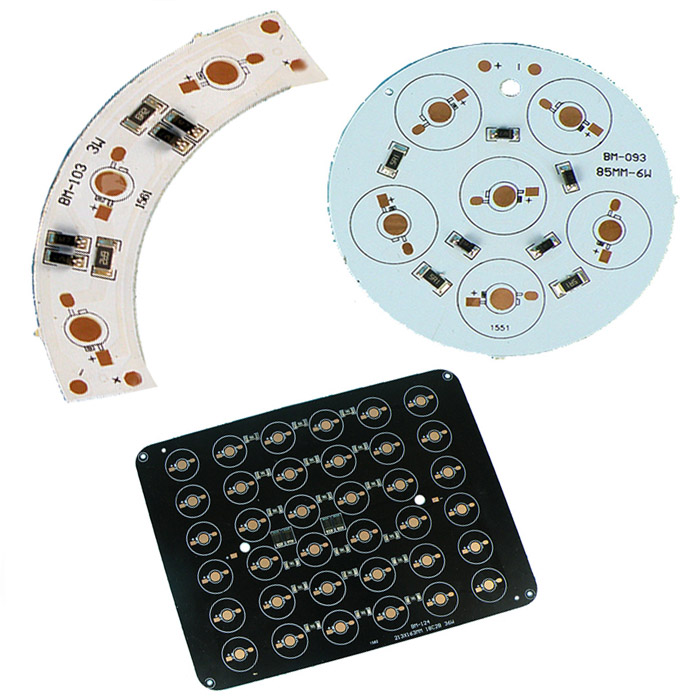

Parameters:
| Part Number | LED Points | Shape | Dimension | Input |
| 6W-AC/DC24V-Φ85mm | 6 | Circle | Φ85mm | AC/DC24V |
| 36W-AC/DC24V-213*163mm | 36 | Rectangular | 213*163mm | AC/DC24V |
| 24W-AC/DC24V-182*142mm | 24 | Rectangular | 182*142mm | AC/DC24V |
| 6W-AC/DC24V-Φ83mm | 6 | Circle | Φ83mm | AC/DC24V |
| 18W-AC/DC24V-182*142mm | 18 | Rectangular | 182*142mm | AC/DC24V |
| 3W-AC/DC12V-Arc12*105mm | 3 | Arc | Arc12*105mm | AC/DC12V |
| 9W-AC/DC12V-Φ100mm | 9 | Circle | Φ100mm | AC/DC12V |
| 9W-AC/DC12V-Φ88mm | 9 | Circle | Φ88mm | AC/DC12V |
| 24W-AC/DC24V-Φ190mm | 24 | Circle | Φ190mm | AC/DC24V |
| 3W-DC12V-Φ49mm | 3 | Circle | Φ49mm | DC12V |
| 3W-AC/DC12V-Φ52mm | 3 | Circle
| Φ52mm | AC/DC12V |
| LED-Size | 24W-AC/DC24V-Φ190mm or 6W-AC/DC24V-Φ83mm or 9W-AC/DC12V-Φ88mm or 9W-AC/DC12V-Φ100mm or 6W-AC/DC24V-Φ85mm or 3W-AC/DC12V-Φ52mm or 18W-AC/DC24V-182*142mm or 36W-AC/DC24V-213*163mm or 3W-DC12V-Φ49mm or 3W-AC/DC12V-Arc12*105mm or 24W-AC/DC24V-182*142mm |
