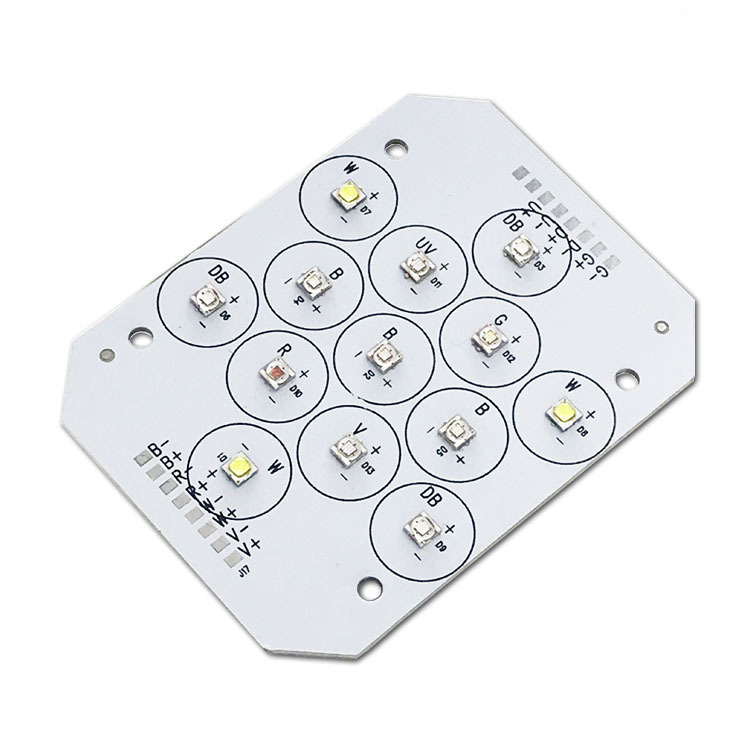

6/7 Channel Aluminum Plate AI PCB LED for Aquarium Coral Light

https://www.satisled.com/web/image/product.template/6905/image_1920?unique=99581fd
(0 review)

36.13 36.13 USD 36.13

¥ 260.00

Not Available For Sale


  • Finish

This combination does not exist.


SKU :
1942060
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Features:

  • Size: 74*56mm

  • AI same LED arrangement.

  • Replacement to expensive Cree LED for almost equal performance

  • High Quality Aluminum Heatsink for DIYer

  • Working with 13mm LED Lens

6 Channel LED Arrangement


Note: The Latest board come with 6 channels by default, take off R1 and R2 bridge and solder together the right up and down point can make the board into 7 channels. Then R1 and R2 point will be negative and positive point for V LED.  (Separate the two V LEDs to two independent channel. and input voltage for each channel will become 3-3.6V each. Input current will stay the same, 700mA each channel. )


Take off R1 and R2 bridge and solder together the right up and down point can make the board into 7 channels. Then R1 and R2 point will be negative and positive point for LED V as shown in the following diagrams:








* Working with 13mm Lens. Lens is not included

Finish PCB Only or Assembled with LED
