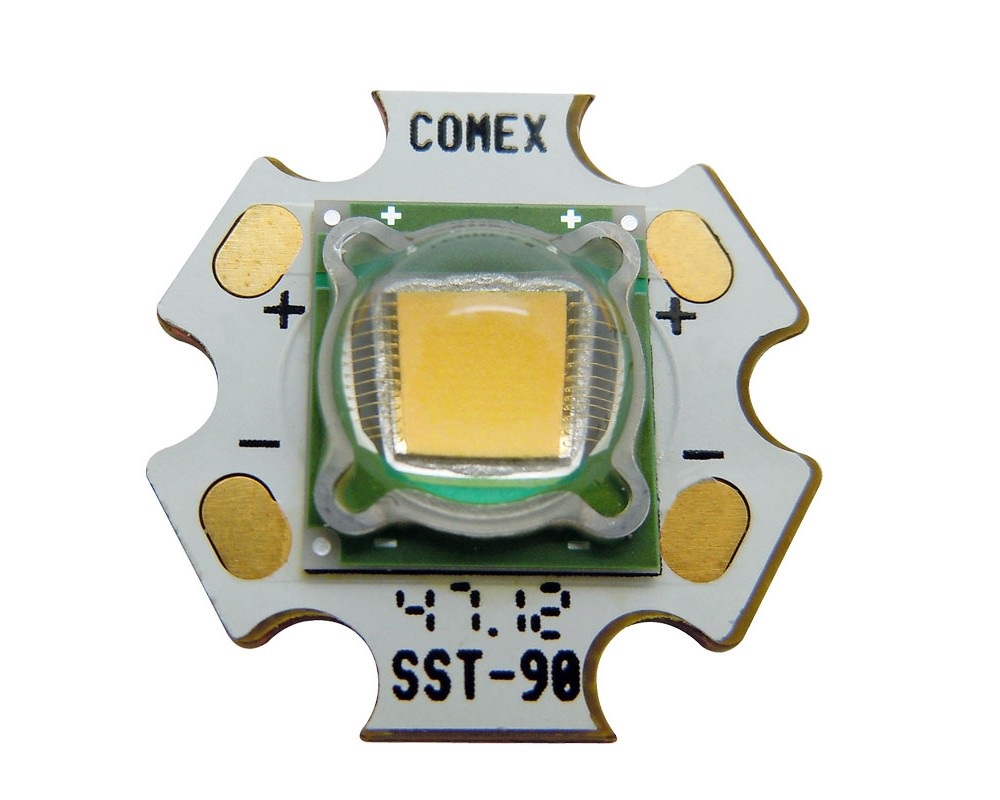

High Power 30W Luminus SST-90 LED Emitter Lamp Light White/Warm White On 20mm Copper
Categories :
Luminus LEDSKU :
1935699
100% original guarantee
Return within 30days
Worldwide Fast delivery
Description:
- Luminus SST90 LEDs
- Power 30W,
- Lumen 2250lm,
- VF 3.2-3.6V, IF 9.0A,
- Optional color temperature: Natural white(4500K/5700K/6500K), Warm white(3000K)
- Optional PCB diameter: 20mm(copper),16mm(aluminum)
- Please note: when ordering the Natural white LEDs, please specify the color temprature(4500K/5700K/6500K)
- Download Luminus-SST90-LED-Datasheet
Features:
- Extremely high optical output:
- Over 2,100 White Lumens
- Over 500 Red Lumens
- Over 950 Green Lumens
- Over 200 Blue Lumens
- Extremely high efficiency: Over 100 lumens per watt at 3.15A for white
- High thermal conductivity package - junction to case thermal resistance of only 0.64 °C/W
- Large, monolithic chip with uniform emitting area of 9 mm2
- Lumen maintenance of greater than 70% after 60,000 hours
- Environmentally friendly: RoHS compliant
- Variable drive currents: less than 1 A through 9 A
- High reliability
- Electrically isolated thermal path
Applications
- Replacement Lamps
- Architectural Lighting
- Retail Lighting
- Residential Lighting
- Consumer Portable
- Spot Lighting
- High Bay Lighting
- Wide Area Lighting
- Street Lighting
- Medical Lighting
- Emergency Vehicle Lighting
- Displays and Signage
| Emitting Color | Warm White or White or Blue |
