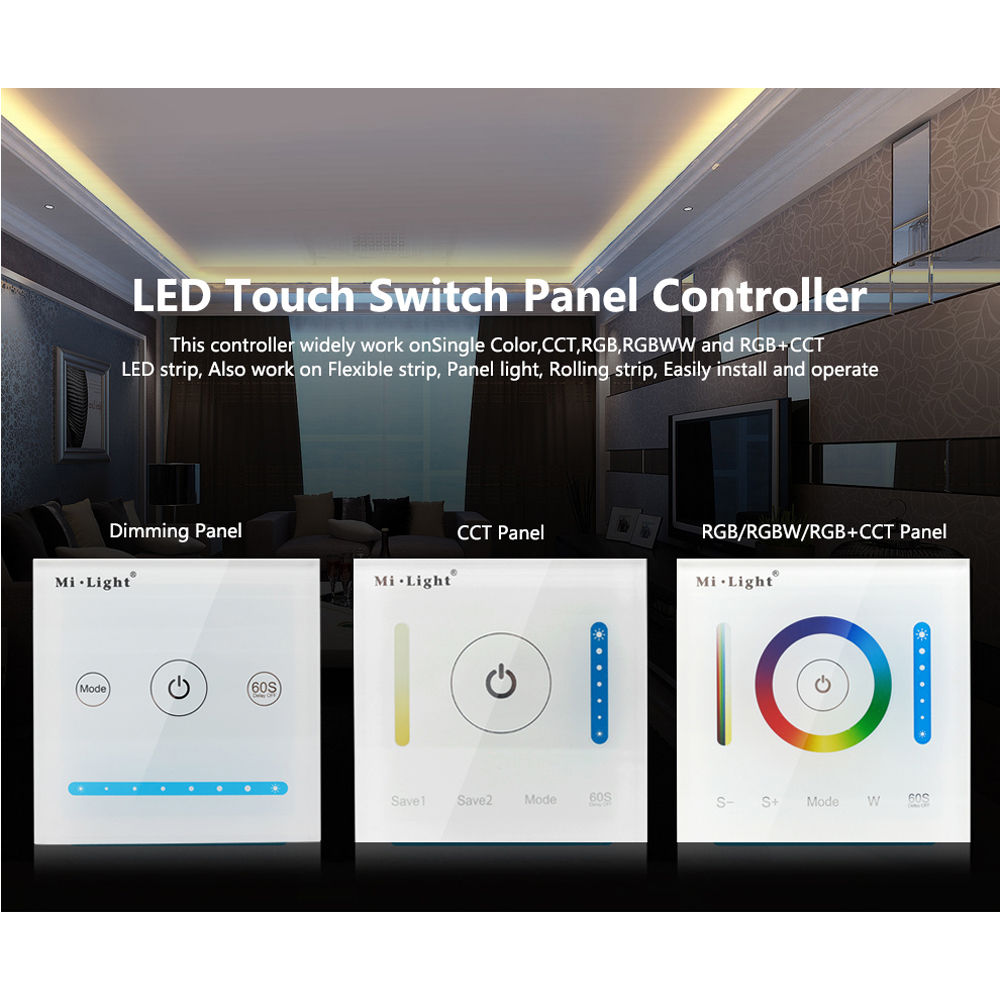

Milight Smart Panel Led Controller Color Temperature CCT Dimming RGBW RGB CCT LED Touch Switch

Price:

12.77


5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
1.06
1.06
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
5.14
5.14

Milight Smart Panel Led Controller Color Temperature CCT Dimming RGBW RGB CCT LED Touch Switch

https://www.qskj.cc/web/image/product.template/3638/image_1920?unique=fb4d6cf
(0 review)

18.25 18.25 USD 18.25

¥ 132.00

Not Available For Sale


  • Part Number

This combination does not exist.


Categories :
Mi-Light Series
SKU :
1920351
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Parameters

  • Model No:P1/P2/P3

  • DIM:Brightness Dimming Touch Panel Controller

  • CCT:Color Temperature Panel Controller

  • RGBW:RGB RGBW RGB+CCT Panel Controller

  • Working Temperature:-20-60C

  • Working Voltage:DC12-24V

  • Total Output Max:15A

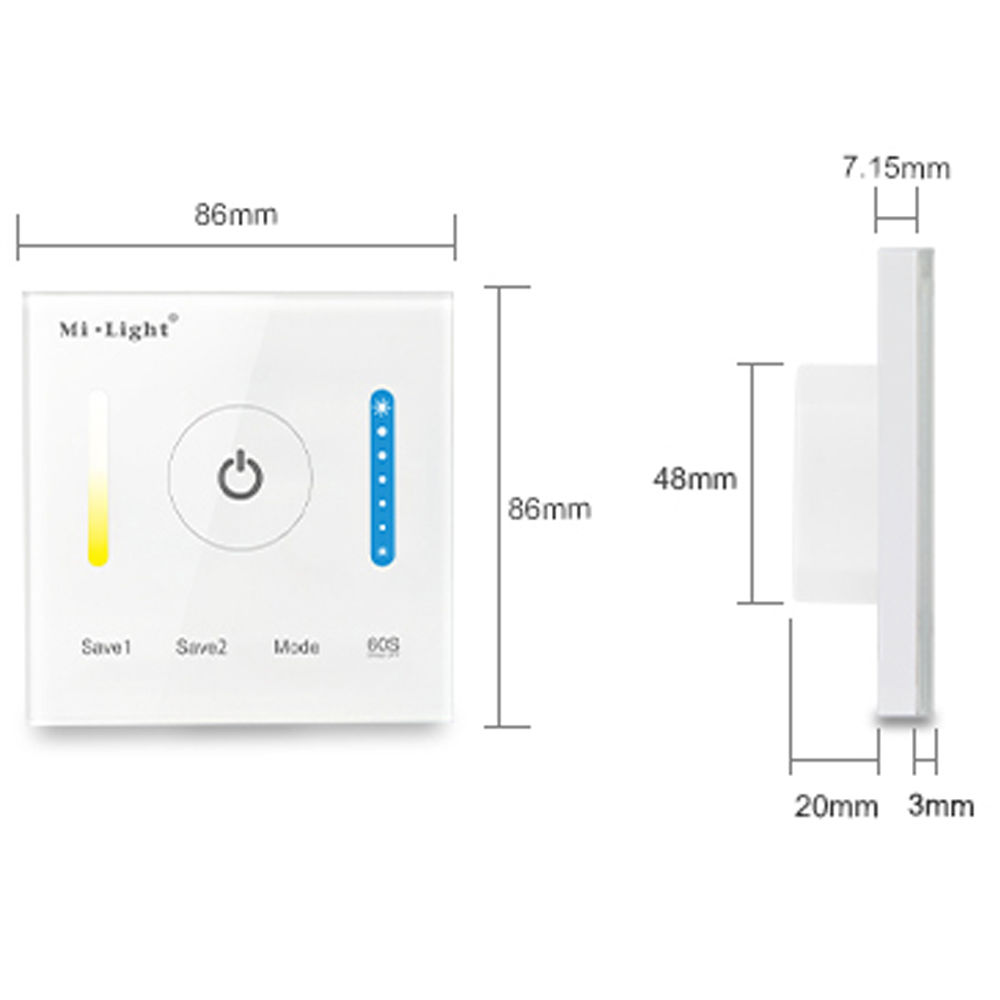

  • Panel Size:L86*W86mm

  • Output Max:5A/Channel

  • Output Connection:Common anode

  • Weight:177g

Attention:

  • Please check the input voltage of the constant voltage power supply is in accordance with the controller,and please check the connection of both the cathode and anode.

  • The working voltage is DC12-24V,the controller will be broken if the vlotage is higher than 12-24V.

  • When installation,pls handle with care to avoid the broken of the glass panel.

19we125267

1951215264

11481511345

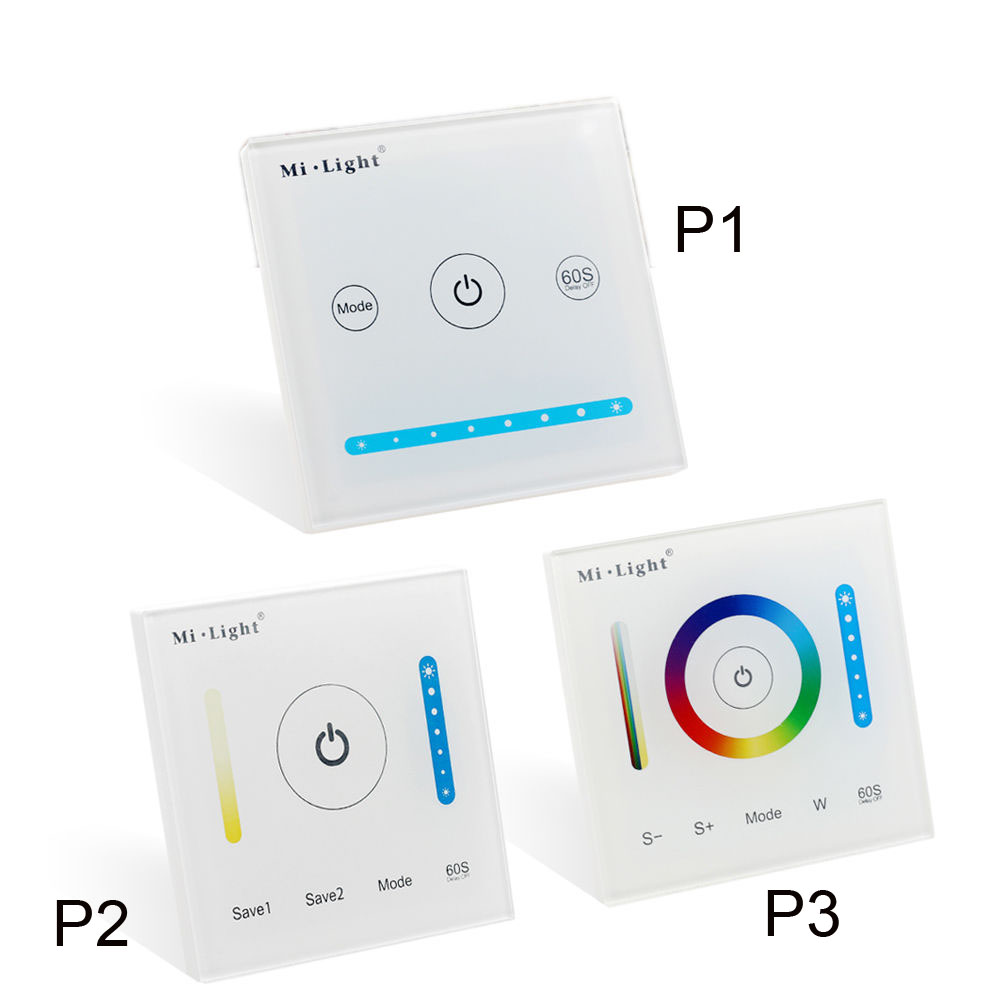

Part Number P1 or P2 or P3
