Optical Glass Lens 57mm + Reflector + Fixed Bracket Holder Suite for 20W-100W Power LED 60 Degree Focus

https://www.satisled.com/web/image/product.template/1142/image_1920?unique=463a7f0
(0 review)

$ 3.17 3.17 USD $ 3.17

¥ 22.00

Not Available For Sale

  • Reflector Type

This combination does not exist.

Contact Us
Categories :
Glass Optical Lens
SKU :
2043408
Share :
Terms and Conditions :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Description:

57MM Glass Lens + Reflective Cup + Bracket

Lens Parameters:

  • Diameter:57mm
  • Height: 21.9=60 Degree

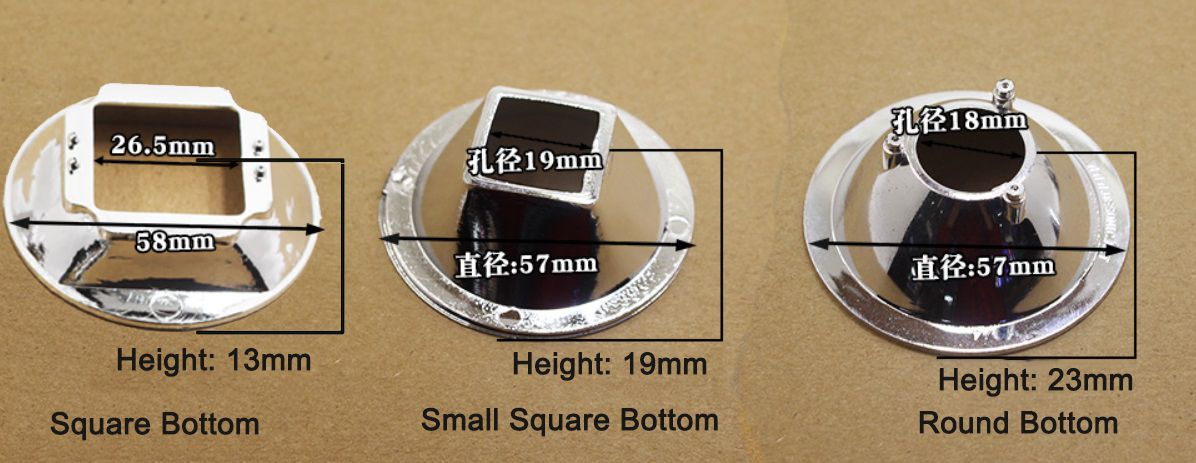

Reflective Cup Parameters:

  • Diameter: 57mm
  • Height: Large Square Hole: 13mm; Small Square Hole: 20mm; Round Hole: 23mm
  • Bottom Hole size: Large Square Hole: 26.5mm; Small Square Hole: 19mm; Round Hole: 18mm
  • Application: Fit for 10W High Power LED

Bracket Parameters:

  • Diameter: 85mm (Inclouding Screw Part)
  • Diameter: 75mm (Not Inclouding Screw Part)
  • Height: 6.1mm

The height of 57mm 60 degree Lens + Reflective Cup Large Square Hole + Bracket is 35mm

The height of 57mm 60 degree Lens + Reflective Cup Small Square Hole + Bracket is 41mm

The height of 57mm 60 degree Lens + Reflective Cup Round Hole + Bracket is 41mm



Reflector Type Square Bottom or Round Bottom or Small Square Bottom
