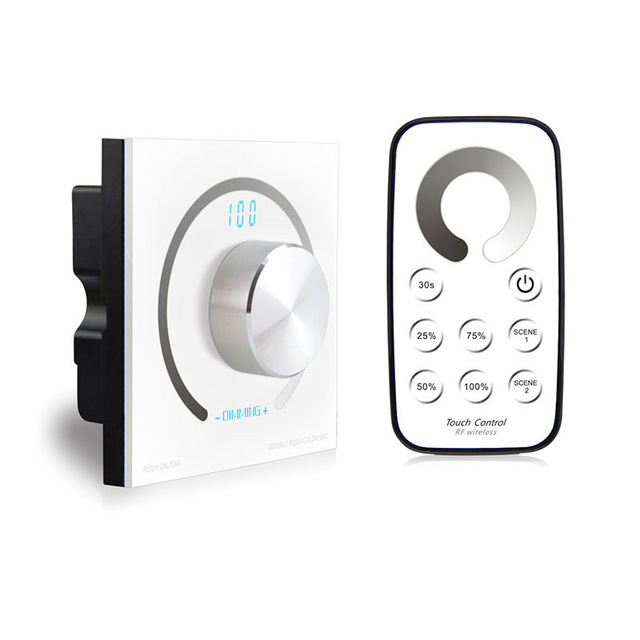

DC12-24V Switch Knob LED Dimming Controller /Brightness Rotary Touch Panel Dimmer with RF Remote Control

https://www.satistronix.com/web/image/product.template/2092/image_1920?unique=fb4d6cf
(0 review)

24.46 24.46 USD 24.46

¥ 177.10

Not Available For Sale


    This combination does not exist.


    SKU :
    1820008
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Features:

    • Automatically adapt to LED light which works from DC12V-24V.

    • Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.

    • Workable for dimming, color temperature, RGB control.

    • 2048 grey scales per channel, led lamp is more rich and vivid without flash.

    • Optional output frequency 0.5K、1K、2K、4K、8K.

    • Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.

    • Can compatible with T series wireless remote control in long distance.

    • Using Encoder rotary knob, instead of potentiometer, more durable.

    Product parameter:

    Model: K1

    • Input Voltage: DC12V-24V

    • Load Current: 4Ax3CH Max 12A

    • Optional output frequency: 0.5K、1K、2K、4K、8K

    • Grey Scale Level: 2048×3

    • Dimming Range: 1%-100%

    • Max Output Power: 144W(12V)/288W(24V)

    • Working Temperature: -20°C~55°C

    • Dimensions: L86xW86xH36(mm)

    • Weight(N.W): 130g

    Model: Wireless Remote(T1)

    • Input Voltage: 3V(CR2032)

    • Working Frequency: 433.92MHZ

    • Remote Distance: 30M

    • Working Temperature: -20°C~55°C

    • Dimensions: L106×W56×H9(mm)

    • Weight(N.W): 40g
