DC12V 24V 3CH Wireless LED RGB Controller RF Full Touch Remote Controller

https://www.satisled.com/web/image/product.template/2103/image_1920?unique=99581fd
(0 review)

15.59 15.59 USD 15.59

¥ 112.20

Not Available For Sale


    This combination does not exist.


    Categories :
    RF Controller
    SKU :
    1820052
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summarization:

    Full-color touch controller is a high-end touch controller which adopts latest capacitive trigger andwireless technology. The controller has features such as large current, low power consumption; remote control adopts high precision capacitance touch control chip, has color ring and buttons function, increases the touch sensitivity, reduces trigger which caused by mistake. You can use remote control to switch the modes of RGB strips, and also can change the brightness and speed.It has advantages such as far control distance, high touch sensitivity, strong driving ability, stable performance. The product can control a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, panel light etc.

    Technical Parameters

    Controller

    • Supply voltage: DC12-24V

    • Working current: <=6A/CH

    • Connection method: Common anode

    • External dimension: L83*W79*H33 mm

    • Packing size: L185 Χ W135 Χ H50 mm

    • Static power consumption: <1W

    • Output power: DC12V: <216W, DC24V: <432W

    • Output frequency: 900Hz

    • Net weight: 189g

    • Gross weight: 347g

    Remote Control

    • Working temperature: -20-60℃

    • Power supply mode: AAA * 3

    • Supply voltage: 1.5V * 3

    • Standby power consumption: 0.025Mw

    • Static current: 85Ua

    • Working current: 200uA

    • Remote distance: > 20m

    • Standby time: >6 months

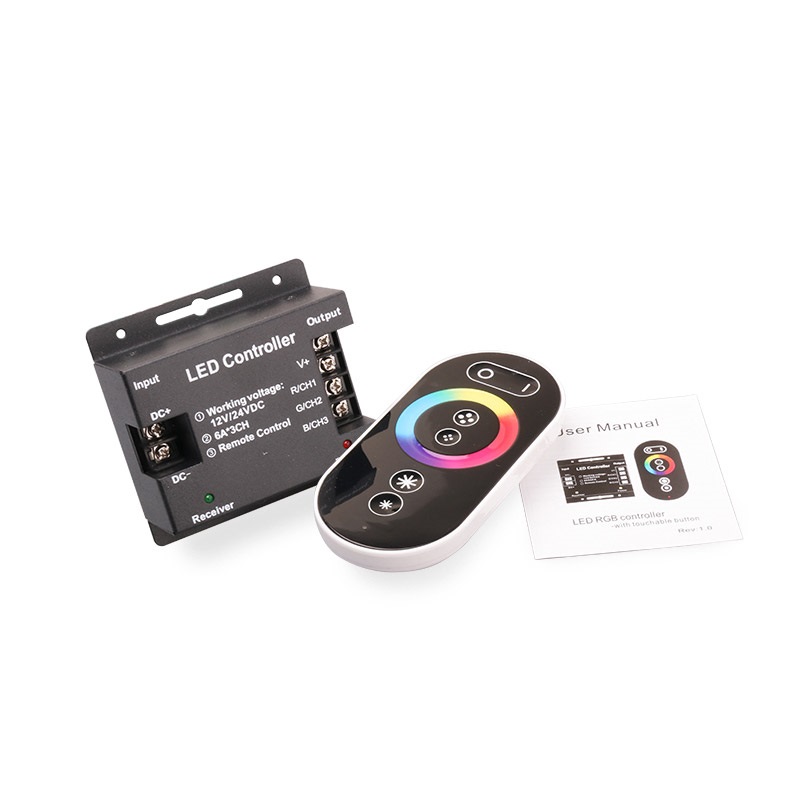

    Package included:

    • 1*main controller

    • 1*RF remote controller
