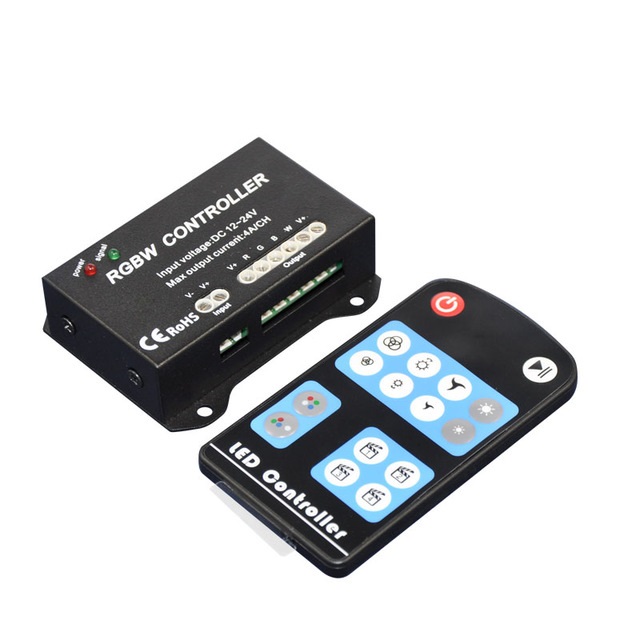

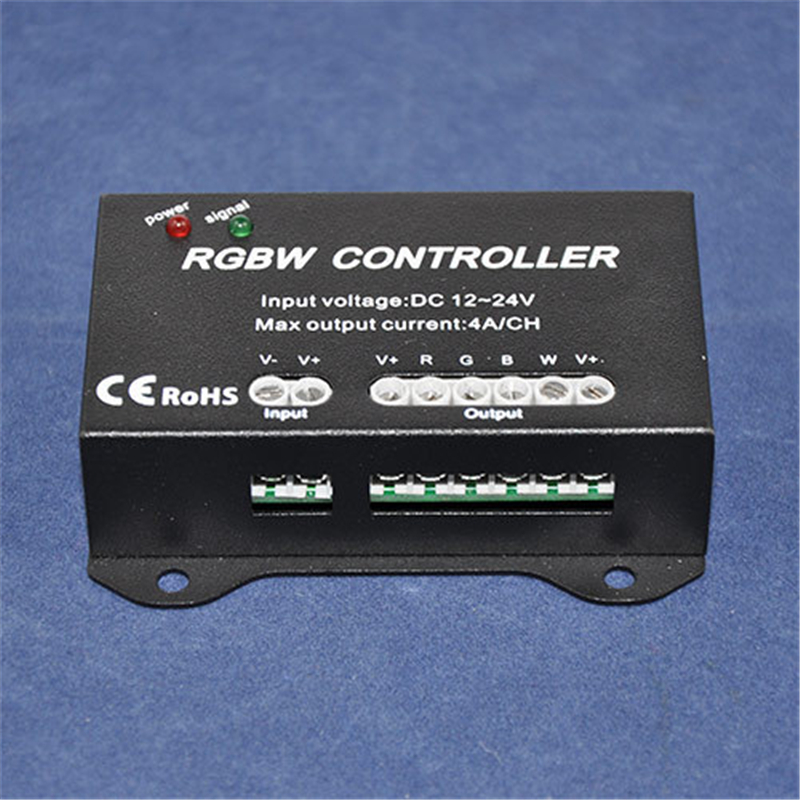

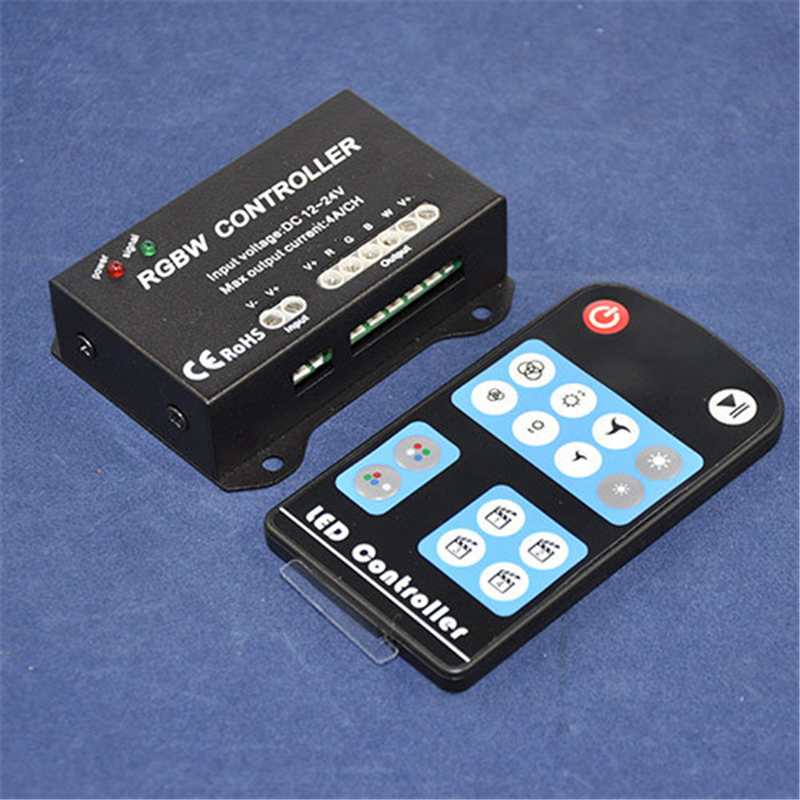

DC12-24V RGBW 4 Channel LED Controller for RGB and RGBW LED Lamp with RF Remote

 Summarization

RGBW 4 channel controller is a multifunction controller, mainly used for control 4 channel lamps, it supports switch the mode from RGBW to RGB+W, at the same time, under each large mode, it supports switch mode from 39 kinds small mode; This controller can control RGB and RGBW lamps, users no need to purchase a variety of controller, then can achieve the effect you want, also RGBW mode can realize pure white light effect that RGB lamps and lanterns can't reach.

Technical parameters

• Working temperature: -20-60 degree

• Supply voltage: DC 12-24V

• Ouput voltage: DC 12-24V

• Output connect way:common anode (6 line with 4 loop)

• External dimension: L76.6*W59*H22.2 mm

• Packing size:L103*W70*H43 mm

• Net weight: 0.133kg

• Gross weight: 0.152kg

• Remote control static state current: <10uA

• Maximum output current : 4*4A

• Maximum output power: 192W/12V   384W/24V

• Remote control distance: <=25M

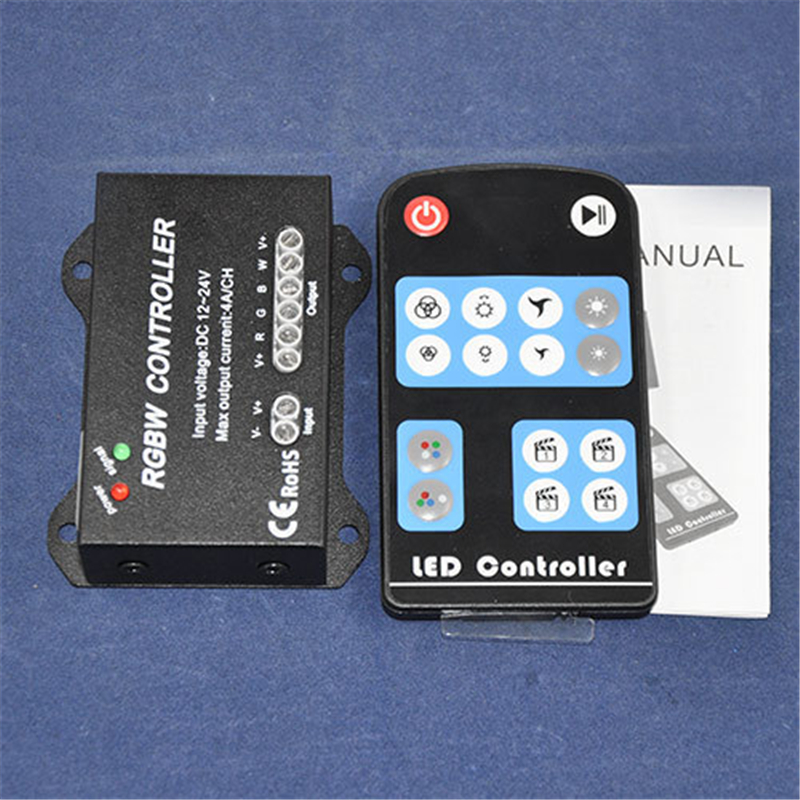

Packing Included:

• 1 x RGBW Controller

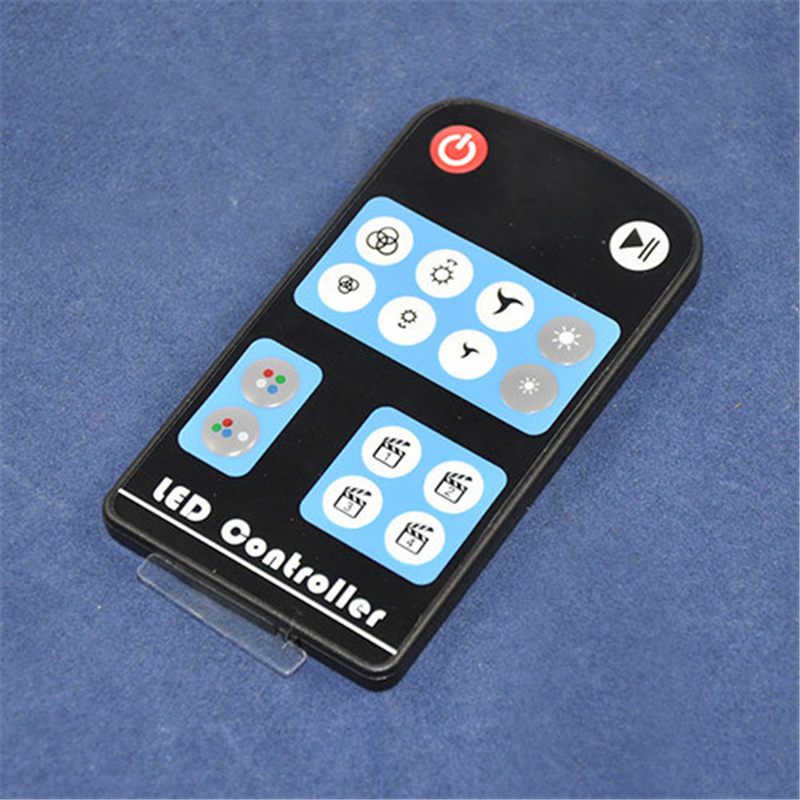

• 1 x RF Remote
