Constant voltage 4CH/16CH SPI/DMX512 Pixel LED Light Controller 6803/2811/2801 Series

https://www.satisled.com/web/image/product.template/1988/image_1920?unique=99581fd
(0 review)

132.67 132.67000000000002 USD 132.67

¥ 954.80

Not Available For Sale


    This combination does not exist.


    Categories :
    SPI Controller
    SKU :
    1820136
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summary:

    The Ethernet-SPI/DMX pixel light controller is dedicated to converting the Ethernet signal into SPI pixel signal, which is designed for large project with high-density pixel light, such as matrix panel lights, construction’s contour lamp, etc. Besides converting Ethernet-based control protocols into various LED driving IC signal, it also outputs DMX512 signal at the same time, convenient for the connection of different types of LED lamp, and to achieve the unified control of all kinds of LED lamp in the same poject.

    Specifications:

    Model

    204

    216

    Supply voltage & max current

    DC5-24V, 7A*4

    DC5-24V, 3A*16

    Control pixels

    CH680/CH*4

    CH340/CH*16

    Input Ethernet control protocol

    ArtNet

    ArtNet

    Output Control IC

    6803/8806/2811/2801/3001/9813 Series

    Output DMX512

    One port 1x512 Channels)

    Two port 2x512 Channels)

    Working Temperature

    -20℃55℃

    -20℃55℃

    Product size

    L166*W110*H31mm

    L258*W145*H41mm

    Details:

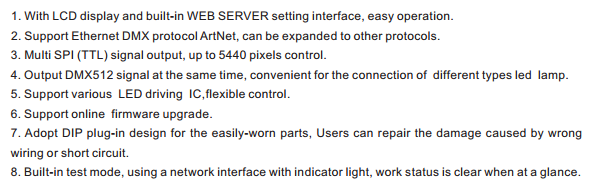

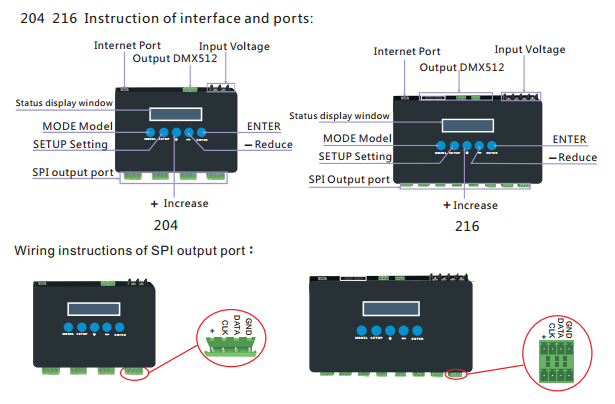

    Basic Features:

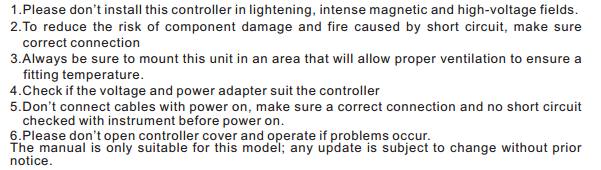

    Safety Warnings:

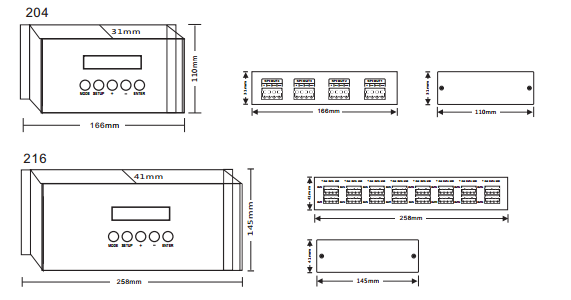

    Dimension:

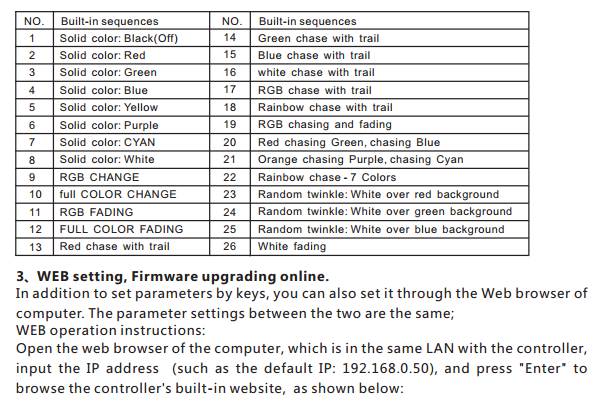

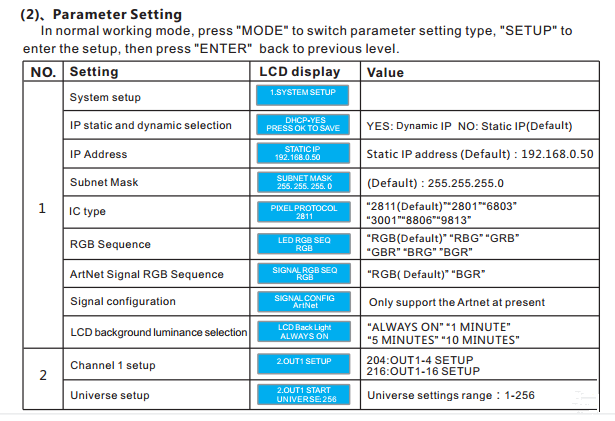

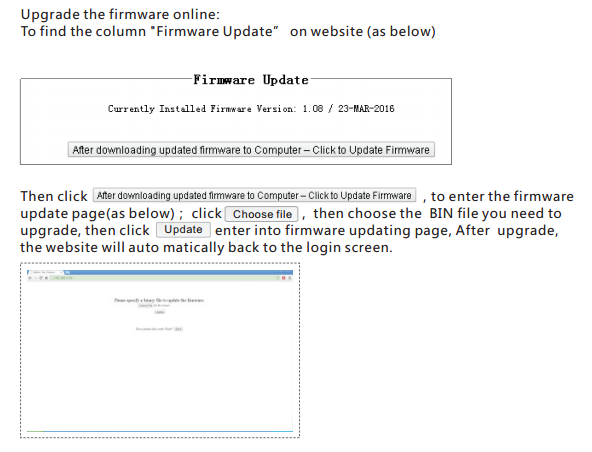

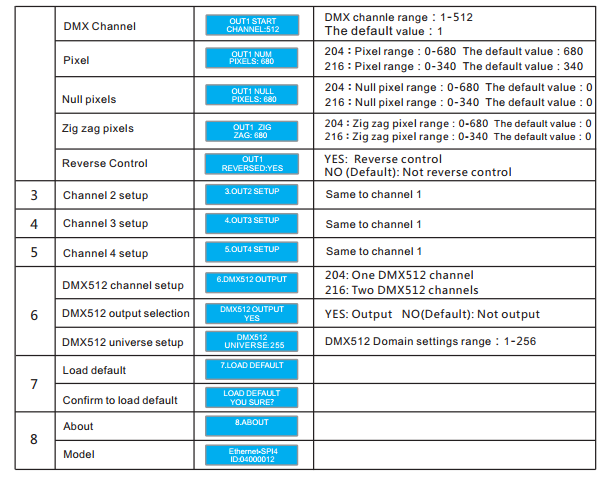

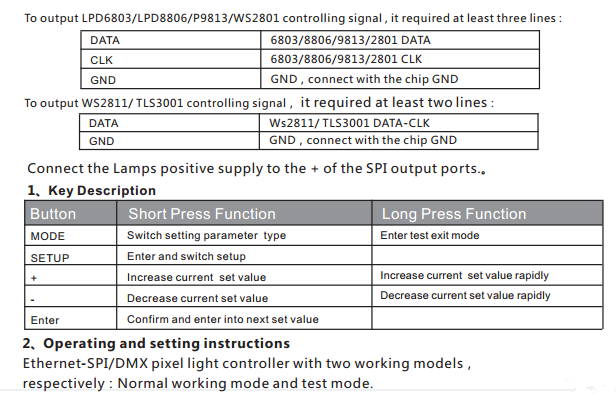

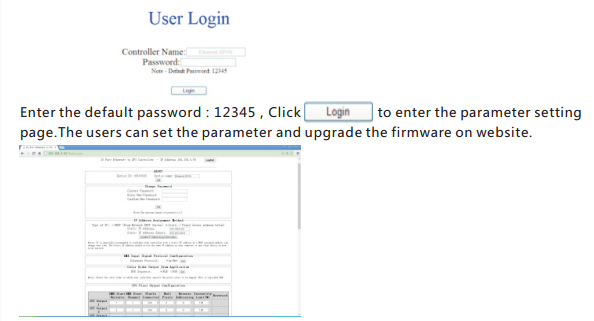

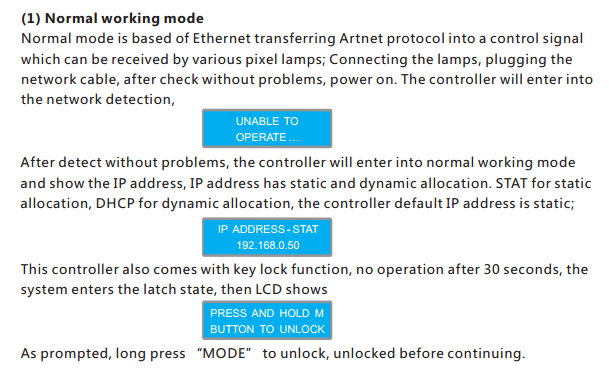

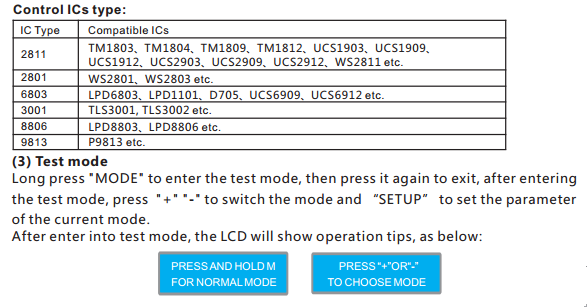

    Operating instruction:

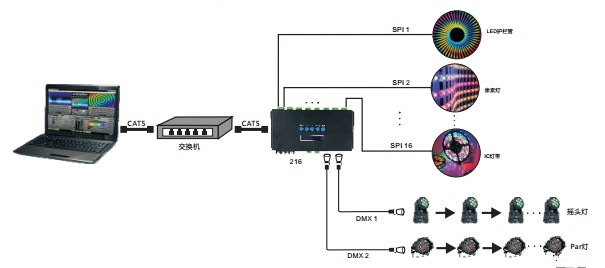

    Conjunction Diagram:

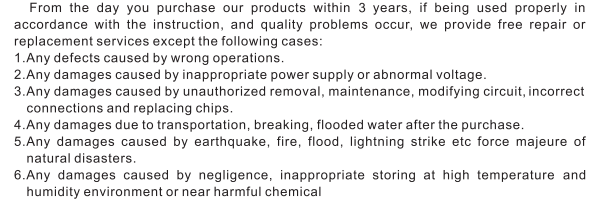

    After-sales:

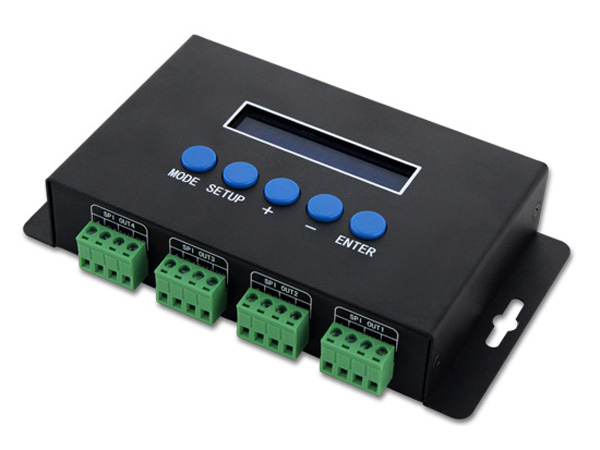

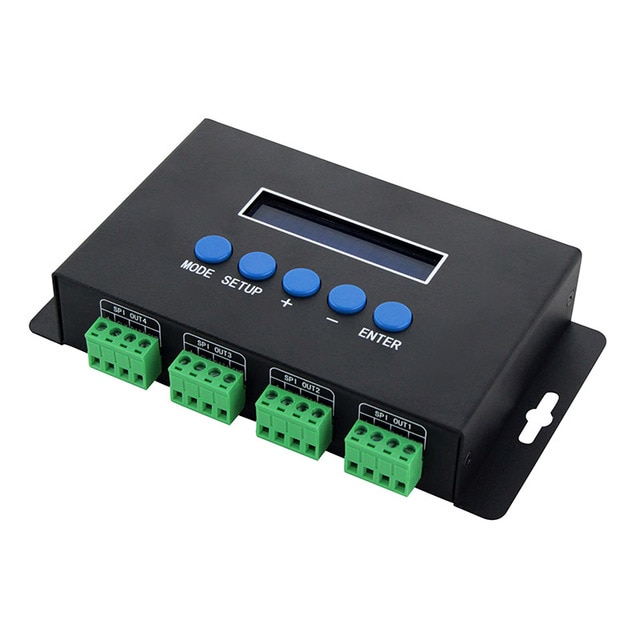

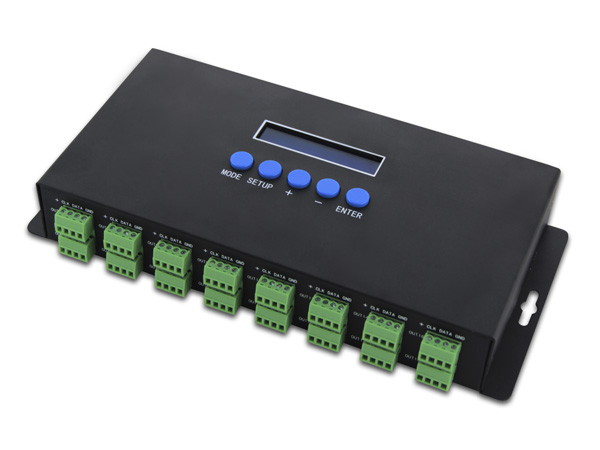

    Photos for Product:

    204

    216
