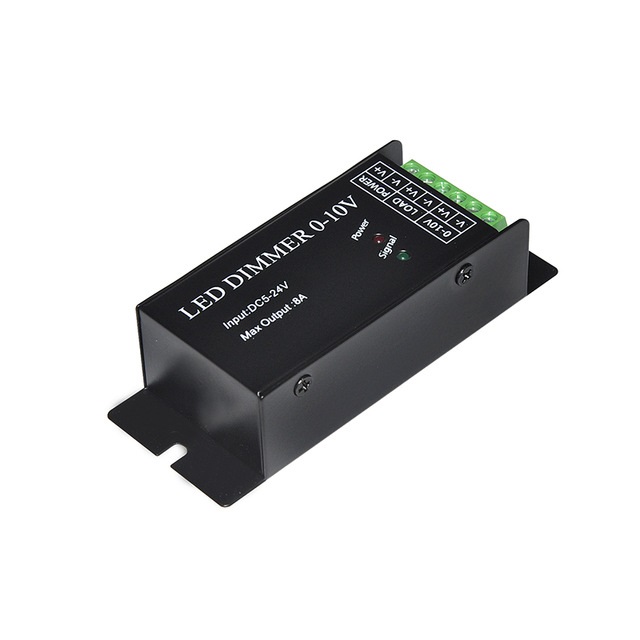

0-10V Voltage Adjust Dimmer input 5-24V 8A Max Output

https://www.satisled.com/web/image/product.template/445/image_1920?unique=d27fcb4
(0 review)

$ 10.74 10.74 USD $ 10.74

¥ 72.60

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    0-10V LED Controller
    SKU :
    1820141
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Technical parameters

    • Working temperature:-20-60 degreen
    • Supply voltage: DC5-24V
    • Input:0-10v dimmer signal
    • Output current : ≤8A
    • Static power: : <1W
    • Output power:  12V<96W,  24V<192 W
    • Output: 1 channel
    • Connect mode: common anode
    • Net weight: 112g    Gross weight: 135g
    • Size: 108*42*27mm
    • Package size: 110*50*40mm

    Function

    • This dimmer have small sharp, through input 0-10V analog singnal to control load output, dimmer provide 0-10V port, it can external input 0-10V dimming, and also can connect potentiometer to dimming; The dimmer output signal adopt most advanced PWM digital brightness adjustment technology, can control a variety of lamp whose sourse of light is LED. For instance, point sourse of light, flexible led strip, wall washer lamp, glass curtain wall light and so on.

    Package included:

    • 1 * Led Dimemr(input 0-10V)
