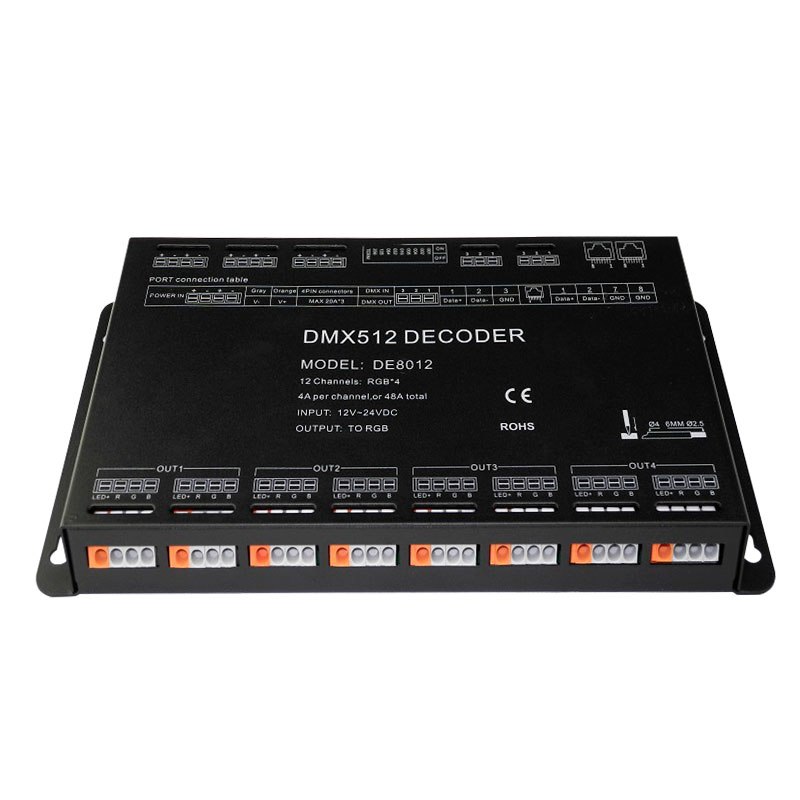

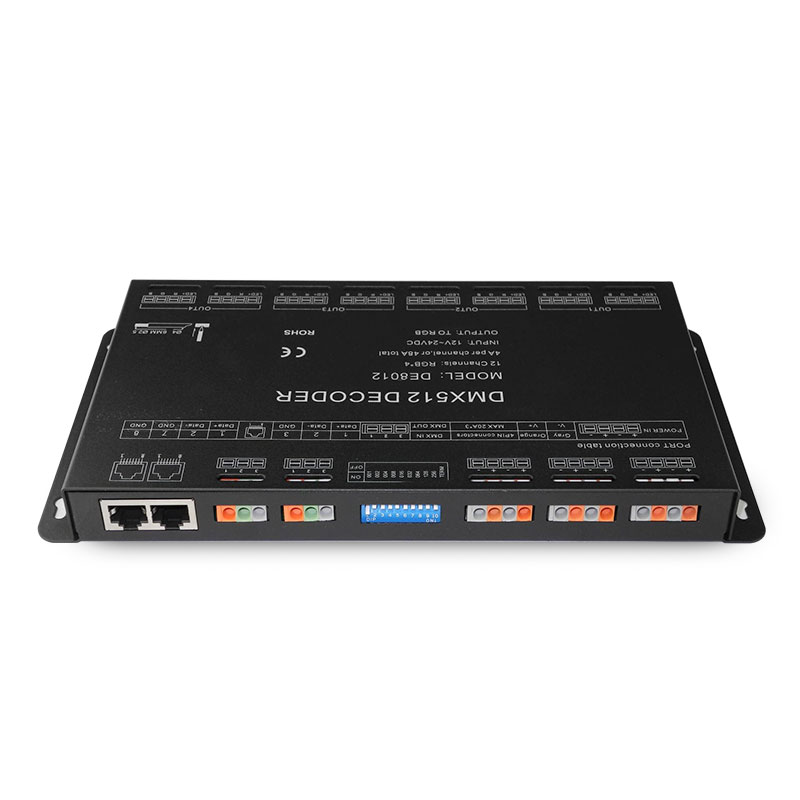

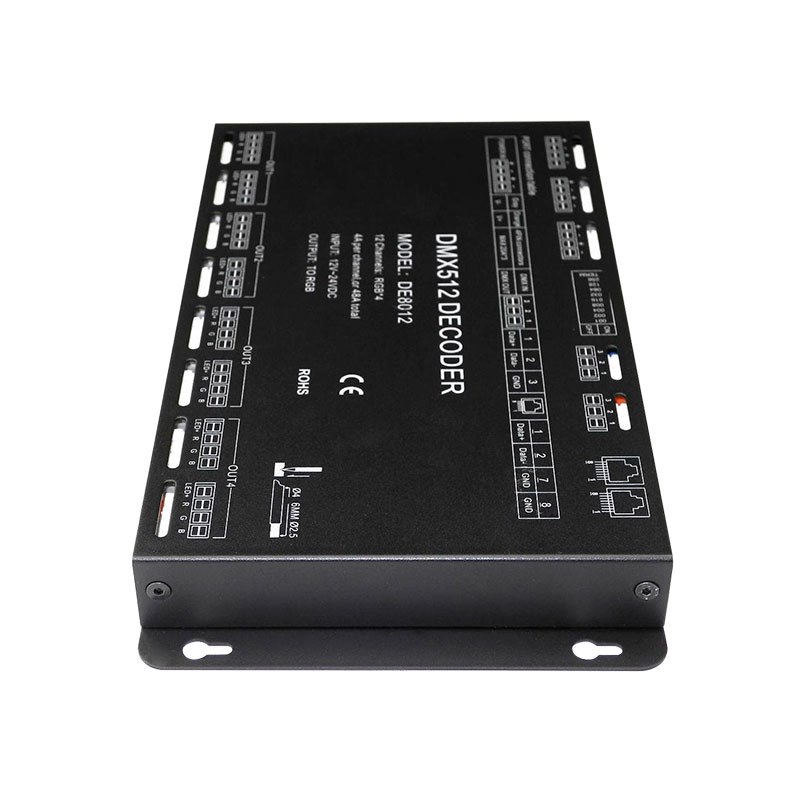

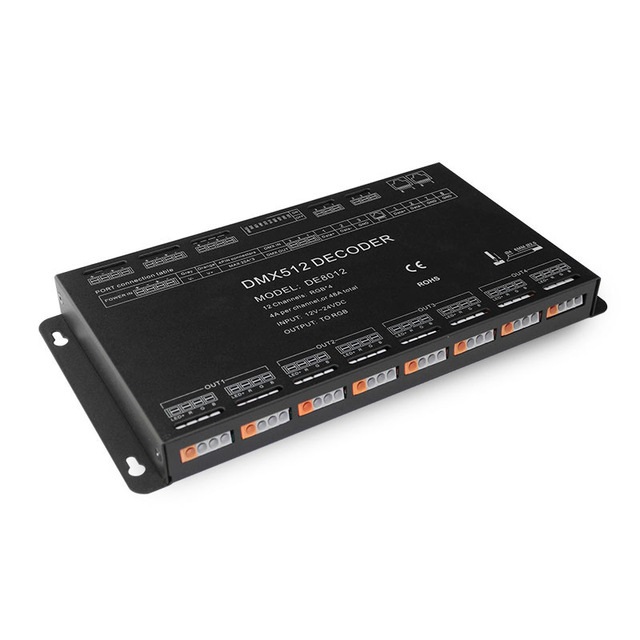

DC12-24V 12CH Multi-Channel RGB DMX512 Decoder for Light Show Project

https://www.qskj.cc/web/image/product.template/2064/image_1920?unique=9cde222
(0 review)

70.07 70.07000000000001 USD 70.07

¥ 508.20

Not Available For Sale


    This combination does not exist.


    Categories :
    DMX controller
    SKU :
    1920189
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Description:

    • Meet with standard DMX512 basis border agreement

    • Gray level 256, full color drive control.

    • No flicker, high frequency output, no jitter.

    • 12 channels, single channel maximum 4 amp output, the total output is not more than 48 amp.

    • Cooperate with control system, can realize rich change effect

    • It can be set the lamps' DMX address freely.

    • Good anti-jamming, humanization terminal design.

    Parameters:

    • Input Voltage: DC12-24V

    • Output Current:4A/CH*12CH Max48A

    • Contrl Channels:12CH

    • Max Power:576W(12V)/1152W(24V)

    • Frequnce:5000Hz

    • Signal Input:DMX512 Digital Signal

    • Work Temp:-30-70℃

    • The Light Gray Level:256

    • Protection Grade:IP40

    • Gross Weight:460g

    • Pruduct Size:L250*W130*H24(mm)

    DMX-512 control signal connection:

    • DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative end, in pressure welding DMX signal line plug should pay special attention to polarity. DMX512 controller input and output signal positive,signal nagative,signal ground with decoder input interface corresponding connection.

    • DMX512 master output and decoder's transmission lines can't be over 300 meters.

    • When contacting 32 pieces of decoders, DMX signal must add a signal amplifier such as DMX121,cascade can't more than 4 PCS.
