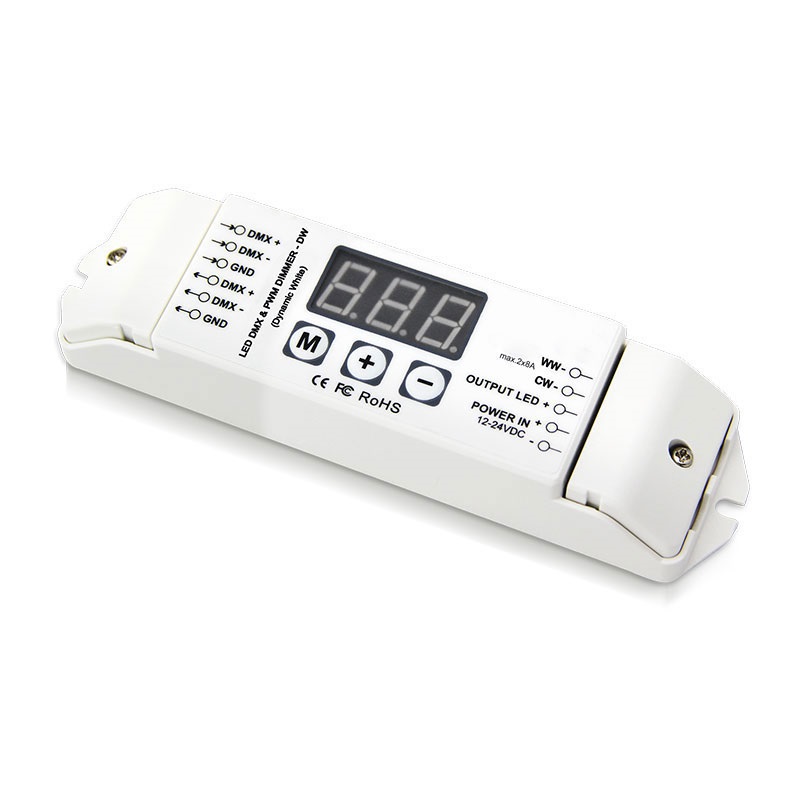

2-Channel Constant Voltage PWM LED DMX512 Decoder Controller LED Bulb Lamps

https://www.satisled.com/web/image/product.template/913/image_1920?unique=fb4d6cf
(0 review)

34.80 34.800000000000004 USD 34.80

¥ 253.00

Not Available For Sale


    This combination does not exist.


    Categories :
    DMX controller
    SKU :
    1920195
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summary:

    DMX512 constant voltage decoder which is developed only for constant voltage LED lamps. It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal. User can choose 1-2 output channels, max 8A output each channel, 4096 grey scales. It can be used as DMX512 master or as DMX decoder to connect computerized digital output consol with analog silicon case and controls LED lamps of architecture and lighting.

    Specifications:

    Input voltage

    DC12V~DC24V

    Max load current

    8A/CH*2

    Max output power

    192W(12V), 384W(24V)

    Input signal

    DMX512/1990

    Output signal

    Constant Voltage PWMx2

    Grey scale

    4096 levelsx2

    Decode channel

    2CH

    DMX512 socket

    Terminal block

    Product size

    L176*W46*H30mm

    Details:

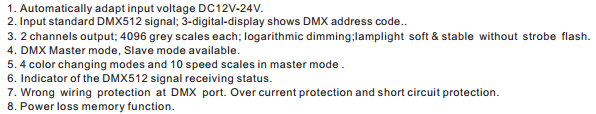

    Basic Features:

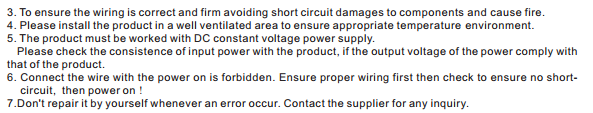

    Safety Warnings:

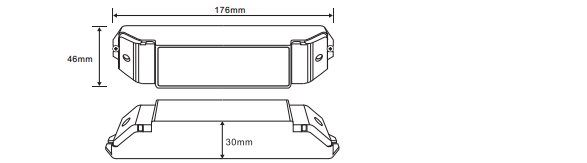

    Dimension:

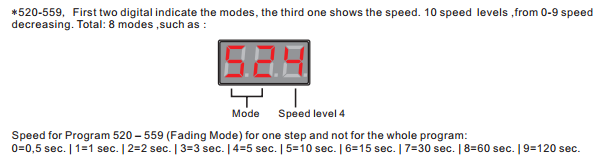

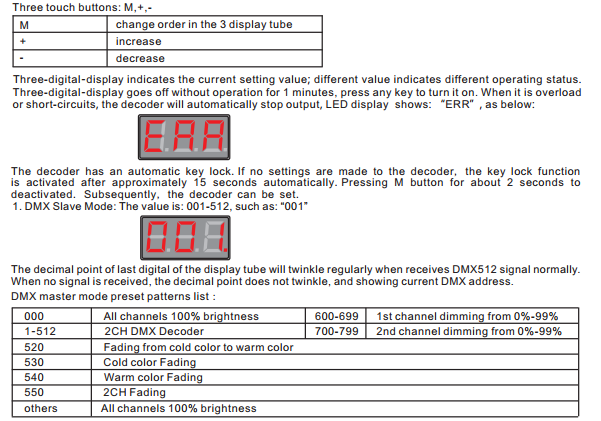

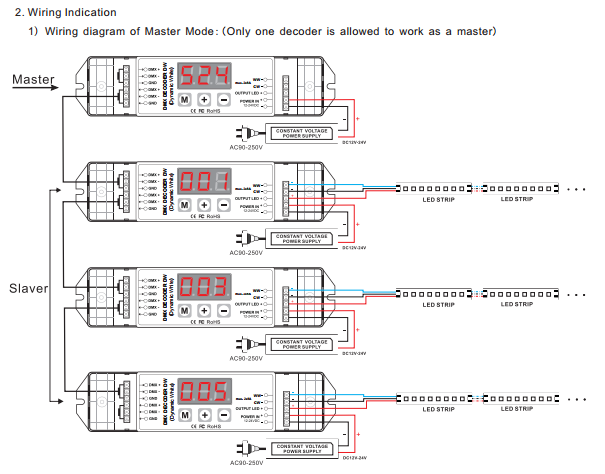

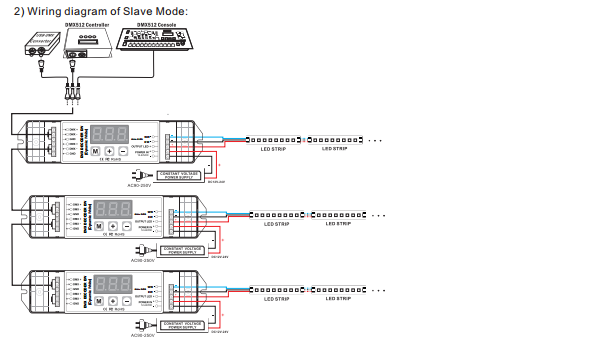

    Operating instruction:

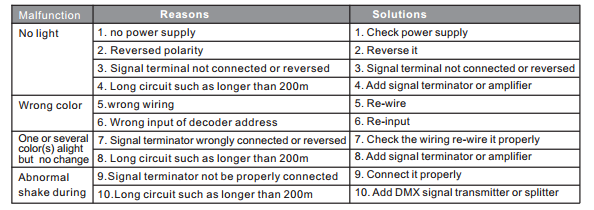

    Exception handles:

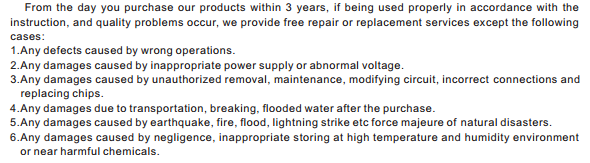

    After-sales:

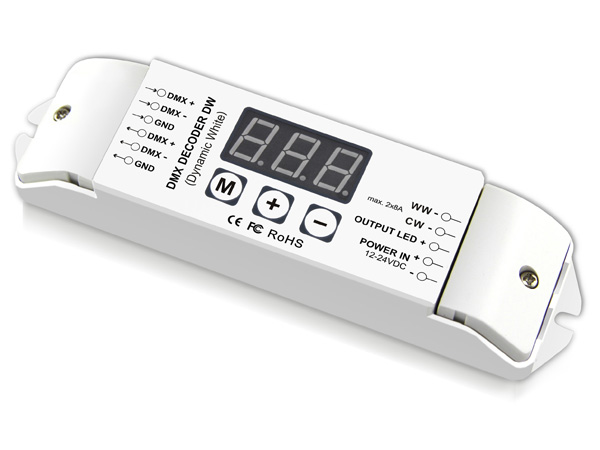

    Photo for Product:

    No Specifications
