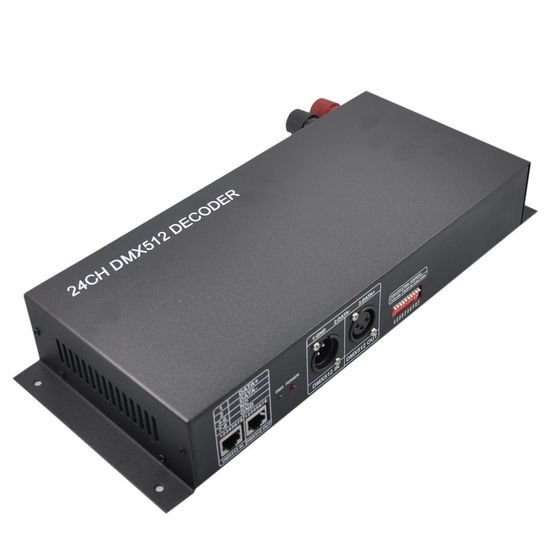

24CH Multi-Channel DMX512 Decoder for LED Lighting Show Project
Categories :
DMX controllerSKU :
1920196
100% original guarantee
Return within 30days
Worldwide Fast delivery
Summary:
The decoder adopt the advanced micro-computer control technology and converted the DMX512 digital signal widely used in international to the analog control signal. 1~24 channels output for option and each channel able to achieve 256 gradations of controlling, and also it can be used as the connector of PC digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.
Specifications:
Supply voltage | DC12V-24V |
Connection mode | common anode |
Output channel | 24 channel |
Max output power | 12V:<576W, 24V:<1152w<><1152w<> |
No-load current consumption | <0.25a<> (12V); <0.30a(24v)<><0.30a(24v)<><0.25a<> |
Control signal input | DMX-512 standard digital control signals |
Output current | <2<A (each channel) |
External dimension | 340*142*57 mm |
Package size | 350*180*65 mm |
Net weight & Gross weight | 1.5kg &1.6kg |

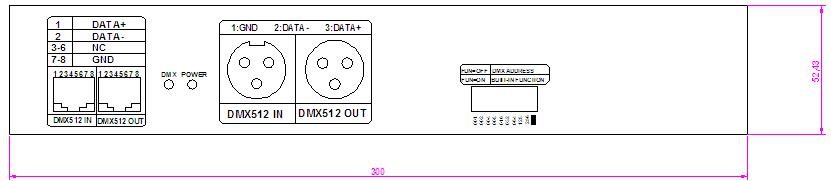

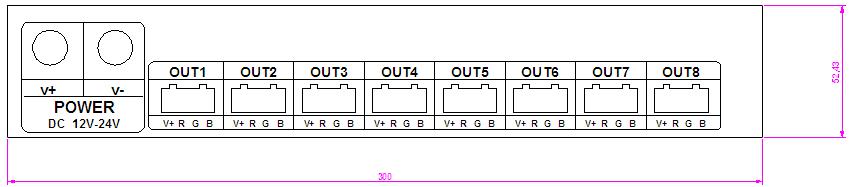

External Dimension:

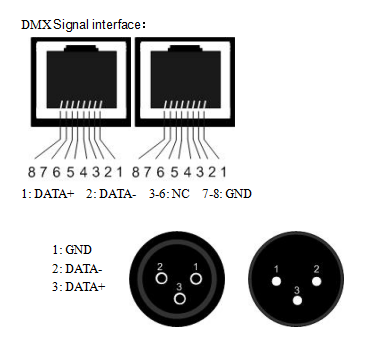

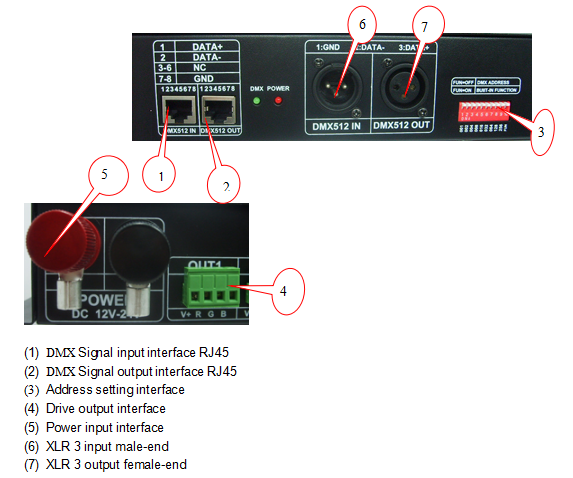

Interface Specifications:

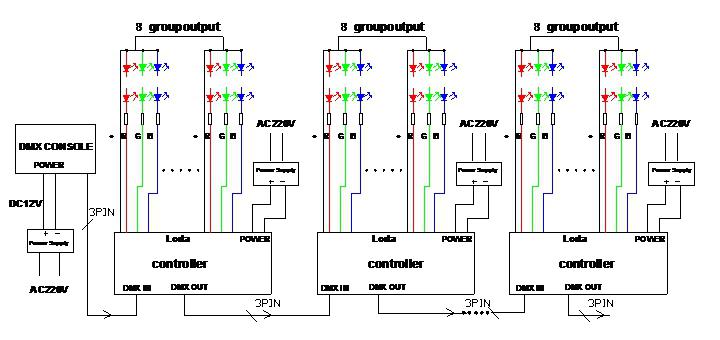

Typical Applications:

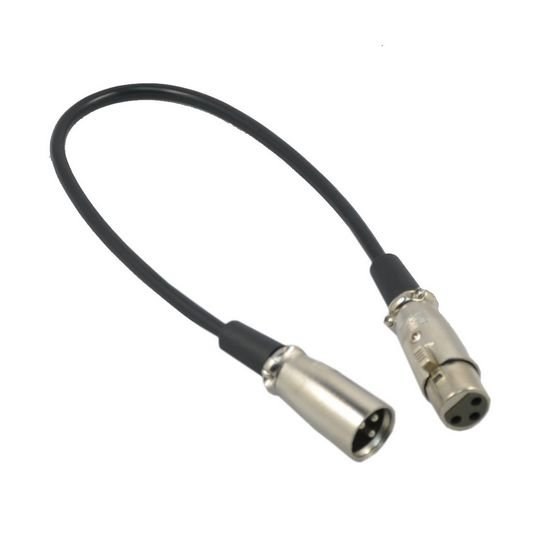

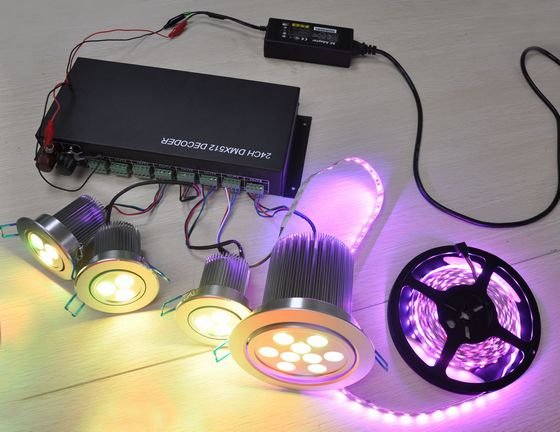

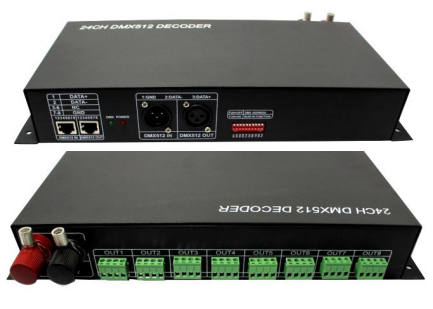

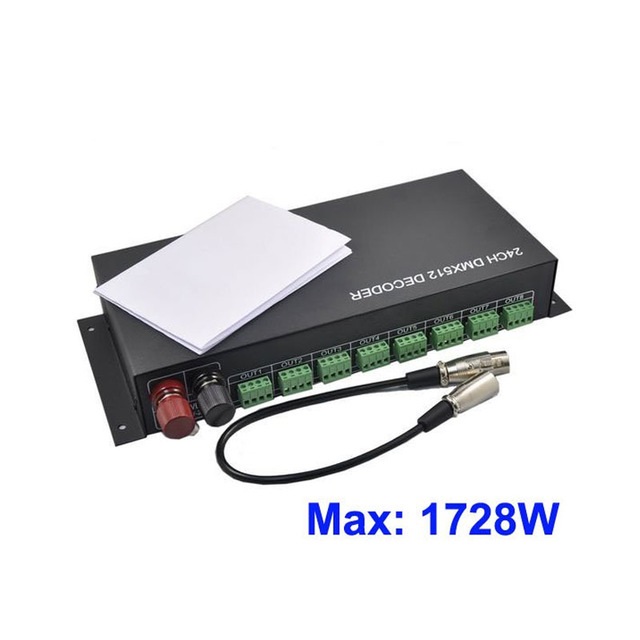

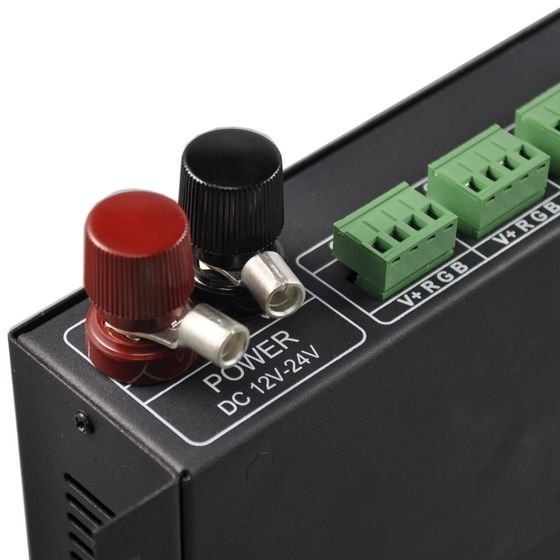

Photo for Product:
You may also like
DA DC5-24V Signal Amplifier 1 DMX Input 2 DMX Output
$ 19.61 $ 19.61

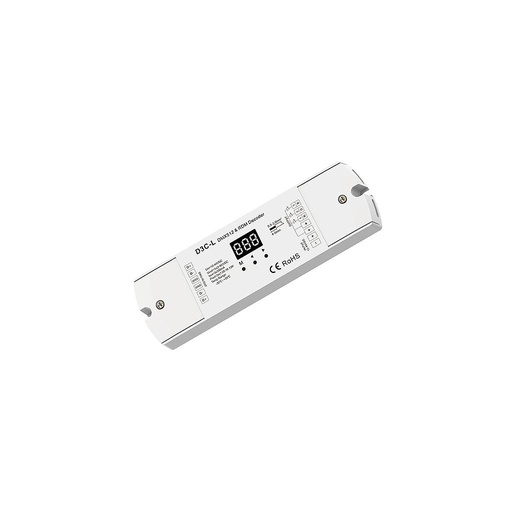

D3C-L DC12-48V 3 Channel PWM Constant Voltage DMX & RDM Decoder
