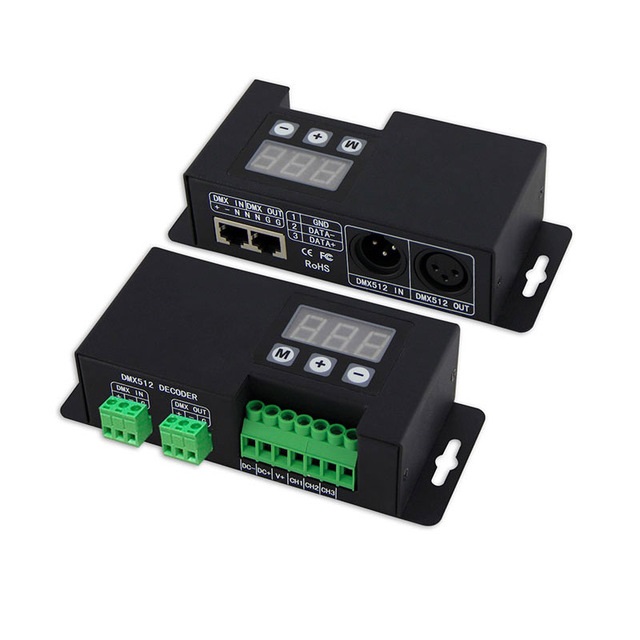

3 Channles DC12V-DC24V LED Lamps DMX512/1990 Input DMX Controller Decoder

https://www.satistronics.com/web/image/product.template/1069/image_1920?unique=99581fd
(0 review)

42.35 42.35 USD 42.35

¥ 302.50

Not Available For Sale


    This combination does not exist.


    Categories :
    DMX controller
    SKU :
    1920206
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Features:

    • Automatically adapts input voltage DC12V-24V.

    • Input standard DMX512 signal; 3-digital-display shows DMX address.

    • 3 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stable without strobe flash.

    • Support master mode or slave mode;

    • 8 color changing modes and 10 speed scales in master mode.

    • Indicator of the DMX512 signal receiving status.

    • Power loss memory function.

    • Over current protection and short circuit protection. Wrong wiring protection at DMX port.

    • Multiple DMX512 signal interface.

    Product Parameter:

    •  Input voltage : DC12V-DC24V

    •  Max load current : 6A×3CH

    •  Max output power : 72W×3CH(12V)/ 144W×3CH(24V)

    •  Grey Scale : 4096 levels×3

    •  Input Signal : DMX512/1990

    •  Output Signal : Constant Voltage PWM×3

    •  Decode Channel : 3CH

    •  DMX512 socket : XLR-3R port/ RJ45 port/terminal block

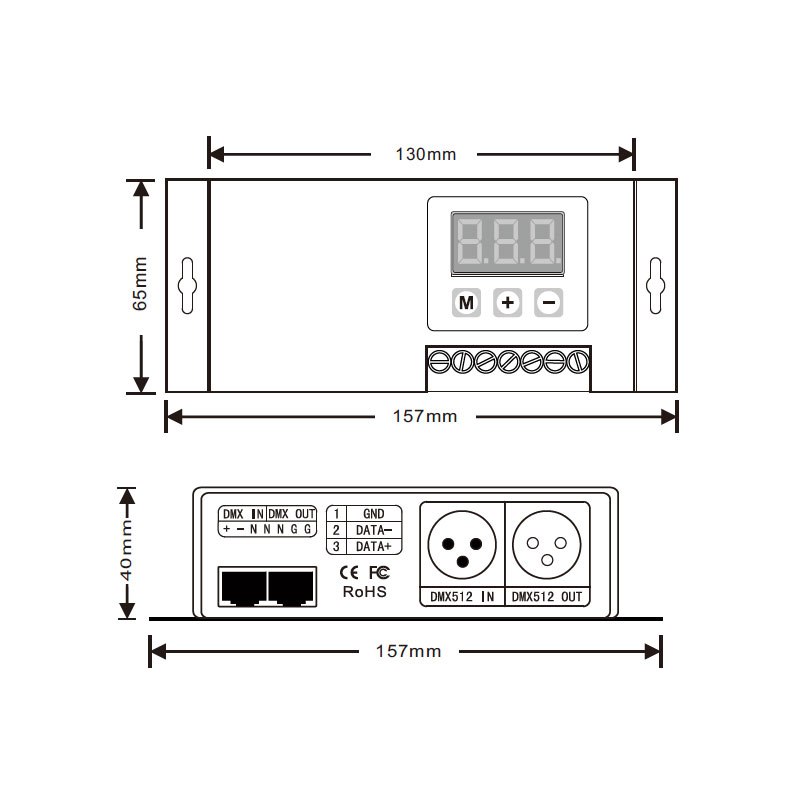

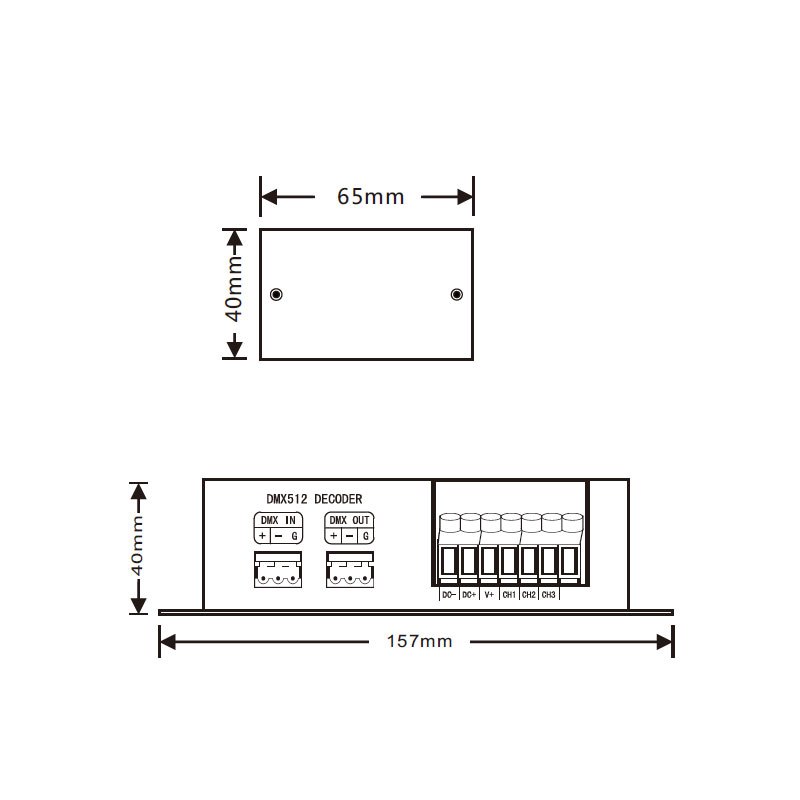

    •  Dimension : L157×W65×H40(mm)

    •  Weight (G.W) : 450g

    No Specifications
