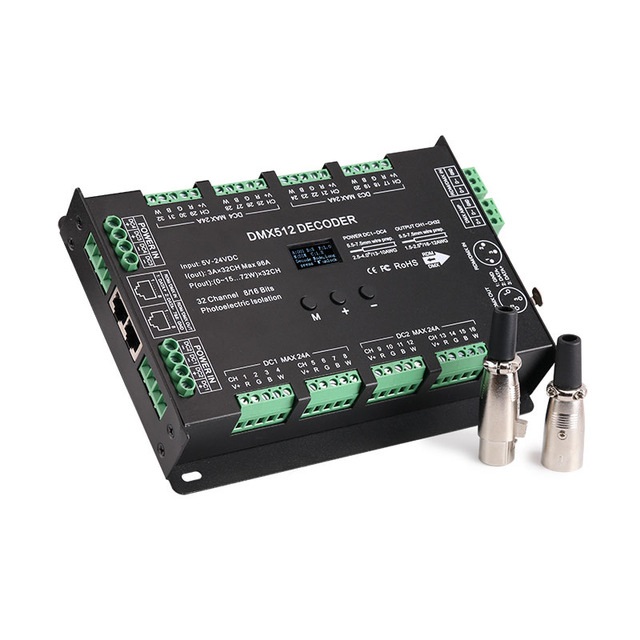

Multi-Channel 32CH DMX512 Constant Voltage Decoder

https://www.satistronics.com/web/image/product.template/3807/image_1920?unique=99581fd
(0 review)

162.61 162.61 USD 162.61

¥ 1,161.60

Not Available For Sale


    This combination does not exist.


    Categories :
    DMX controller
    SKU :
    1920246
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Summarization

    DMX512 Constant Voltage Decoder which is developed only for constant voltage LED lamps. It adopts advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output, max 3A each channel, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.

    Features

    • Support RDM function.

    • Selectable output frequency 1K、2K、4K、8K.

    • Output gamma curve can be adjusted.

    • DMX decoding supports 8 bits or 16 bits.

    • OLED display.

    • 32 channels output.

    • Power-off data saved function.

    Technical Parameters

    • Model : 32CH DMX512 Decoder

    • Input voltage : DC5V-24V

    • Max load current : 3A×32CH,Max 96A

    • Max output power : 480W(5V)/1152W(12V)/2304W(24V)

    • Output scale level : 65536 levels

    • Input signal : DMX512/RDM,8Bit、16Bit optional

    • Output DMX channel : Constant Voltage PWM×32CH

    • Decode channel : 32CH

    • DMX512 socket : XLR-3R/ RJ45/ Terminal block

    • Control mode : DIM /CT /RGB /RGBW 4 modes switch

    • Dimension : L195 X W145

    • Weight (G.W) : 810g

    Package Includes:

    • 1*32CH DMX512 decoder

    No Specifications
