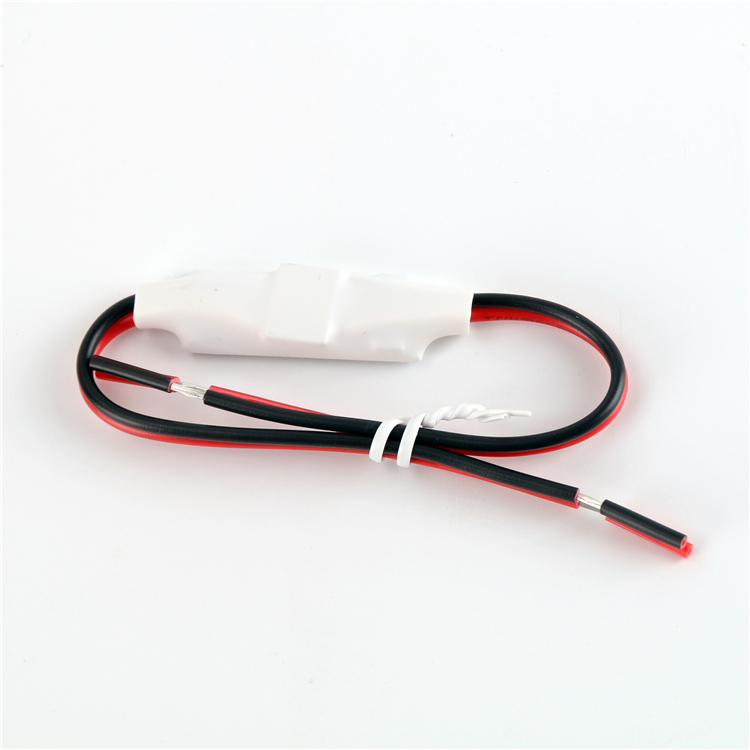

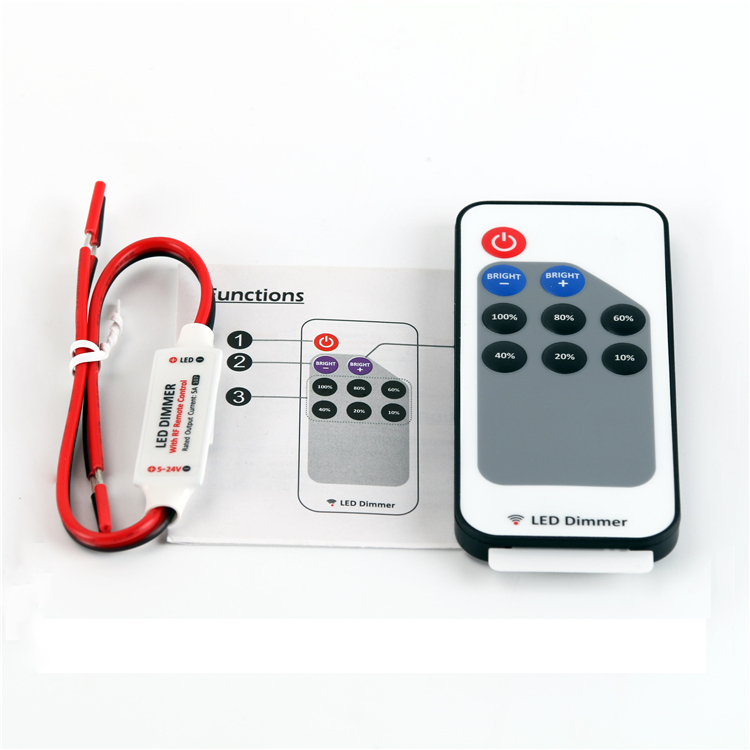

DC5V DC12V DC24V 12A Mini Single Color LED Strip Dimmer Controller with Card Type Remote + Red & Black Connect Line

https://www.satisled.com/web/image/product.template/2194/image_1920?unique=99581fd
(0 review)

8.26 8.26 USD 8.26

¥ 59.40

Not Available For Sale


    This combination does not exist.


    Categories :
    Mini LED Controller
    SKU :
    1920328
    Share :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Feature:

    • 64-level dimmer

    • 6 shortcut brightness

    • 5-24V wide voltage

    • High out current

    • Smooth dimmer effect

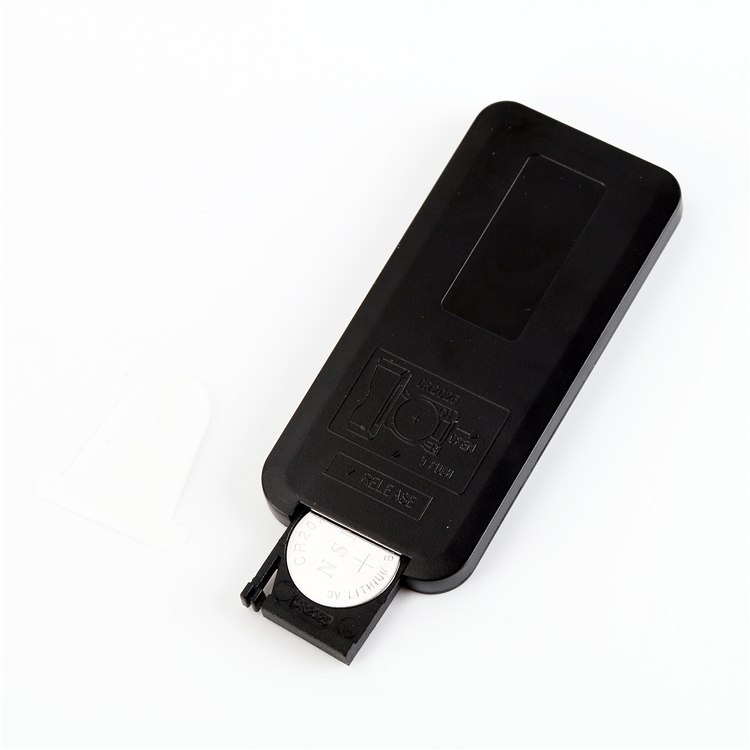

    • Card type remote

    • Ultra slim design

    • Easy remote pairing

    • Power off memorize

    • For led strip or module

    Specifications:

    • Voltage:DC5-24V

    • Max output: peak 12A, constant 6A

    • Power Dissipation:<0.5W

    • Work Temperature:-20~+60degree

    • Power output: 5V-60W,12V-144 W,24V-288W

    • Single color controller with red and black cable.

    • Supper Mini, safe, easy to operate.

    • Can be used for SDM 3528 Led strip light, SMD 5050 Led strip light, SMD 5630 Led strip light no products box, just PPS package.

    Package include:

    • 1 * Single Color LED Strip Dimmer Controller

    Installing:

    1. Power supply:

    • This unit accepts DC5V to 24V power supply. The DC jack’s inner pole (or red cable) is positive and sleeve (or black cable) is negative. Also please make sure the power supply voltage is same as the LED load.

    2. LED output:

    • This unit support common anode connection LED products. The mark “+” indicates the common connection node.  The peak output current is 4 amperes and maximum constant current is 2 amperes per channel. Please reduce load if main unit is overheating.

    Caution! DO NOT short circuit or overload the LED product, this may lead to permanent damager!
