22mm Flashlight Driver Wide Voltage 2A for XM-L / XM-L2 LED 5-Mode

Price:

$ 14.63
USD
  2. Shop
  3. 22mm Flashlight Driver Wide Voltage 2A for XM-L / XM-L2 LED 5-Mode
10-30W LED COB Module LED COB Round Panel 60mm PCB 42mm Emitting Area Warm Natural White
10-30W LED COB Module LED COB Round Panel 60mm PCB 42mm Emitting Area Warm Natural White
$ 1.57
$ 1.57
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
4W High Power Imitation Lumen RGBW Led Eight Feet 30mil 40mil 45mil
$ 2.28
$ 2.28

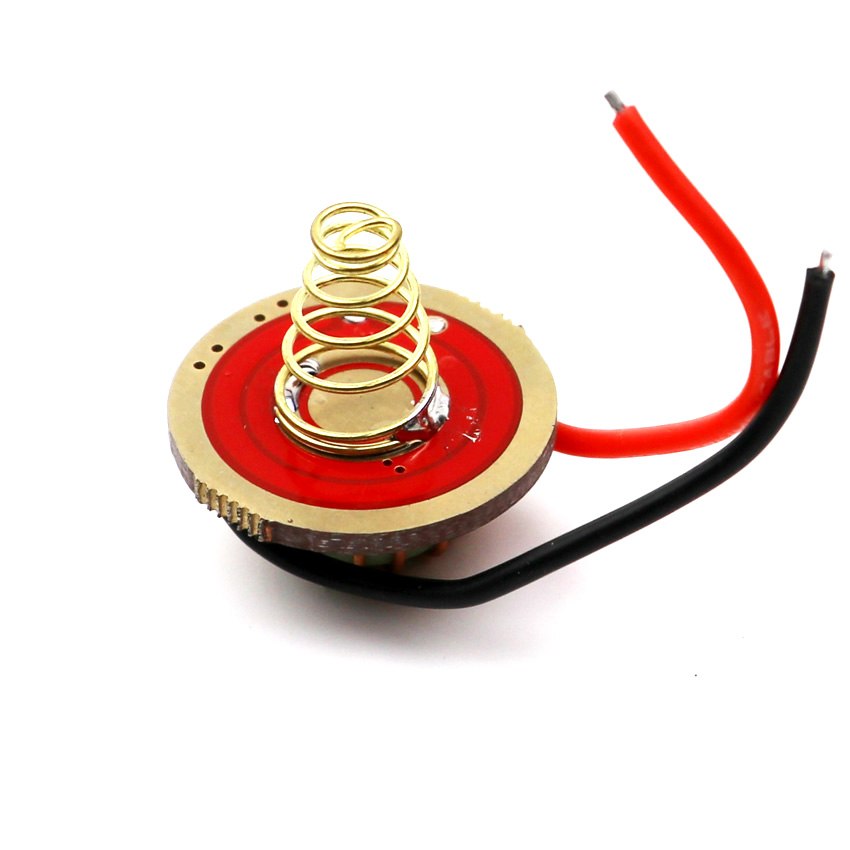

22mm Flashlight Driver Wide Voltage 2A for XM-L / XM-L2 LED 5-Mode

https://www.satistronics.com/web/image/product.template/852/image_1920?unique=3e3d1d1
(0 review)

$ 3.93 3.93 USD $ 3.93

¥ 27.50

Not Available For Sale

    This combination does not exist.

    Contact Us
    Categories :
    DIY Driver Board for Flashlights
    SKU :
    1935702
    Share :
    Terms and Conditions :
    100% original guarantee
    Return within 30days
    Worldwide Fast delivery

    Specification

    • Input Voltage: 5.6V-9V (Use 2 pcs 3.7V Li-ion battery in series)

    • Output voltage: 3.3V,

    • Output current: 2A

    • Circuitry: constant current circuit

    • Diameter: 22mm

    • Height(Without spring): 10.5mm

    • Mode: 100% > 25% > 5% > Strobe > SOS

    • Connecting methods: Red line to LED+, Blue line to LED-. Positive line to the mid of board, negative line to  the side of board.

    Packing list:

    • 1 x driver

    NOTE: Red and blue driver board will be sent randomly according to the inventory!

    No Specifications
    You may also like

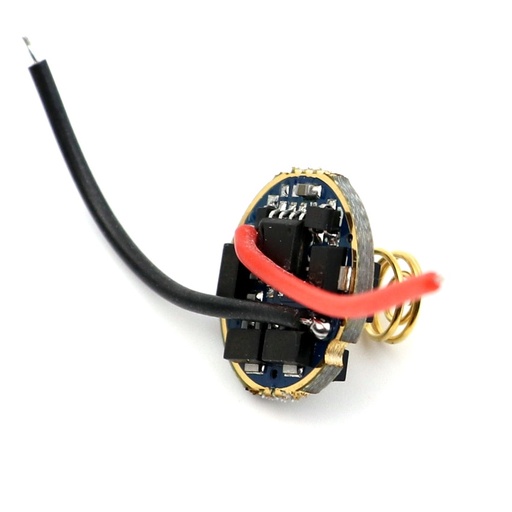

    17mm LED Driver 7135 x 8 chip 4 Groups Modes 2.8A for XML XML2 T6 U2 U3 LED
    17mm LED Driver 7135 x 8 chip 4 Groups Modes 2.8A for XML XML2 T6 U2 U3 LED
    $ 4.25 $ 4.25

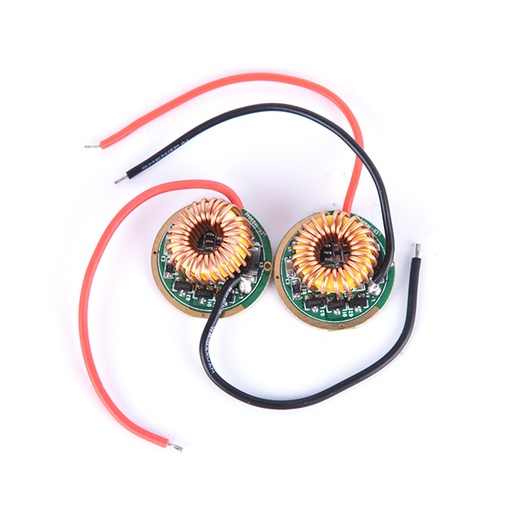

    10W 22mm LED Driver for CREE 10W XML XM-L T6 / L2 / U2 Flashlight Light Input DC3.7-14V Output 3-3.6V 2.8A 1/3/5 Modes
    10W 22mm LED Driver for CREE 10W XML XM-L T6 / L2 / U2 Flashlight Light Input DC3.7-14V Output 3-3.6V 2.8A 1/3/5 Modes
    $ 3.77 $ 3.77

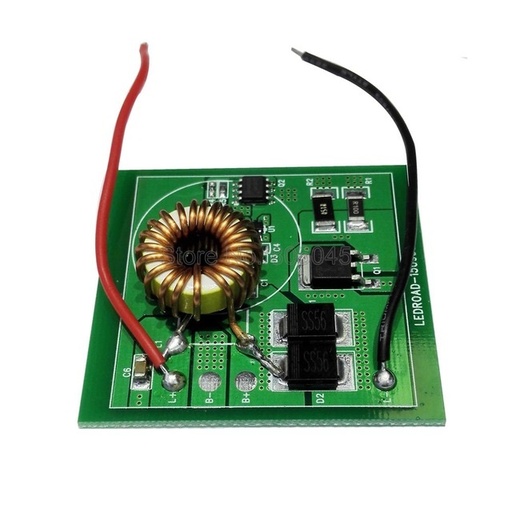

    30W 50mm XHP70 LED Driver Input DC 12-244V Output 6V 4-4.5A 1 Modes
    30W 50mm XHP70 LED Driver Input DC 12-244V Output 6V 4-4.5A 1 Modes
    $ 6.61 $ 6.61

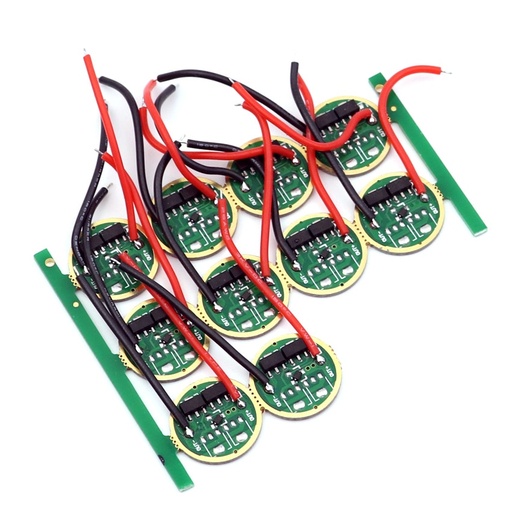

    Q5 LED Emitter Flashlight Driver 750mA Constant Current Output 2.7-5V Input 7135 x 2 Flashlight Circuit Board
