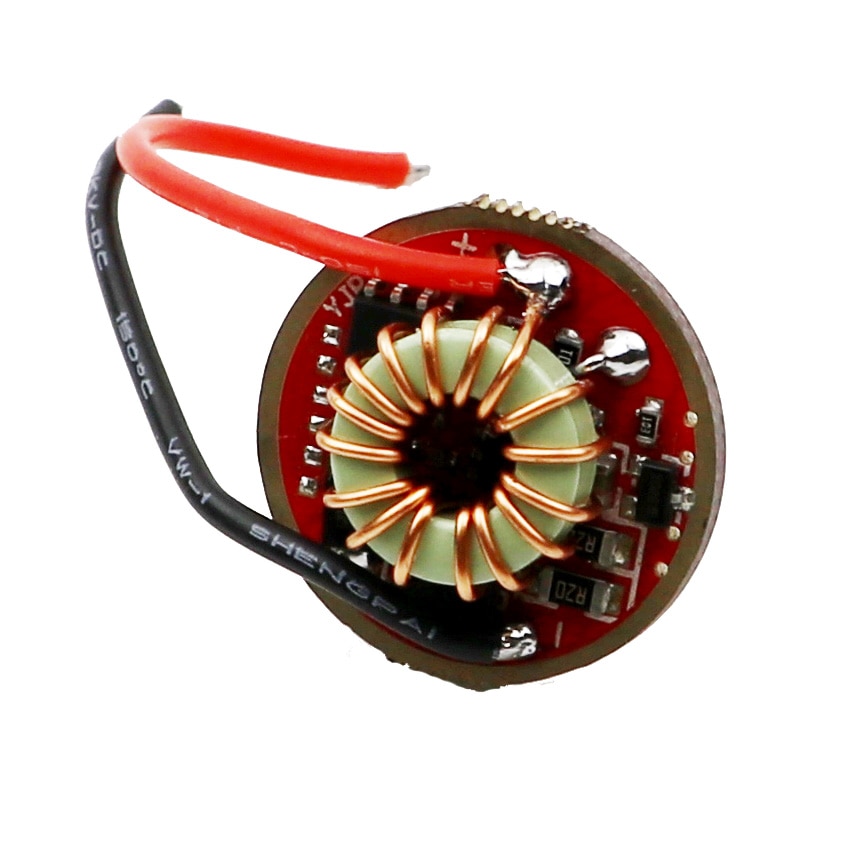

22mm Flashlight Driver Wide Voltage 2A for XM-L / XM-L2 LED 5-Mode

Specification

• Input Voltage: 5.6V-9V (Use 2 pcs 3.7V Li-ion battery in series)

• Output voltage: 3.3V,

• Output current: 2A

• Circuitry: constant current circuit

• Diameter: 22mm

• Height(Without spring): 10.5mm

• Mode: 100% > 25% > 5% > Strobe > SOS

• Connecting methods: Red line to LED+, Blue line to LED-. Positive line to the mid of board, negative line to  the side of board.

Packing list:

• 1 x driver

NOTE: Red and blue driver board will be sent randomly according to the inventory!
