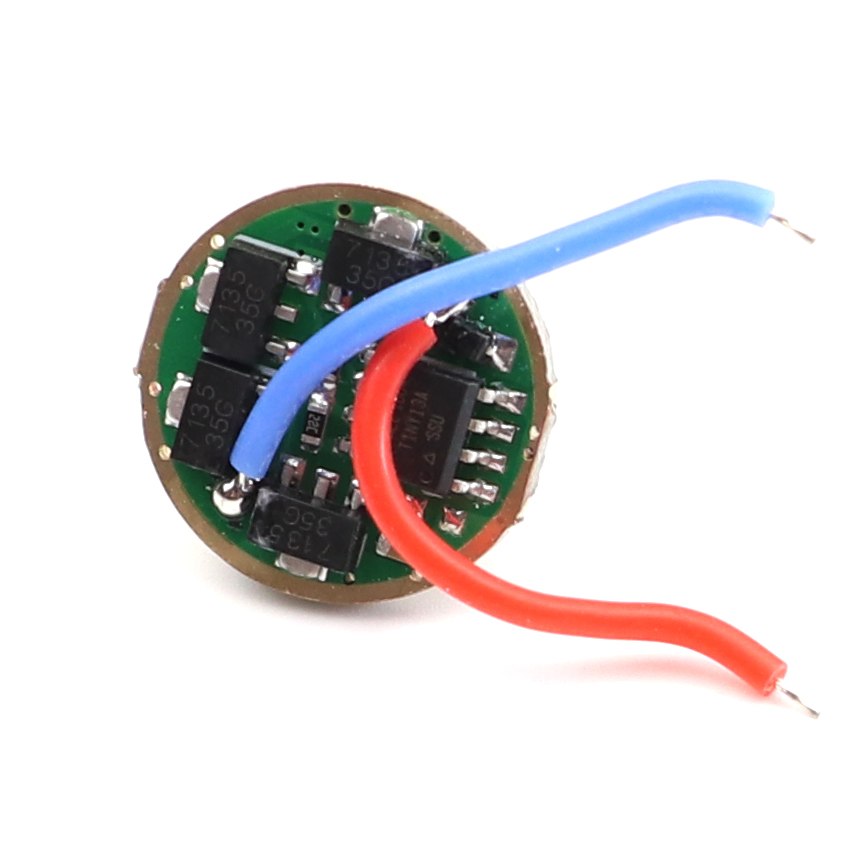

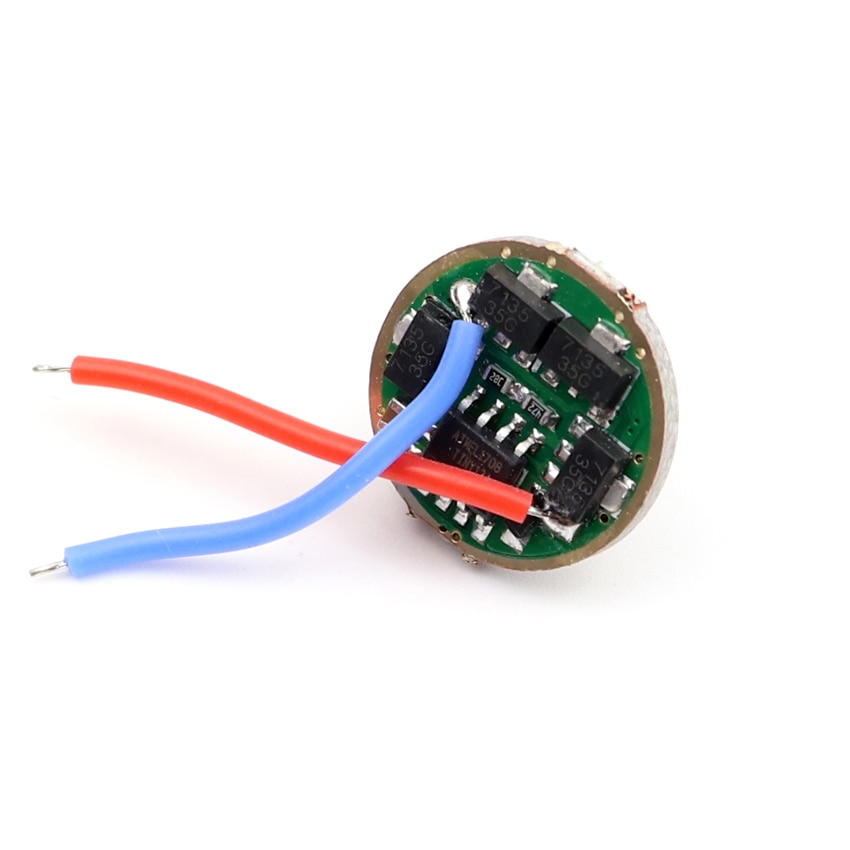

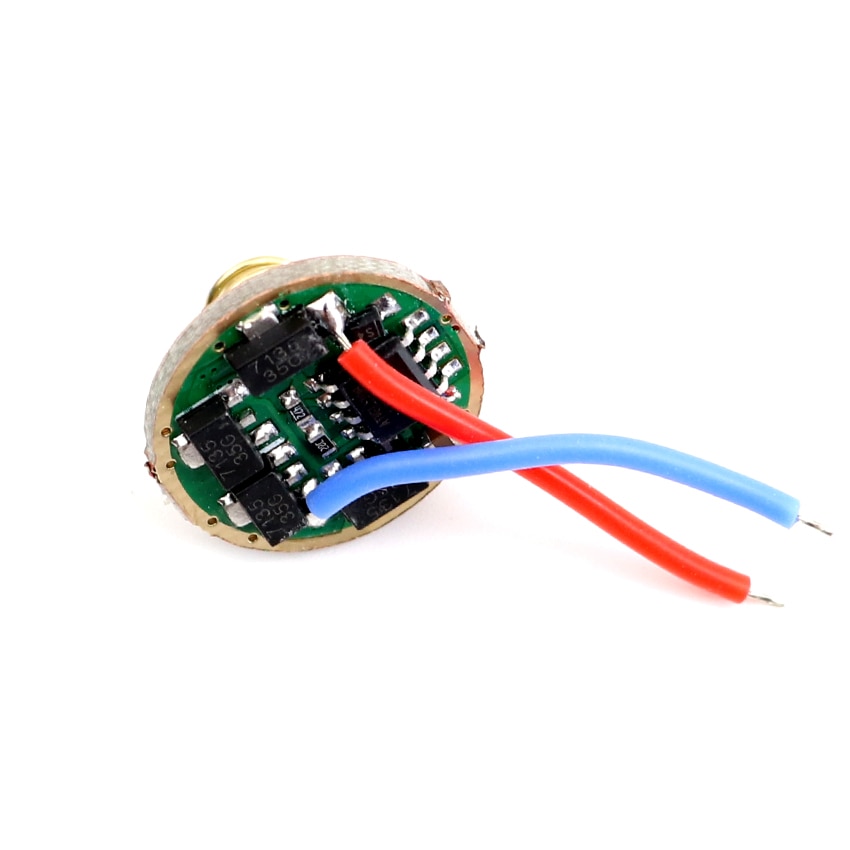

7135 x 8/6 /4 /3 Chip 17mm Driver Board Circuit Board for T6/U2/XML2/XPL LED 18650 flashlight with Mode Memory

https://www.satisled.com/web/image/product.template/1316/image_1920?unique=99581fd
(0 review)

4.13 4.13 USD 4.13

¥ 29.70

Not Available For Sale


  • Current

This combination does not exist.


SKU :
1935706
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Description:

  • Mode memory, Low voltage protection, reverse connection protection.

  • Dimensions: PCB diameter 17mm,  thickness 3mm

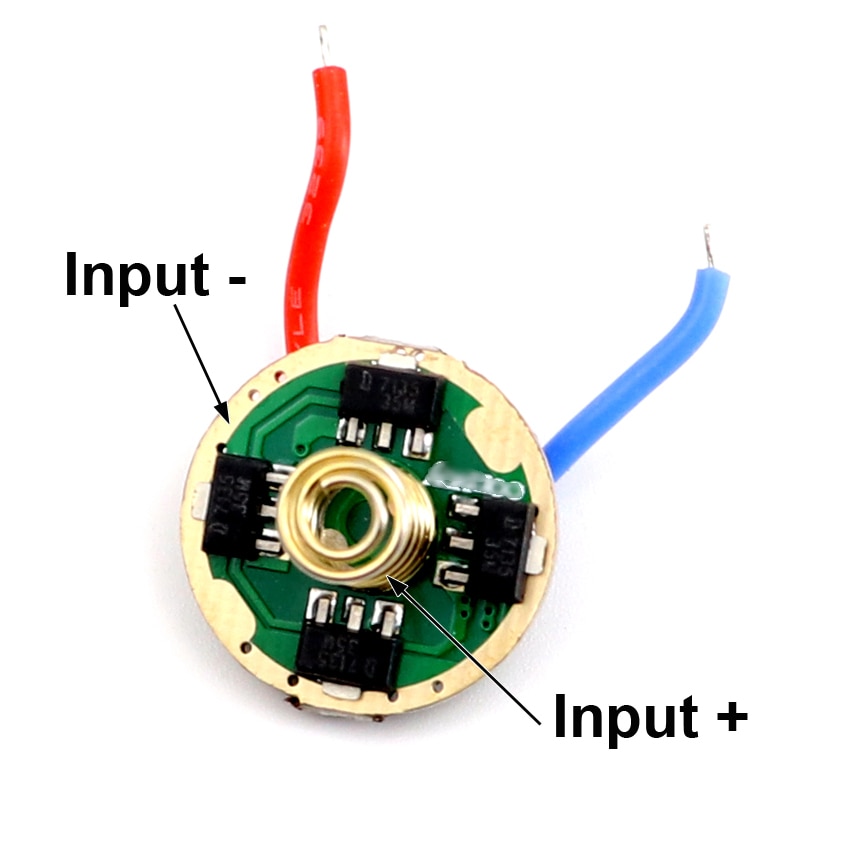

  • Input voltage : 3 -4.5V (powered by 1 x 3.7V Li-ion battery)

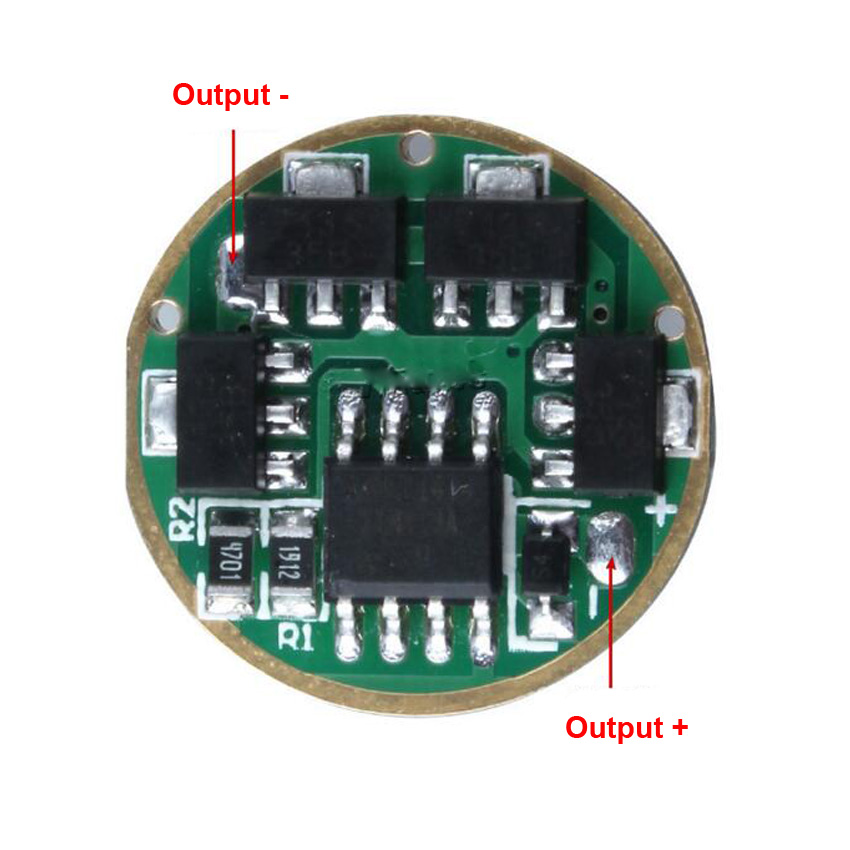

  • Output voltage: 7.35x8 and 7135x6: 2.8-3.8V;

                                    7135x4 and 7135x3: 2.6-3.6V

Output current: Constant current

  • 7135x8: 2.8A,     Suitable for 1 x Cree XM-L/XM-L2 T6 U2 U3 XP-L MCE LED

  • 7135x6: 2.1A,  Suitable for 1 x Cree XM-L/XM-L2 T6 U2 U3 XP-L MCE LED

  • 7135x4: 1.4A,  Suitable for 1 x Cree XPG XPG2 XTE LED

  • 7135x3: 1.05A Suitable for 1 x Cree XRE XPE XPE2 LED

Two group modes:

  • Group 1: 5 Modes 5% 50% 100% Strobe SOS

  • Group 2: 3 Modes 5% 50% 100%

How to change group: At low mode please wait more than 5 seconds, when you see the flashlight flash automatically, then half press the switch to change the group.

Package includes:

  • 1 x driver board

Current 1050mA or 1400mA or 2100mA or 2800mA
