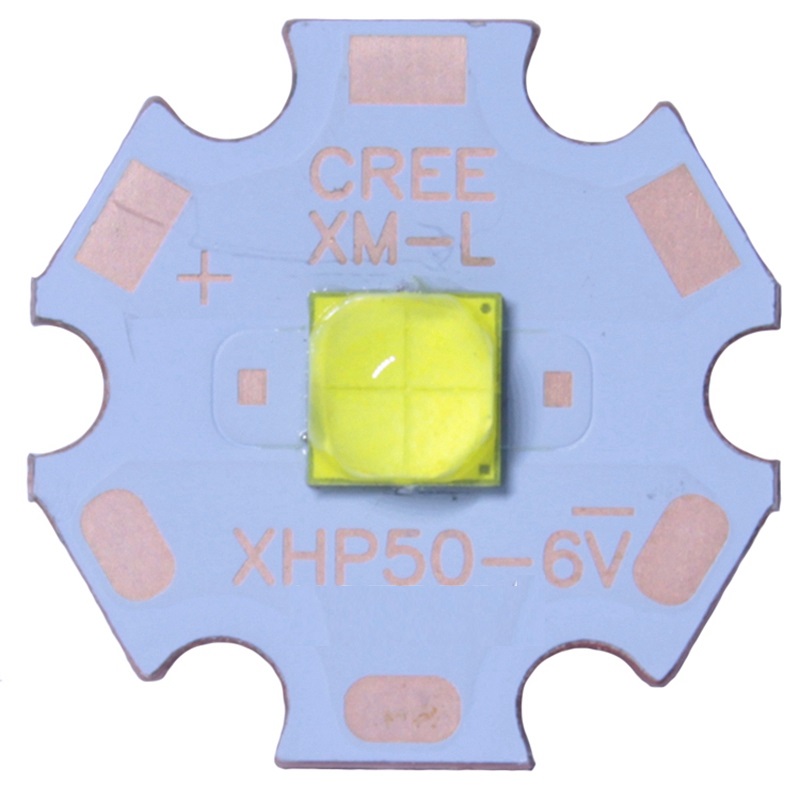

CREE XHP50 Cool White Neutral White Warm White LED Emitter 6V 12V with 16mm 20mm Copper PCB
Categories :
XHP 35-50-70 SeriesSKU :
1817321
100% original guarantee
Return within 30days
Worldwide Fast delivery
Description:
Voltage : 6V/12V
Current : 3A(6V) 1.5A(12V)
Diameter : 16mm, 20mm
Emit Color : Cold White/Neutral White/Warm White
Color Temperature : 6500K/5000K/3000K
View Angle : 120 Degree
Next Generation of Extreme High Power LEDs
| Size | 5 x 5 mm |
| Product Options | 6 V 12 V High-CRI |
| Maximum Drive Current | 3 A (6 V) 1.5 A (12 V) |
| Maximum Power | 18 W |
| Maximum Light Output | 2654 lm |
| Maximum Efficacy at Binning Conditions | 165 lm/W |
| Typical Forward Voltage | 5.6 V White 1400 mA (6 V) 11.2 V 700 mA (12 V) |
| Viewing Angle | 120 ° |
| Binning | 85°C ANSI (White) 2- 3- and 5-Step EasyWhite® |
| Thermal Resistance | 1.2 °C/W |
| Reflow Solderable | Yes - JEDEC J-STD-020C-compatible |
| REACH-Compliant | Yes |
| RoHS-Compliant | Yes |
| Emitting Color | Warm White 3000K or Neutral White 5000K or Cool White 6000-6500K |
| Finish | 16mm DTP Copper PCB or 20mm DTP Copper PCB |
| Voltage | 6V or 12V |
