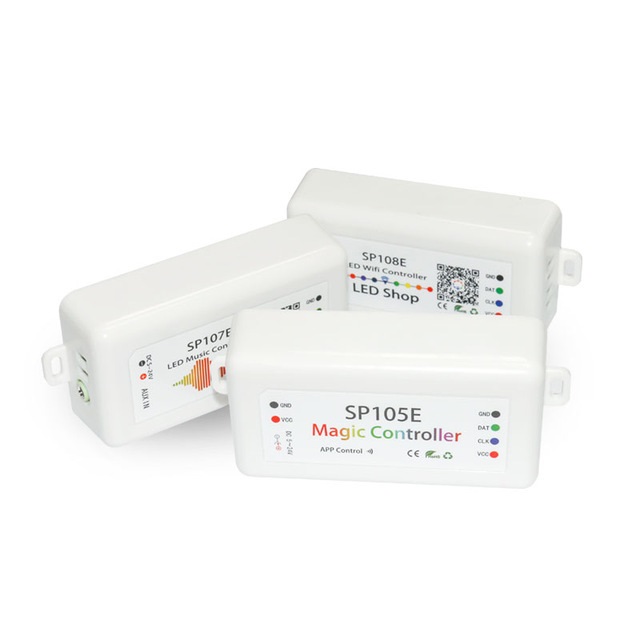

SP105E Bluetooth LED Pixel Strip Light Controller SP108E SP107E SP110E Mini Controller

Price:

51.88


5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
5W CREE XTE S3 High Power LED 8-20mm PCB Emitter Warm Neutral White Blue
1.10
1.10
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
30W 40W 50W Driverless LED Light COB Chip Spotlight Size 110x58mm Emitting 60x30mm
5.30
5.30

SP105E Bluetooth LED Pixel Strip Light Controller SP108E SP107E SP110E Mini Controller

https://www.qskj.cc/web/image/product.template/4559/image_1920?unique=23c53c7
(0 review)

5.49 5.49 USD 5.49

¥ 38.50

Not Available For Sale


  • Part Number

This combination does not exist.


SKU :
1820090
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Features:

APP remote control:

Via Buletooth / WiFi connection, both IOS and Android two platform support.( IOS 10.0 above and Android 4.4 above needed.)

Long remote control distance:

Up to 20m-30m distance controller.

RGB order changeable:

you can choose the right option of RGB order to your light, make sure right color display.

Support almost SPI IC:

suupport almost every kind of one-wire and two-wire LED driver IC, like SM16703, TM1804, UCS1903, WS2801, WS2811, SK6812, LPD6803, LPD8806, APAP102, APA105, DMX512. TM1913, P9813, P9813, INK1003, P9435, P9411, P9413, TX1812, TX1813, GS8206, GS8208, SK9822, TM1814, SK6812-RGBW, P9414, P9412 ETC.

Support more pixel:

UP to 2048 pixel support.

Power off setting memory function:

When power off, it will auto store the running pattern, when power ON again, it will continue.

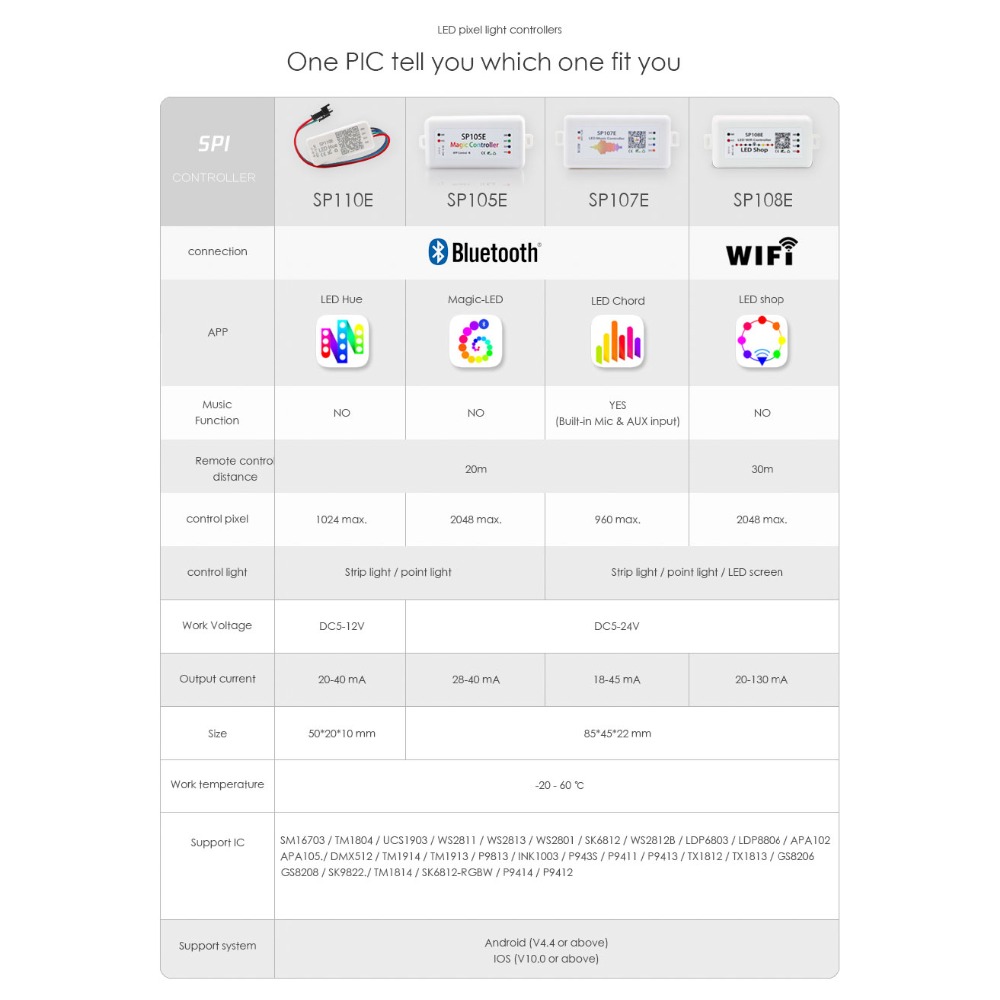

Please find the PIC of comparison reference chart between this 4 models after the product information!



110

Sp110E

Features:

  • App Control via Bluetooth 4.0, long Control distance, convenient to use;

  • Support almost every kind of one-wire or two-wire LED driver IC ;

  • Brightness adjustable, With 120kinds of patterns, which are vivid and beautiful;

  • Support setting total pixel number, able to control up to 1024 pixels;

  • DC5V~12V wide working voltage, preventing reverse connection of power supply;

  • User setting saving;

App:

  • Both IOS version and Android OS version are available.

  • Requires IOS version 10.0 or later;

  • Requires Android OS version 4.4 or later;

  • Search”LEDHue” in App Store or Google pay or scan this QR code to download and install the App:

Specifications:

  • Working temperature: 20℃~60℃;

  • Working Voltage: DC5V~12V;

  • Working Current : 20mA~40mA;

  • Remote distance: 20 Meters;

  • Product size: 85mm*45mm*22mm;

  • Product weight: 40g ;

  • Certificates: CE, RoHS;

Package include:

1*SP110E Bluetooth pixel controller

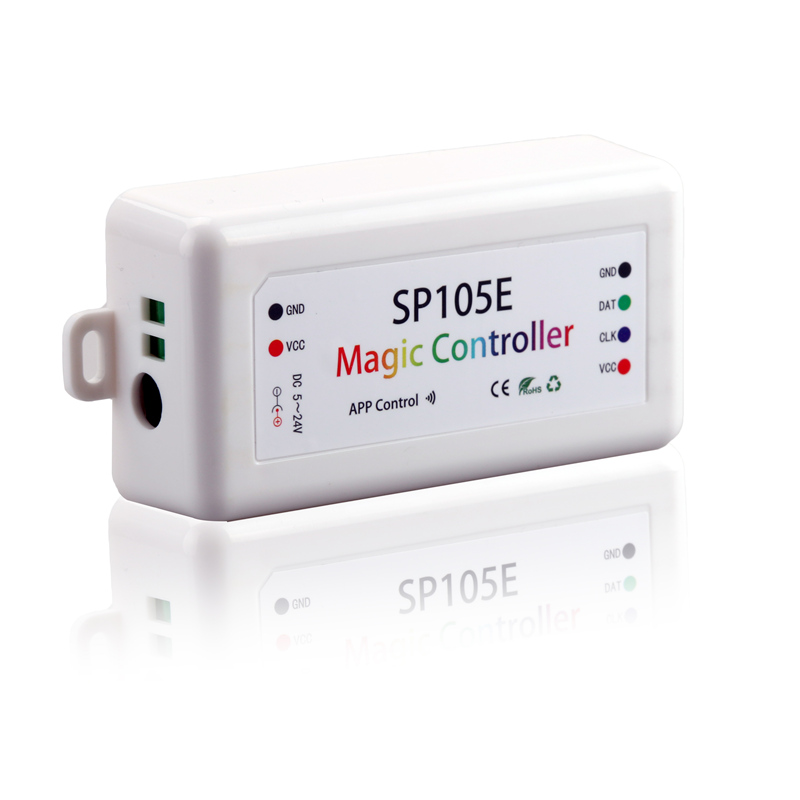

105

105 (1)105 (2)

105 (3)105 (4)

105 (5)105 (6)

105 (7)105 (8)

Features:

  • App Control via Bluetooth 4.0,long Control distance,convenient to use;

  • Support almost every kind of one-wire or two-wire LED driver IC ;

  • Brightness adjustable,With 200 kinds of patterns,which are vivid and beautiful;

  • Support setting total pixel number,able to control up to 2048 pixels;

  • DC5V~24V wide working voltage,preventing reverse connection of power supply;

  • User setting saving;

App:

  • The specialized App is available on both IOS and Android OS. (hardware should support Bluetooth 4.0)

  • Apple Device:iPhone4S | iPhone5/5S/5C | iPhone6S/6s Plus | iPhone6 / 6 Plus,supported IOS 8.0 version or later;

  • Android OS version should be Android 4.4 or later.

  • Search "Magic-LED" to download and install the App:

Specifications:

  • Working temperature : -20~60;

  • Working Voltage : DC5V~24V;

  • Working Current : 28mA~40mA;

  • Remote distance : 20 Meters;

  • Product size : 85mm*45mm*22mm;

  • Product weight : 40g ;

  • Certificates : CE, RoHS;

Package include:

1pcs sp105e bluetooth led controller



1071

107 (1)107 (2)

107 (3)107 (4)

107 (5)107 (6)

107

Features:

  • Long distance APP remote control via Bluetooth;

  • Support almost every kind of one-wire or two-wire LED driver IC ;

  • Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;

  • Creatively usingfrom-image-to-effect method for user toDIYany effect;

  • Support setting pixel number and segments number, able to control up to 2048pixels;

  • DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;

  • User setting saving;

App:

  • Both IOS version and Android OS version are available.

  • Requires IOS version 10.0 or later;

  • Requires Android OS version 4.4 or later;

  • Search”Led Chord”in App Store or Google pay or scan this QR code to download and install the App:

Specifications:

  • Working temperature : -20~60 Degrees Celsius

  • Working Voltage : DC5V~24V;

  • Working Current :20mA~130mA;

  • Remote distance :30 Meters;

  • Product size : 85mm*45mm*22mm;

  • Product weight : 40g ;

  • Certificates : CE, RoHS;

Instructions:

APP Operations:

1. Make sure you have turned on Bluetooth on your phone;

2. Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;

3. Select RGB order and IC type;

4. Adjust the pixel number;

5.Press ENTER.

Audio Input:

1)here are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;

2)AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3, Phone or tablet…)and the speaker(or headset), the controller will automatically switch into AUX input mode;

3)MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.

Package includes:

1x SP107E music LED controller



108

8-18-2

8-38-4

8-58-6

8-78-8

Features:

  • Long distance APP remote control viva WIFI;

  • Support routing mode(AP) and LAN connection mode(STA), suitable for a variety of occasions to meet the different needs;

  • Support almost every kind of one-wire or two-wire LED driver IC ;

  • Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;

  • Creatively usingfrom-image-to-effect method for user toDIYany effect;

  • Support setting pixel number and segments number, able to control up to 2048pixels;

  • DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;

  • User setting saving;

App:

  • Both IOS version and Android OS version are available. (hardware should supportWIFI)

  • RequiresIOS version 10.0 or later;

  • Requires AndroidOSversion 4.4or later;

  • Search”LedShop”in App Store or Google pay or scan this QR code to download and install the App:

Specifications:

  • Working temperature : -20℃~60℃;

  • Working Voltage : DC5V~24V;

  • Working Current :20mA~130mA;

  • Remote distance :30 Meters;

  • Product size : 85mm*45mm*22mm;

  • Product weight : 40g ;

  • Certificates : CE, RoHS;

Working Mode and Connecting:

  • AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point. When the device is not connected to any WIFI network, power on the controller and wait for 20s and the controller will switch intoAP mode,in the WIFI setting page,find and connect the controller(named likeSP108E_xxx, the default pin code is 12345678),open the LED Shop App ,then the controller will be showed on the device list;

  • STA(Station) mode:Controller and phone are in one same WIFI network, in this network, users can operate the controller smoothly.When the device is not connected to any WIFI network, make sure that your phone is connected to a WIFI network, power on the controller,controller will be remainWait-For-Connet mode for 20 seconds, pressing the Add Device button, input the WIFI pin code, then press theOKto confirm and wait for the configure processing finish. User can select the controller and remove it out of the network by pressing theRemove Device button,then the controller will switch into AP mode.

Package includes:

1x SP108E WiFi LED controller

105-107-108-110



Part Number SP110E or SP105E or SP107E or SP108E
