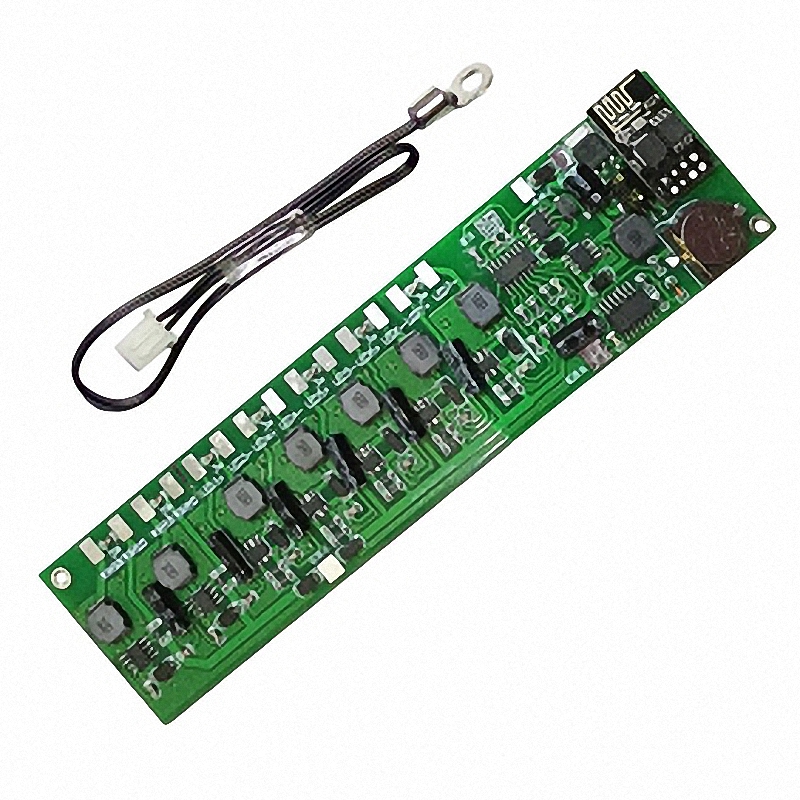

DIMFree-W7I 7 Channel LED Sunrise/Sunset Programmable Time Dimmer Controller WiFi Android Control

Description:

DIMFree-W7I use W8 App. 7 channel output with 7 PWM independent signal.

Please download iphone app from here or scan the picture bellow:

iOS APP for single Dimmer control: https://itunes.apple.com/cn/app/w8/id1309412395?mt=8

iOS APP for Group Dimmers control: https://itunes.apple.com/cn/app/w8gc/id1386536073?mt=8

For initial start the language is Chinese. Currently it can not detect your system language. But you can switch to English by the following steps.

The module includes:

l  1 Wifi Dimmer module with 7 channels PWM signal output

l  7 Channels constant current power module(1-2CH 1200mA, 3-7CH 700mA).

l  1 Fan Power module (Multi fans in parallel is supported 12V, 8Watt at max)

l  1 Temperature Sensor module(Cable length: 15cm)

l  All terminals for power, LED, Fan, Temp sensor easy connection.

Features:

l  User Friendly Set up/Control App for PC, iOS as well as android smartphone

l  1 channel power input terminal, 7 channels Light source Terminal. No necessary soldering. All wires can be connected by terminal screws.

l  Build in with High precision time chip, High performance processing chip and self-restoring fuse to make sure stable working.

l  All input and output added isolation protection according to the industrial design, suitable for DIY beginner as well as Tech pro.

Parameters:

l  Working voltage:15-36V

l  Fan connection: 12V 8Watt at max, Multi fans can be connect in parallel

l  Dimming Frequency: up to 1280Hz

l  Dimension: 178*40*6.0mm

l  Temperature sensor cable length: 15cm

DIMFree LED Controller Selection Table(PDF Download):
