DIMFree-W4V 4 Channel Constant Voltage LED Sunrise/Sunset Programmable Time Dimmer Controller WiFi Android iPhone Control

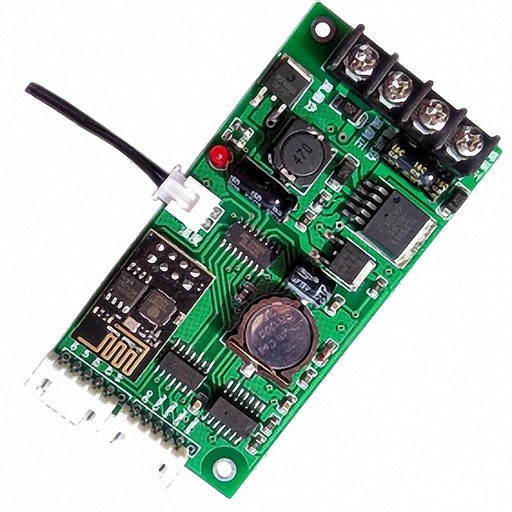

DIMFree-W4V is constant voltage version of W6I dimmer module which mainly use for LED strips.  It use the same setting/control app as W6I.

The IR remote is not quite necessary since you can control the module with all android smartphone or iphone. You may check the optional IR remoter at your wish.

iOS APP for single Dimmer control: https://itunes.apple.com/cn/app/w8/id1309412395?mt=8

iOS APP for Group Dimmers control: https://itunes.apple.com/cn/app/w8gc/id1386536073?mt=8

DIMFree Programmable Time Dimmer Module is designed for LED Aquarium/Grow Lights by SatisLED experienced engineer to simulate the Sunrise/Sunset effects. It is Wifi Controllable and can be set up with windowns, iPhone as well as Android smart phones.

The module includes:

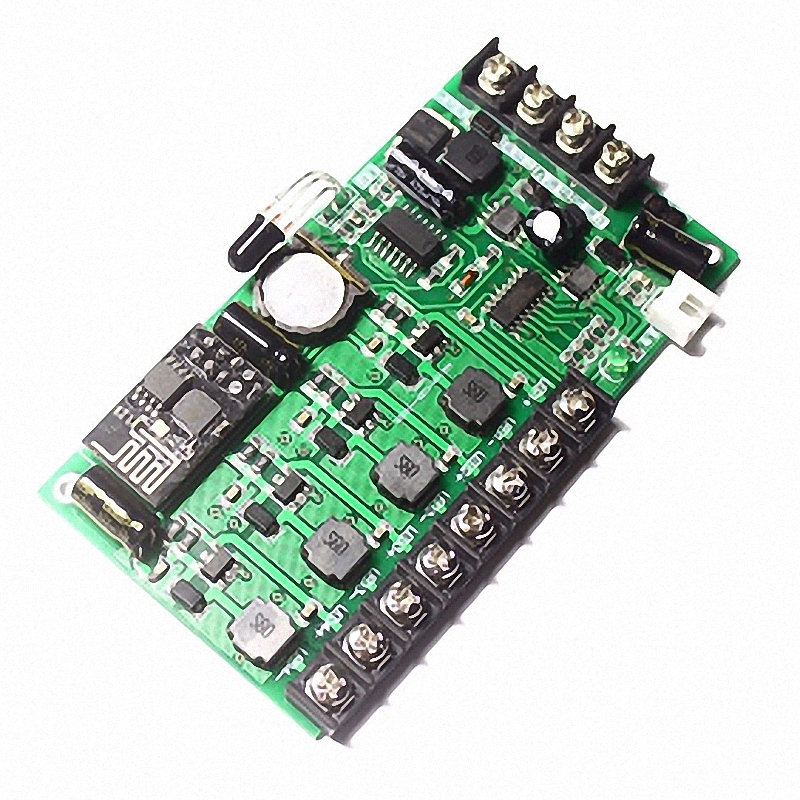

l  1 Wifi Dimmer module

l  4 channels constant voltage power module.

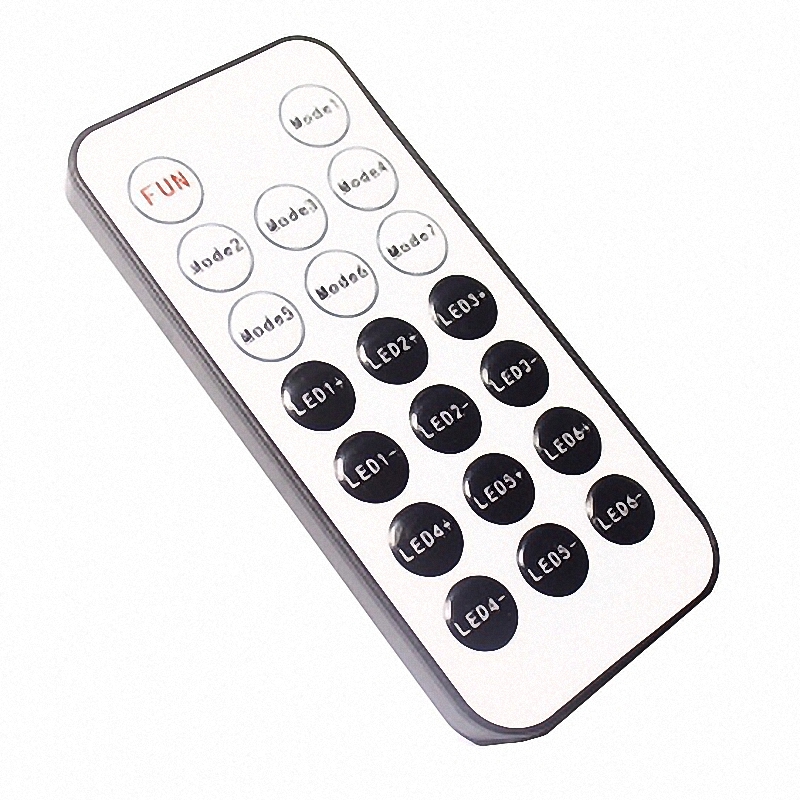

l  1 IR remote controller(optional)

Features:

l  User Friendly Set up/Control App for PC, iOS as well as android smartphone

l  1 channel power input terminal, 4 channels Light source Terminal. No necessary soldering. All wires can be connected by terminal screws.

l  Module with LED Status Indicator to determine if module work properly

l  Build in with High precision time chip, High performance processing chip and self-restoring fuse to make sure stable working.

l  All input and output added isolation protection according to the industrial design, suitable for DIY beginner as well as Tech pro.

l  Manuel / Pre-set Mode selectable for IR remoter (optional). You can either choose pre-settled Sunrise/Sunset mode or change brightness of each channel separately.

Parameters:

l  Working voltage:9-30V (12V or 24V for most common LED strips on market)

l  Dimming Frequency: up to 1280Hz

l  Dimension: 86.4*62.6*8.9

DIMFree LED Controller Selection Table
