DIMFree-W6I 6 Channel LED Sunrise/Sunset Programmable Time Dimmer Controller WiFi Android Control

DIMFree-W6I nuse W8I APP.

Please down load iphone app from here or scan the picture bellow:

iOS APP for single Dimmer control: https://itunes.apple.com/cn/app/w8/id1309412395?mt=8

iOS APP for Group Dimmers control: https://itunes.apple.com/cn/app/w8gc/id1386536073?mt=8

For initial start the language is Chinese. Currently it can not detect your system language. But you can switch to English by the following steps.

Now you will see the English interface

The IR remote is not quite necessary since you can control the module with all android smartphone or iphone. You may check the optional IR remoter at your wish.

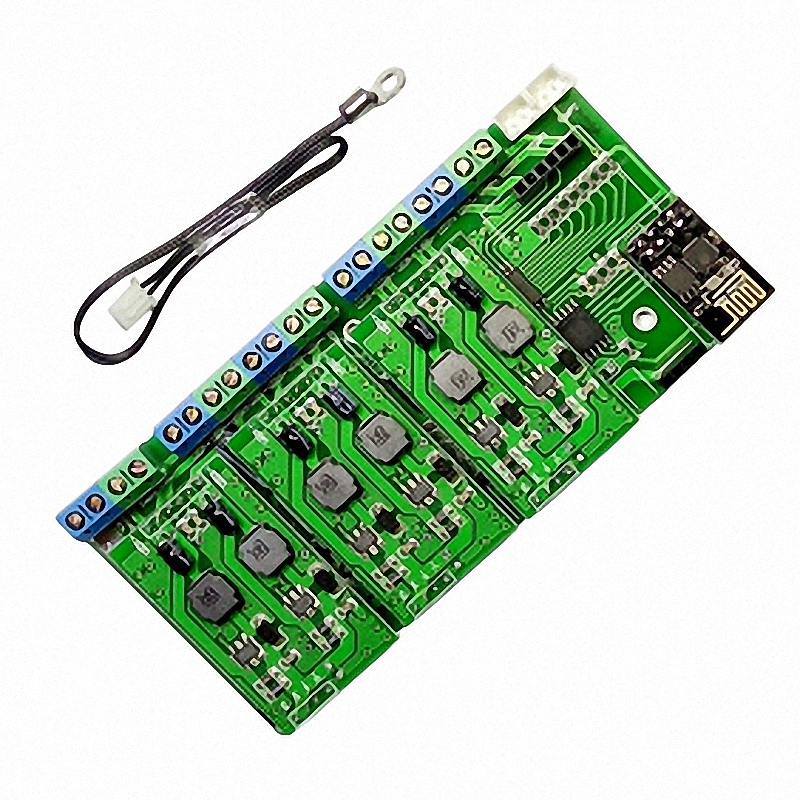

DIMFree W6I Programmable Time Dimmer Module is designed for LED Aquarium/Grow Lights by SatisLED experienced engineer to simulate the Sunrise/Sunset effects. It is Wifi Controllable and can be set up with PC, iPhone as well as Android smart phones.

The module includes:

• 1 Wifi Dimmer module
• 6 channels constant current power module.
• 1 Fan Power module (12V, 8Watt at max)
• 1 Temperature Sensor module

Features:

• User Friendly Set up/Control App for PC, iOS as well as android smartphone
• 1 channel power input terminal, 6 channels Light source Terminal. No necessary soldering. All wires can be connected by terminal screws.
• Build in with High precision time chip, High performance processing chip and self-restoring fuse to make sure stable working.
• All input and output added isolation protection according to the industrial design, suitable for DIY beginner as well as Tech pro.

Parameters:

• Working voltage:15-36V
• Fan connection: 12V 8Watt at max
• Dimming Frequency: up to 1280Hz
• Dimension: 98*64*16.8mm
• Temperature sensor cable length: 15cm
