D1I Two Channel 350/700mA Constant Current Driver for DIMFree
Categories :DIMFree Programmable Controller

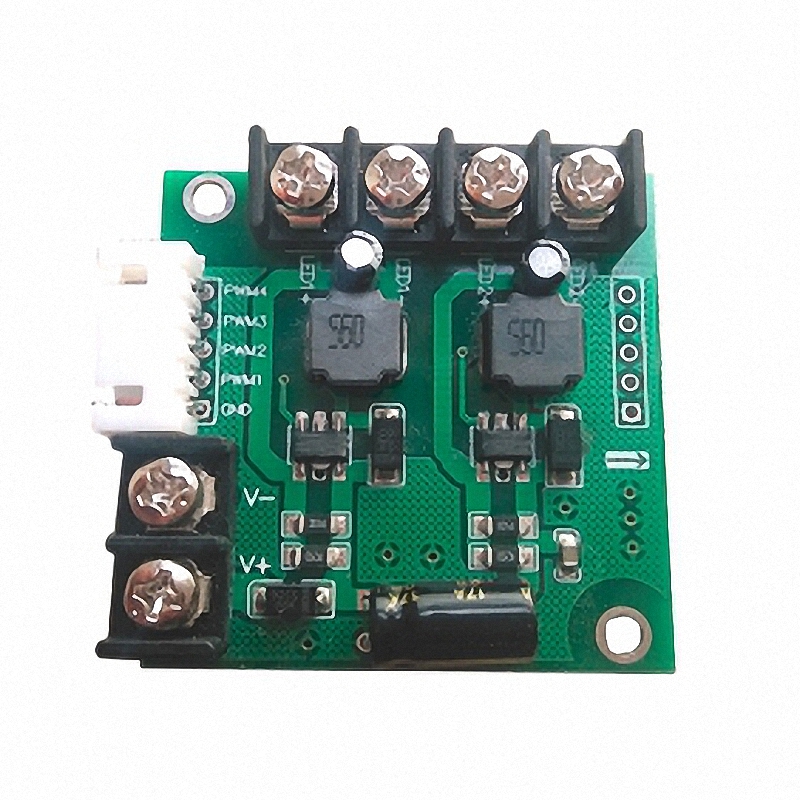

D1I Driver is made with two channels 350mA or 700mA constant current driver. With 36V switch Power supply input, it can driver 10 pcs 3W LED at most for each channel(3 to 10LEDs all OK). Working with the DIMFree Controller Board W6I(Mini) and W8B
And we have customer confirm that the driver works well with Arduino controller PWM signals!
The D1I Driver can plug into the DIMFree controller directly without any solding(30cm length Flexible Cable is included), Saving you a lot of time to do the wiring.
1. Q: Can I require different current output for each channel?
A: Yes, you can! You can require for example: 1 channels with 350mA output and 1 channel with 700mA. And then leave a message for the customization request when checkout. For customization order, it may take longer to diliver.
|350mA or 700mA
