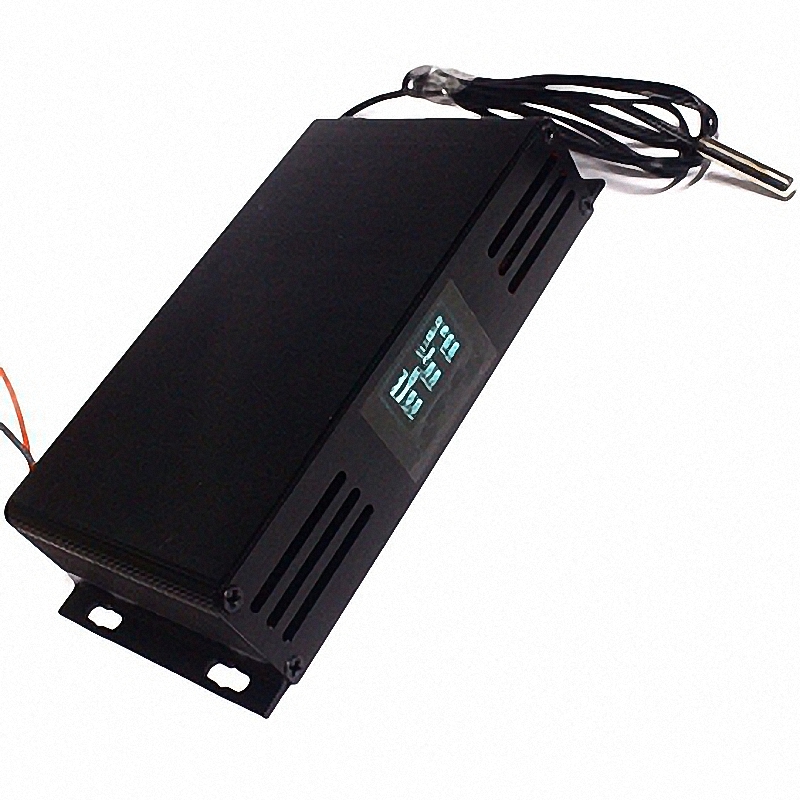

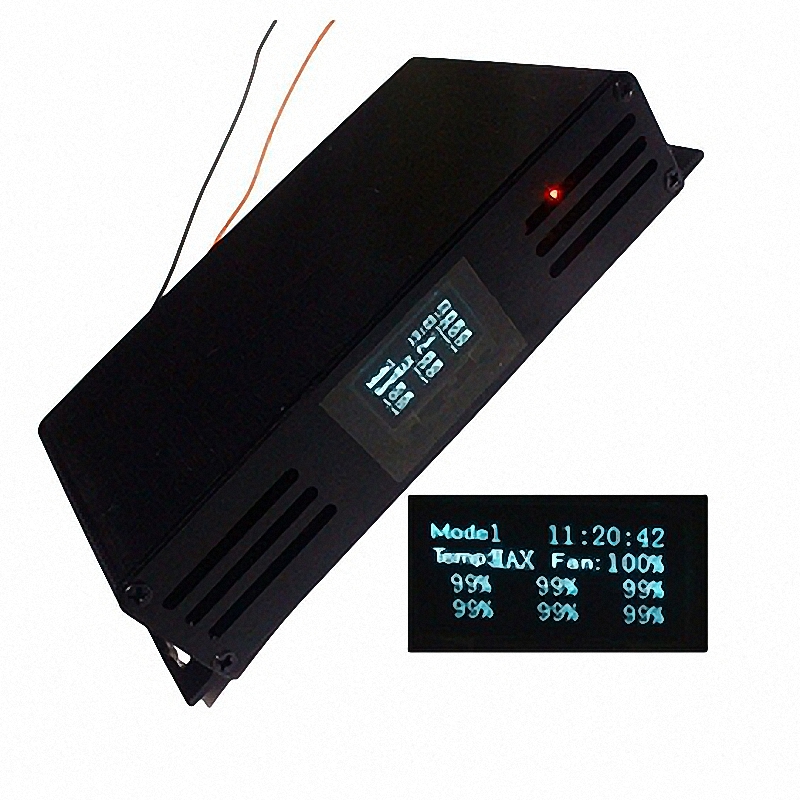

DIMFree-W8S 8 Channel LED Sunrise/Sunset Programmable Time Dimmer Controller WiFi Android Control

Description:

DIMFree-W8S is same with W8 in hardware but with different MCU preloaded software. The major difference is that W8 use 24 fixed hours sunrise/sunset setting while W8S use 16sets time slots which can be adjusted or simulate sunrise/sunset within a shorter time.

The module includes(All assembled):

l  1 Wifi Dimmer module with 8 channels PWM signal output

l  8 channels constant current power module.

l  1 Fan Power module (Multi fans in parallel is supported 12V, 24Watt at max)

l  1 OLED display

l  2 Temperature Sensor module(Cable length: 96cm)

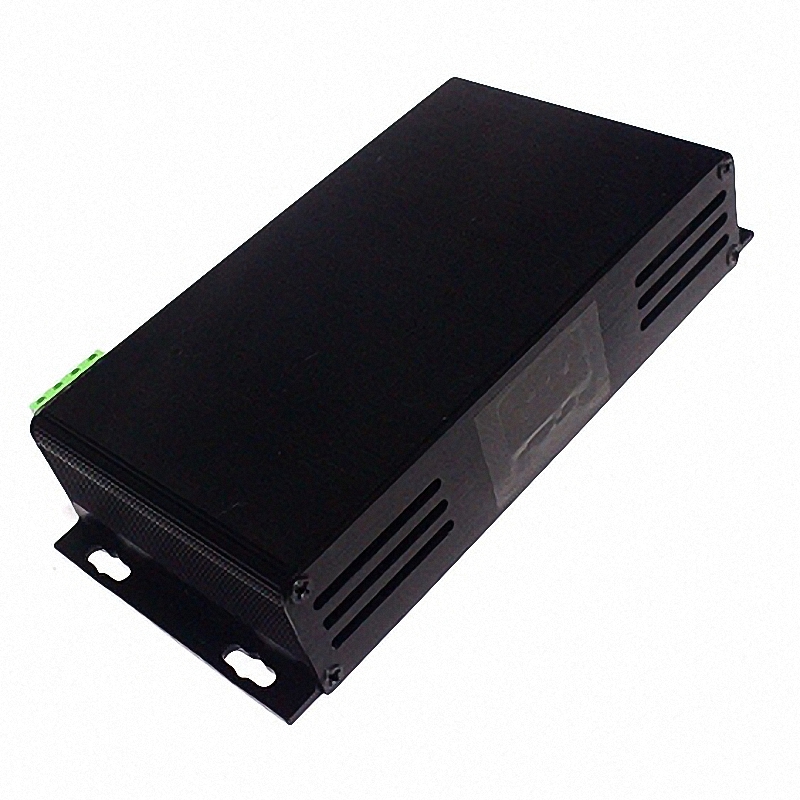

l  1 decent black aluminum enclosure

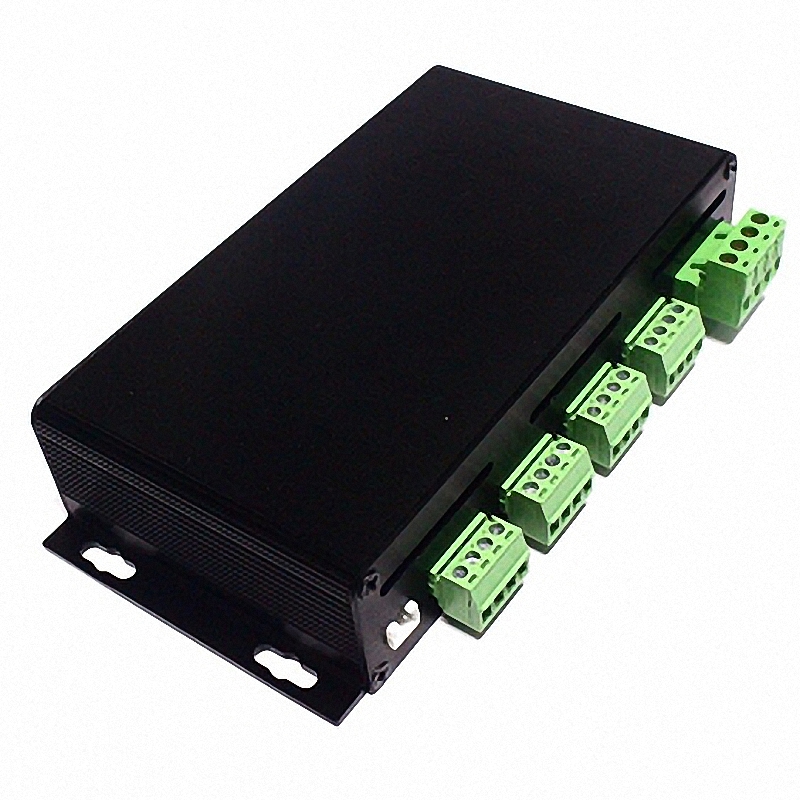

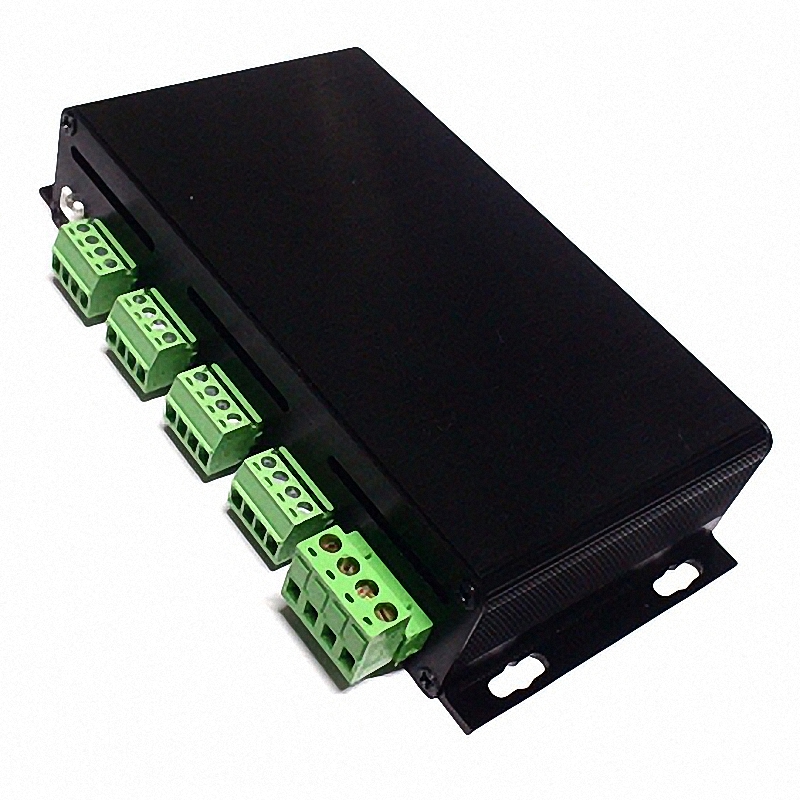

l  All terminals for power, LED, Fan, Temp sensor easy connection.

Features:

l  User Friendly Set up/Control App for PC, iOS as well as android smartphone

l  1 channel power input terminal, 8 channels Light source Terminal. No necessary soldering. All wires can be connected by terminal screws.

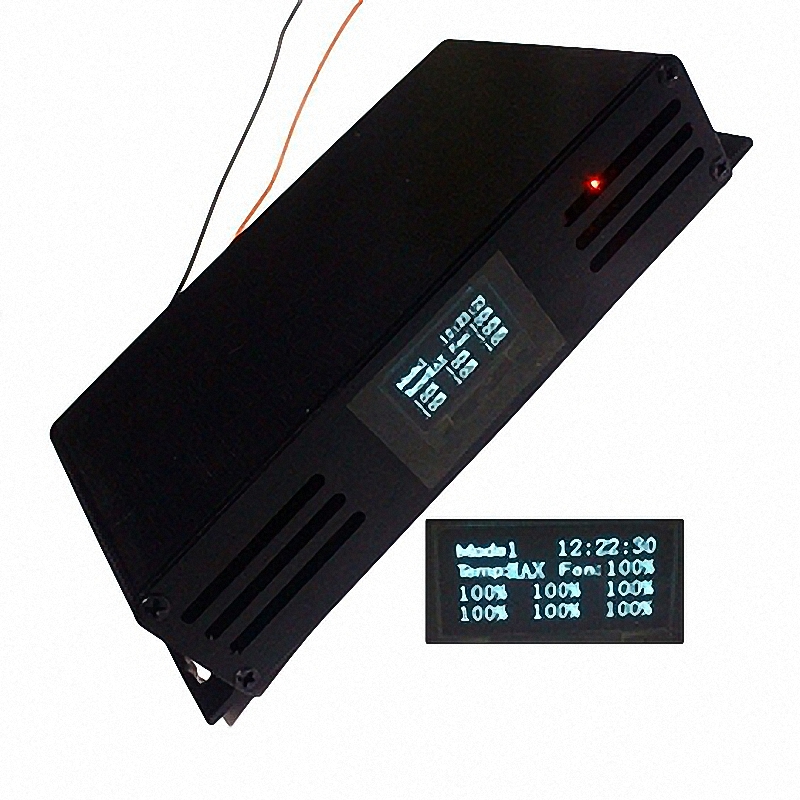

l  Module with OLED display to show working status elegantly.

l  Build in with High precision time chip, High performance processing chip and self-restoring fuse to make sure stable working.

l  All input and output added isolation protection according to the industrial design, suitable for DIY beginner as well as Tech pro.

Parameters:

l  Working voltage:15-36V

l  Fan connection: 12V 24Watt at max, Multi fans can be connect in parallel

l  Dimming Frequency: up to 1280Hz

l  Dimension: 137*76*33mm

l  Temperature sensor cable length: 96cm

The Most Powerful LED controller on the market! Easy connection and plug to go!
