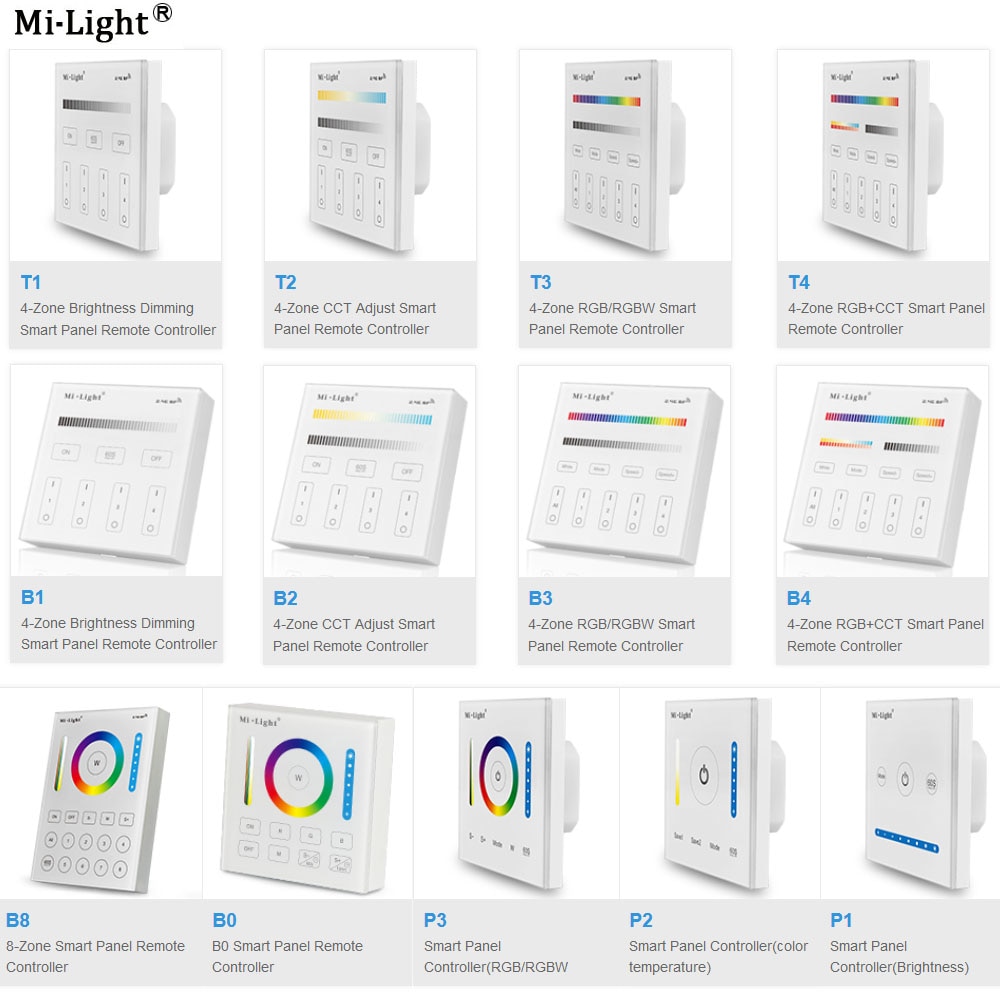

Milight T1/T2/T3/T4/B0/B1/B2/B3/B4/B8 LED Smart Panel Remote Strip Light Controller

https://www.satisled.com/web/image/product.template/3639/image_1920?unique=fb4d6cf
(0 review)

18.10 18.1 USD 18.10

¥ 129.80

Not Available For Sale


  • Part Number

This combination does not exist.


Categories :
Mi-Light Series
SKU :
1920369
Share :
100% original guarantee
Return within 30days
Worldwide Fast delivery

Product Name: B0 Smart Panel Remote Controller
Model No.: B0
Working Temperature: -20 -60℃
Voltage: 3V(2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 20uA
Control Distance: 30m
Size: 86*20*86mm

NW:0.185KG

B0-xq001B0-xq003B0-xq004B0-xq005B0-xq006B0-xq007B0-xq008B0-xq009B0-xq010B0-xq011

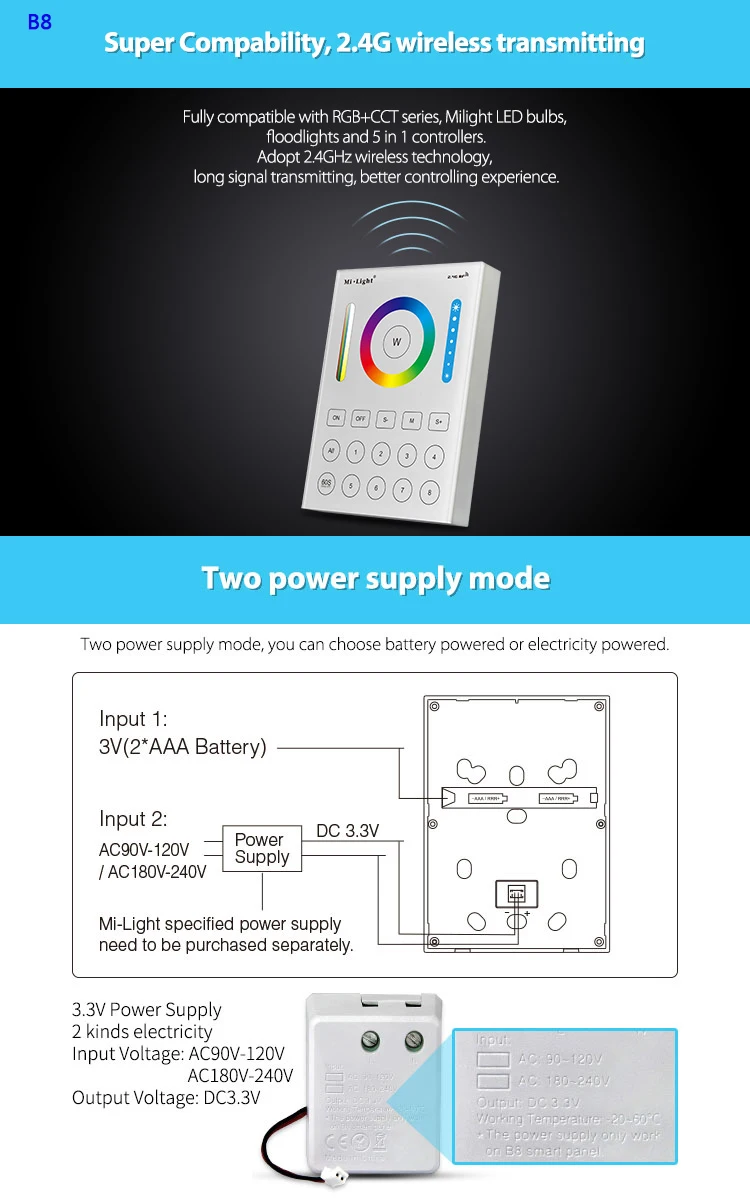

Product Name: 8-Zone Smart Panel Remote Controller
Model No.: B8
Working Temperature: -20 -60℃
Voltage: 3V(2*AAA Battery) / DC3.3V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 30A
Panel Size: 106*146*20mm

10



Note: DC3.3V power only work on milight B8 smart panel controller

please don't use for the other products .

Technical Parameters:

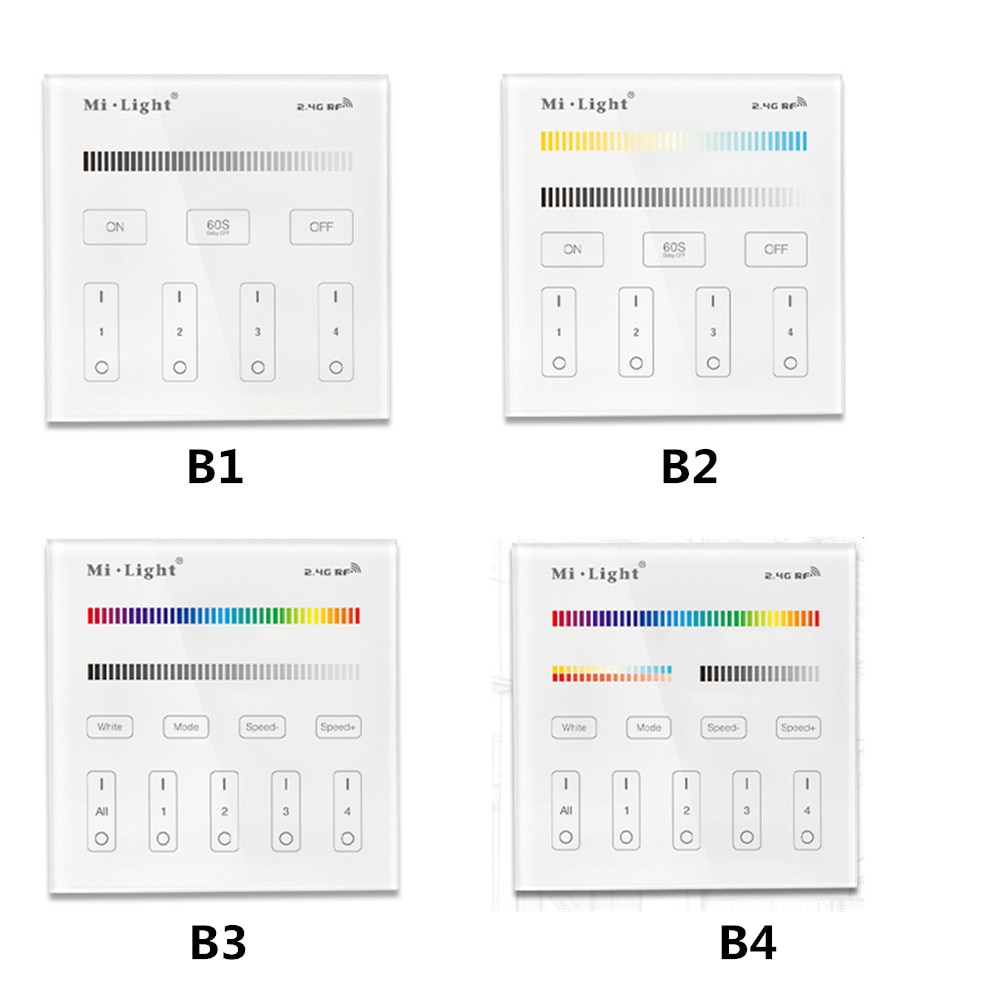

Product Name: B1 4-zone Brightness Dimmer/B2 4-zone CCT/B3 4-zone RGB/RGBW/B4 4-zone RGB+CCT
Remote Controller
Model No: B1 B2 B3 B4
Working Temperature: -20 -60°
Voltage: 3V(2*AAA Battery) Not included
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Panel Size: 86*86mm

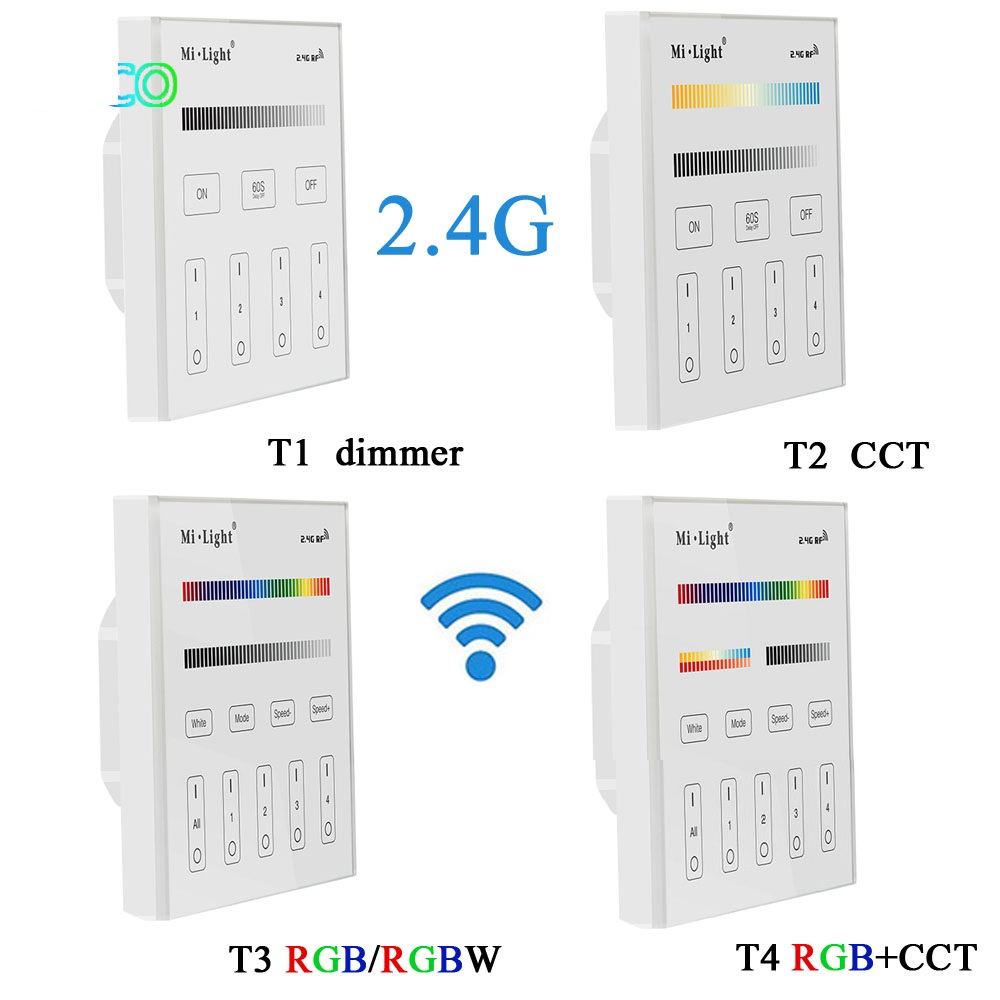

Product Name: T1 4-zone Brightness Dimmer/T2 4-zone CCT/T3 4-zone RGB/RGBW/T4 4-zone RGB+CCT
Panel Remote Controller
Model No: T1 T2 T3 T4
Voltage: 3V(2*AAA Battery) Not included
Working Temperature: -20 -60°
Voltage: AC180~240V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
 Panel Size: 86*86mm

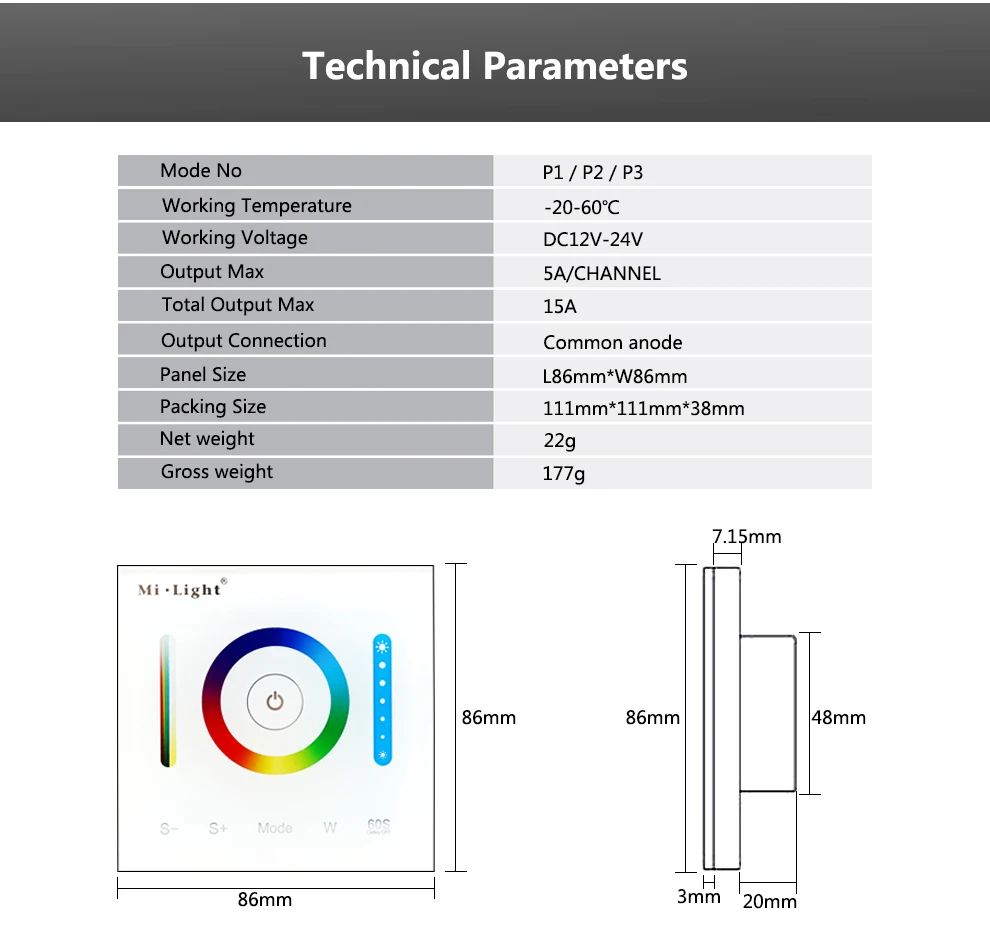

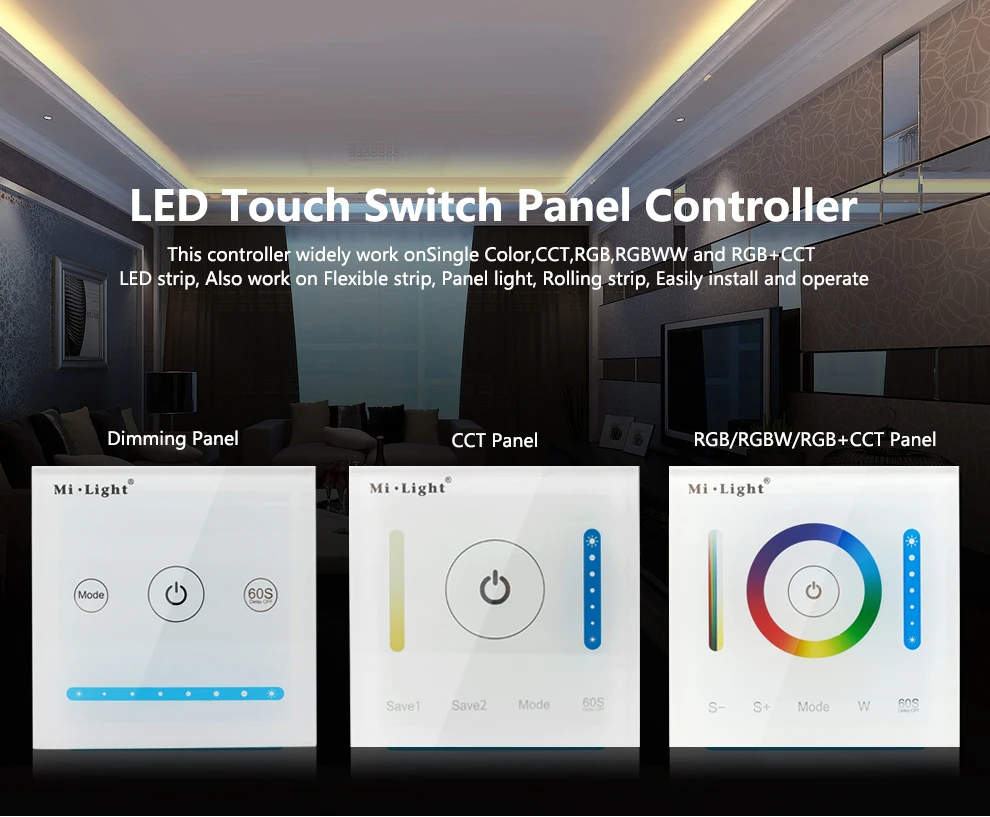

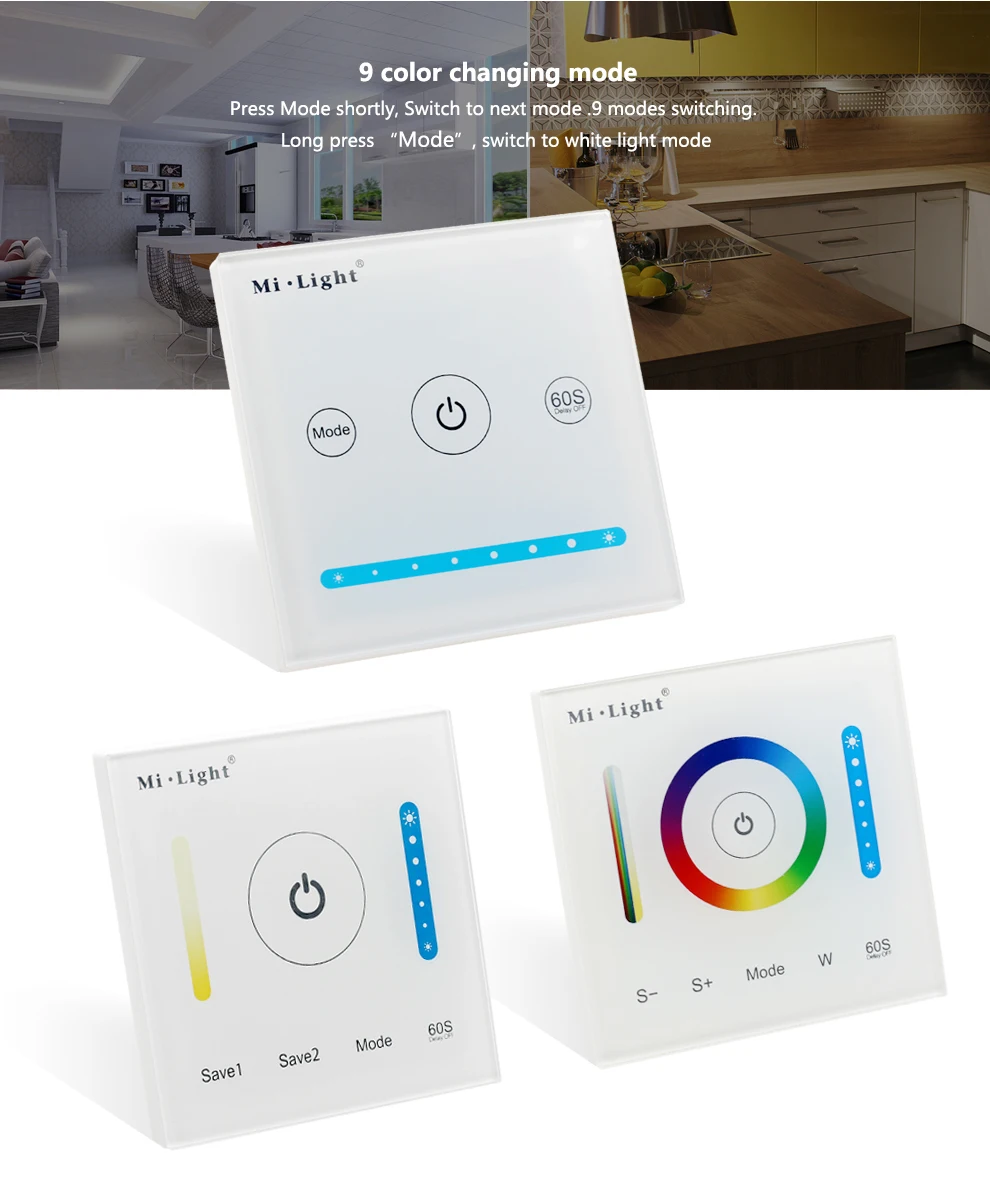

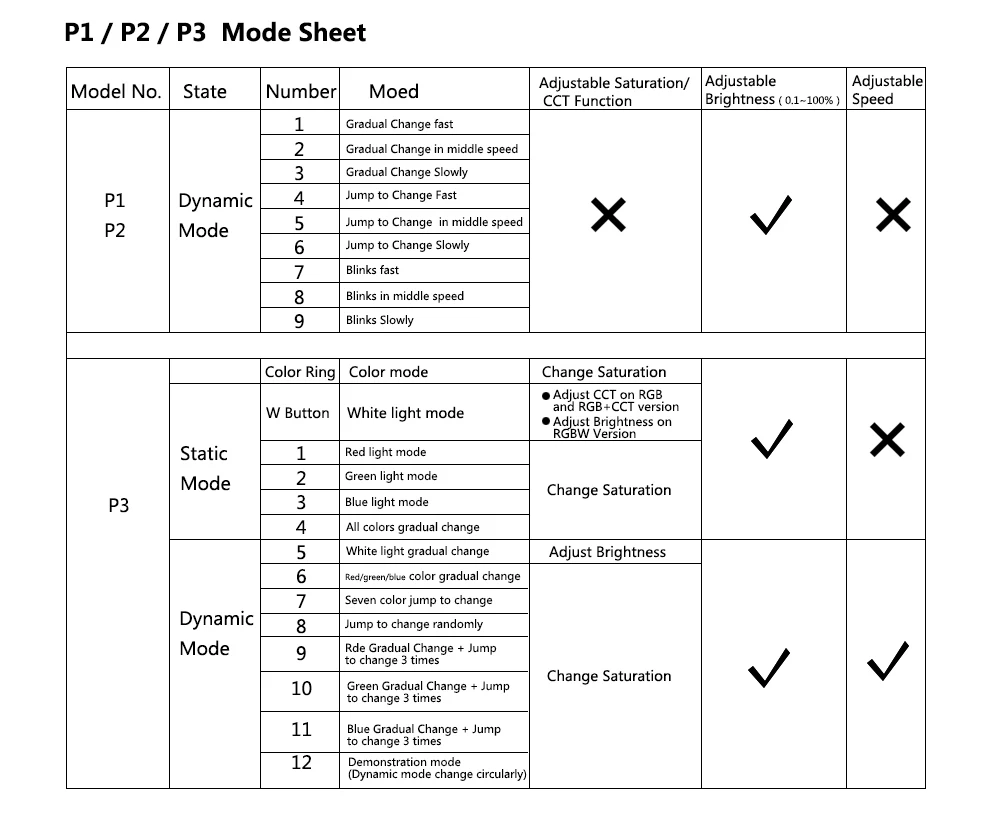

Parameters

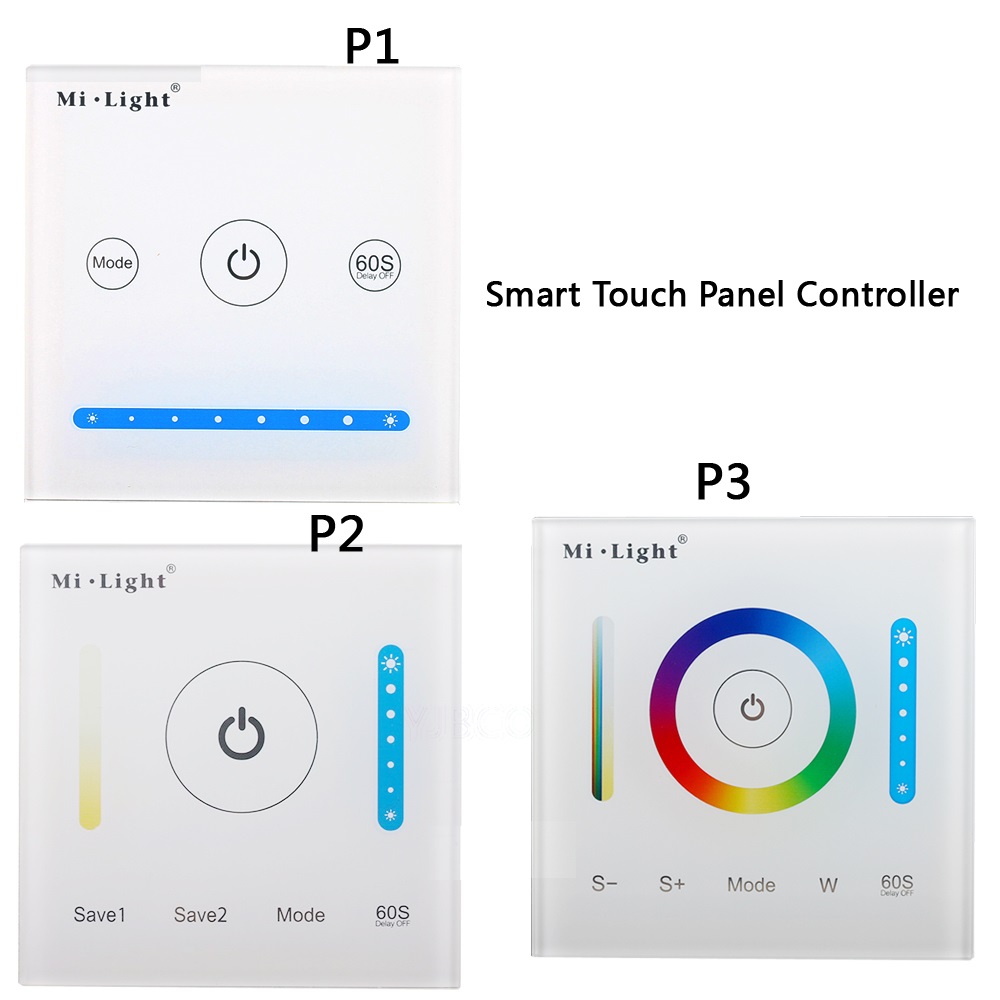

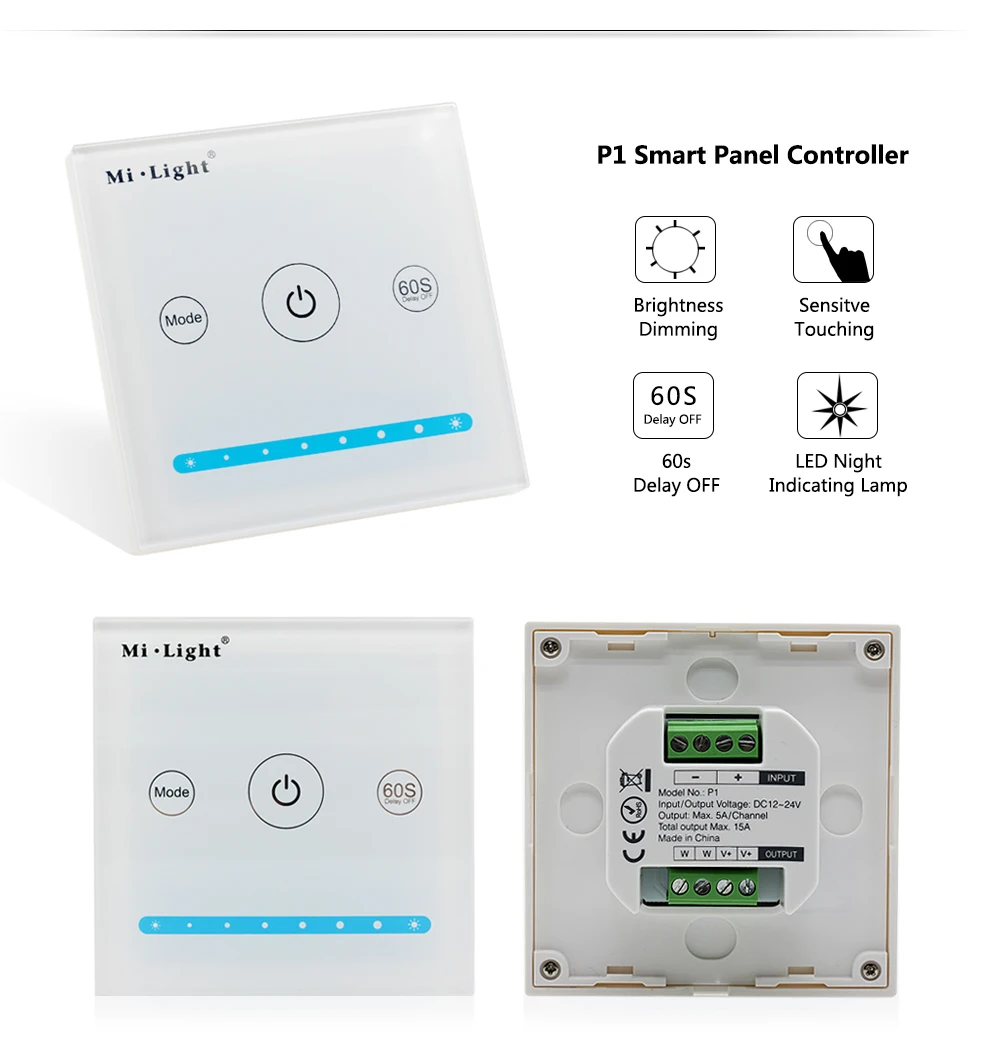

Model No:P1/P2/P3
DIM:Brightness Dimming Touch Panel Controller
CCT:Color Temperature Panel Controller

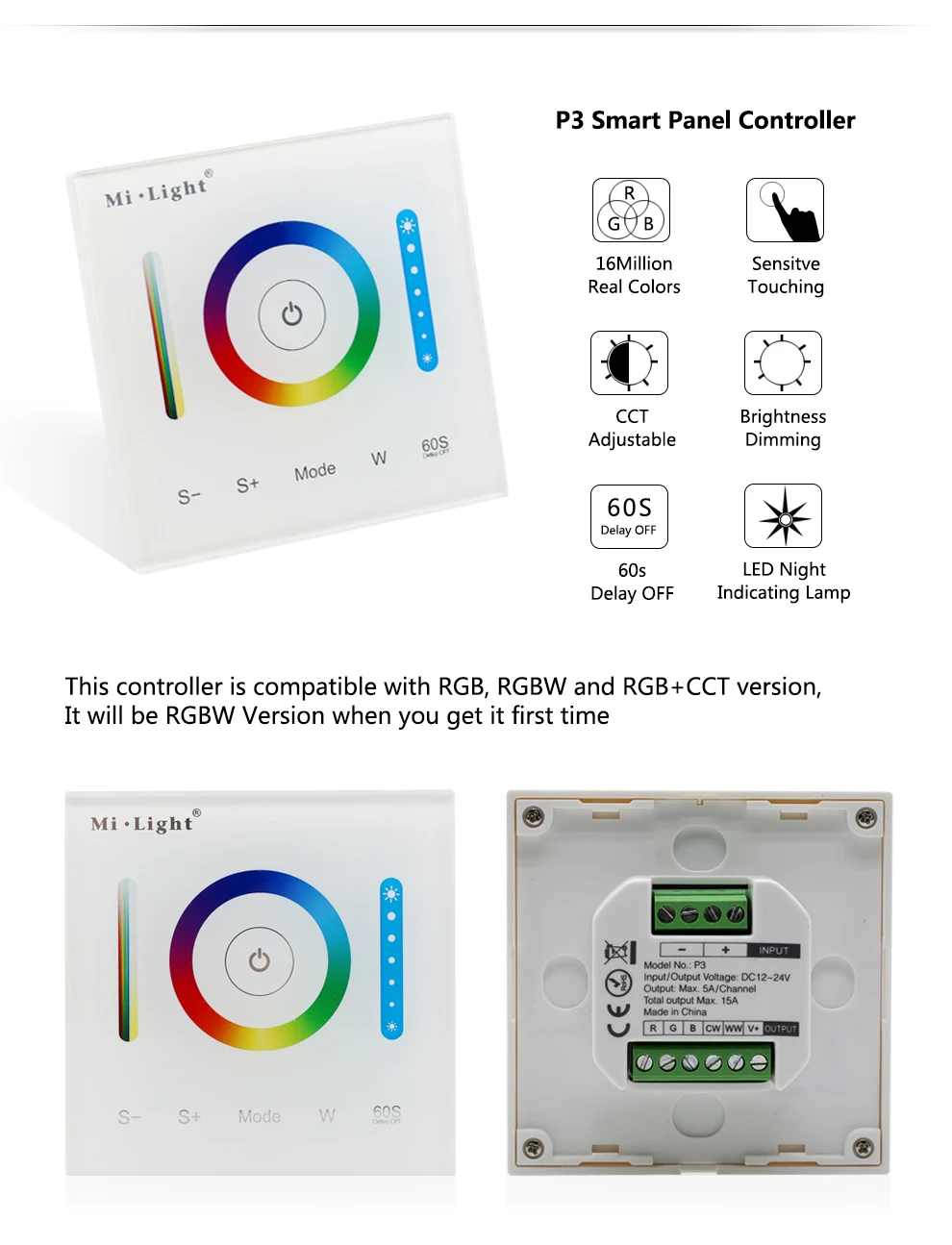

RGBW:RGB RGBW RGB+CCT Panel Controller
Working Temperature:-20-60C
Working Voltage:DC12-24V
Total Output Max:15A
Panel Size:L86*W86mm
Output Max:5A/Channel
Output Connection:Common anode
Weight:177g

 Attention:

1.Please check the input voltage of the constant voltage power supply is in accordance with the controller,and please check the connection of both the cathode and anode.

 2.The working voltage is DC12-24V,the controller will be broken if the vlotage is higher than 12-24V.

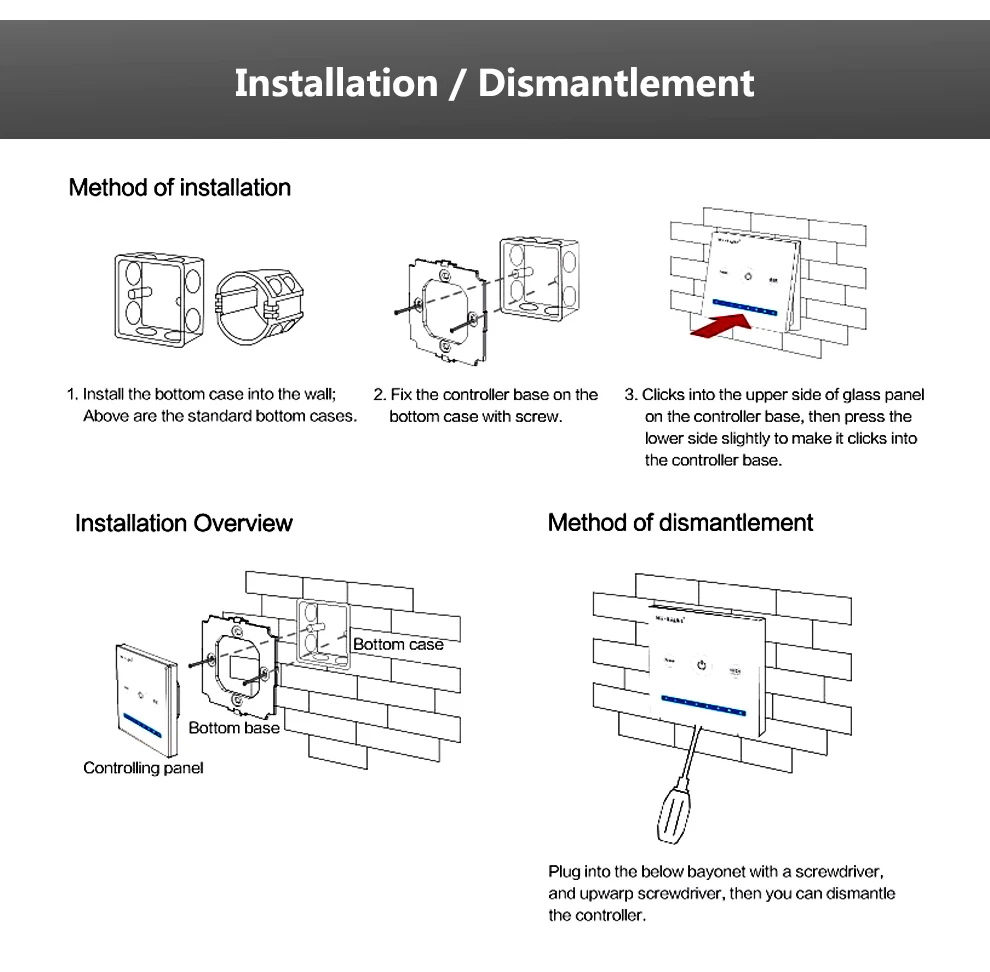

 3.When installation,pls handle with care to avoid the broken of the glass panel.





_01_02_03_04_05_06_07_08

_09_10_11_12






Part Number P1 or P2 or P3 or B0 or B1 or B2 or B3 or B4 or B8 or T1 or T2 or T3 or T4
