Summary:

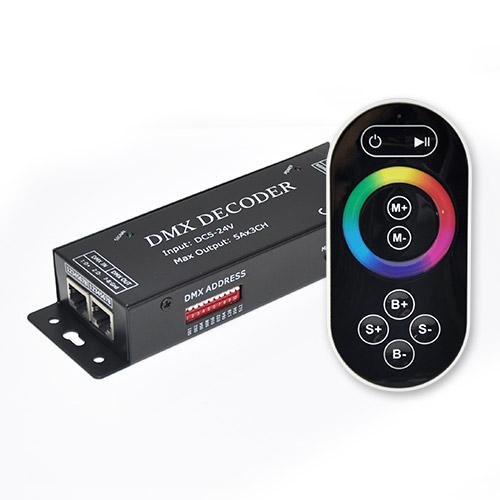

The DMX decoder adopts the advanced micro control unit, it receives standard DMX-512 digital control signal that is widely used in the and transform it into PWM signal to drive LED; the port of DMX signal has lightning protection measures, while the load output has over-current protection circuit; You could connect the DMX decoder with DMX digital console to achieve dimming or various changes in procedures. Not connected with DMX console, you can choose select the built-in 11 kinds of default patterns through the wireless remote control.
Specifications:
Supply voltage | DC5V-24V |
Dimming frequency | 800Hz |
Connection mode | common anode |
Output | 3 channel |
Max output power | 5V<75 W, 12V<180W, 24V<360w<><360w<> |
Output current | <5a (<5aeach channel) |
External dimension | 175*58*27mm |
Package size | 180*58*55mm |
Net weight & Gross weight | 300g &350kg |
